Safety Fence Holders
Filter products
–

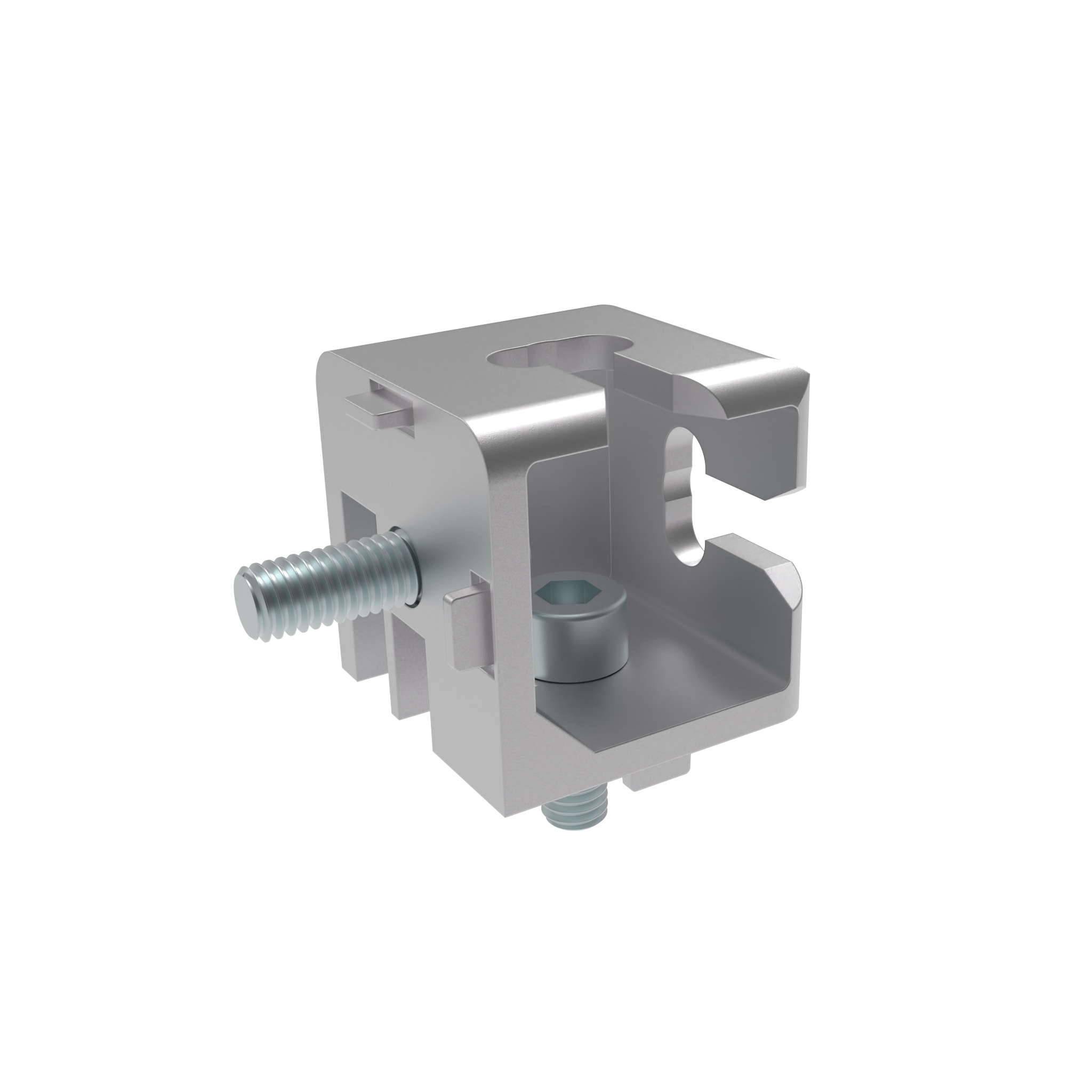

Clamp Profile Connector 30 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
6
Color:Clamp profile connector: Alu colorDelivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and lockedMaterial:Clamp profile connector: Zinc die-cast Screws: SteelSet:1 clamp profile connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M6 x 16Surface:Clamp profile connector: Powder coated Screws: Zinc platedTip:Compatible Mounting for Clamp Profile Connector 30 (Set) see 093XWWC301N06Zolltarifnummer:76169910990
Mounting for Clamp Profile Connector 30 (Set)
€0.00*
Profile:
I
|
Slot N (mm):
6
Delivery Countries:WorldwideDescription:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSet:Mounting, completely preassembled: 1 T-slot nut - slot 6 - M5, 1 shim DIN 9021 - 5.3, 1 nut DIN 934 - M5, 1 screw DIN 7984 - M5 x 30, 1 ball Ø 4Surface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainTip:Compatible Clamp Profile Connector 30 (Set) see 093WWC301N06S01Zolltarifnummer:73269098900
