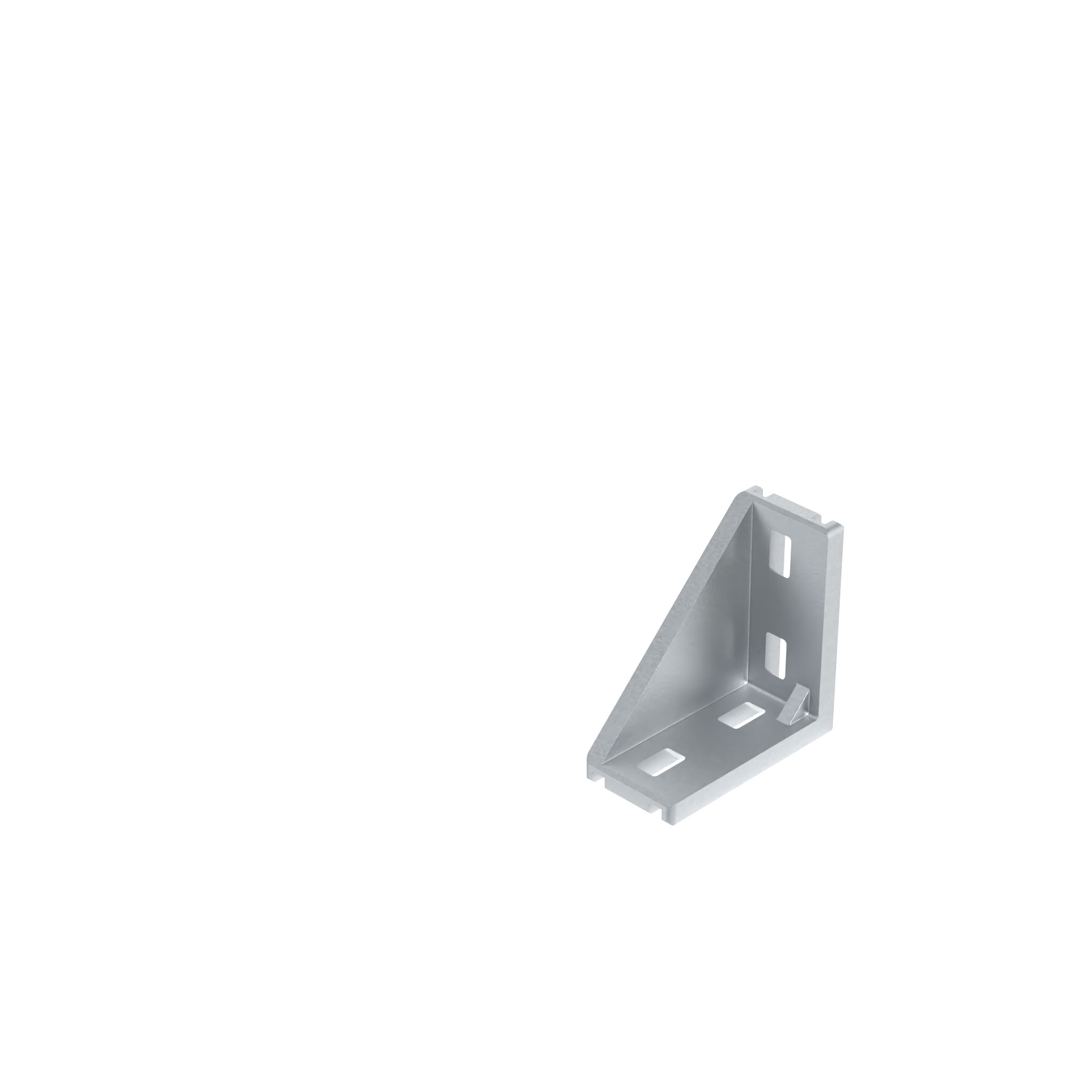

Alu Connection Angle 30 x 60
Número de producto:
093W302N08
Información sobre el producto "Alu Connection Angle 30 x 60"
Assembly Set:
4 hammer nuts - slot 8 - M6,
4 screws DIN 7984 - M6 x 14
Color:
Angle: Alu color
Países de Entrega:
En todo el mundo
Description:

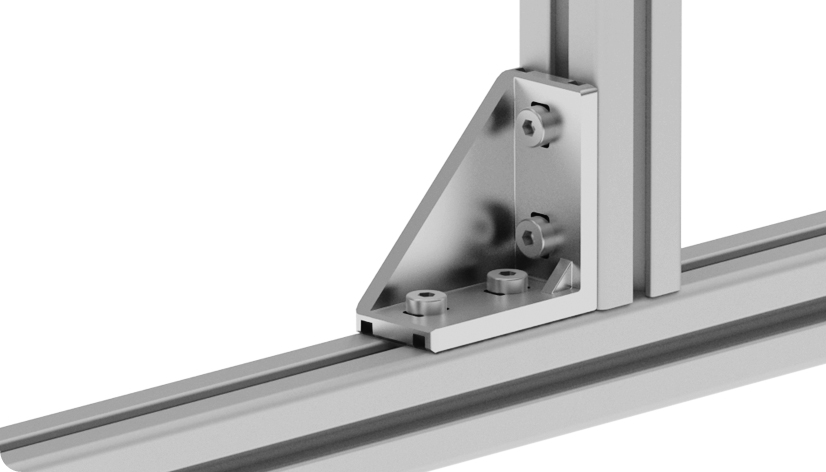

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA302
Zolltarifnummer:
76169910990
4 hammer nuts - slot 8 - M6,
4 screws DIN 7984 - M6 x 14
Color:
Angle: Alu color
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA302
Zolltarifnummer:
76169910990
(ECLASS 6.0): | 23360290 |
---|---|
(ECLASS 7.0): | 23360290 |
(ECLASS 8.0): | 23360290 |
(ECLASS 9.0): | 23360290 |
(ECLASS 10.0): | 23360290 |
(ECLASS 11.0): | 23360290 |
(ECLASS 12.0): | 23360290 |
(ECLASS 13.0): | 23360290 |
Cantidad por Paquete: | 10 piezas / 10 jconjuntos |
Model: | Aluminio fundido a presión, perfil 30 y hasta |
Peso (g): | 58.5 |
