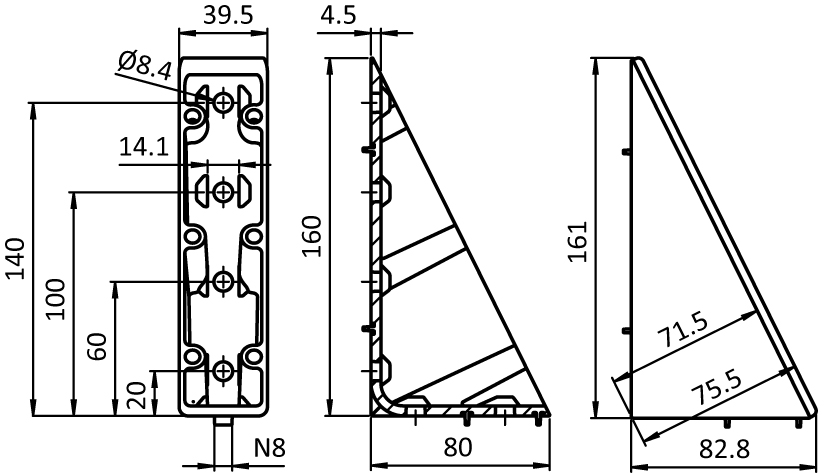

Alu Connection Angle 40 x 80 x 160 (Set)
Precio normal:
0,00 €
Número de producto:
093W408N08S01
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Alu Connection Angle 40 x 80 x 160 (Set)"
Color:
Angle: Alu color
Cover cap: Black
Países de Entrega:
En todo el mundo
Description:

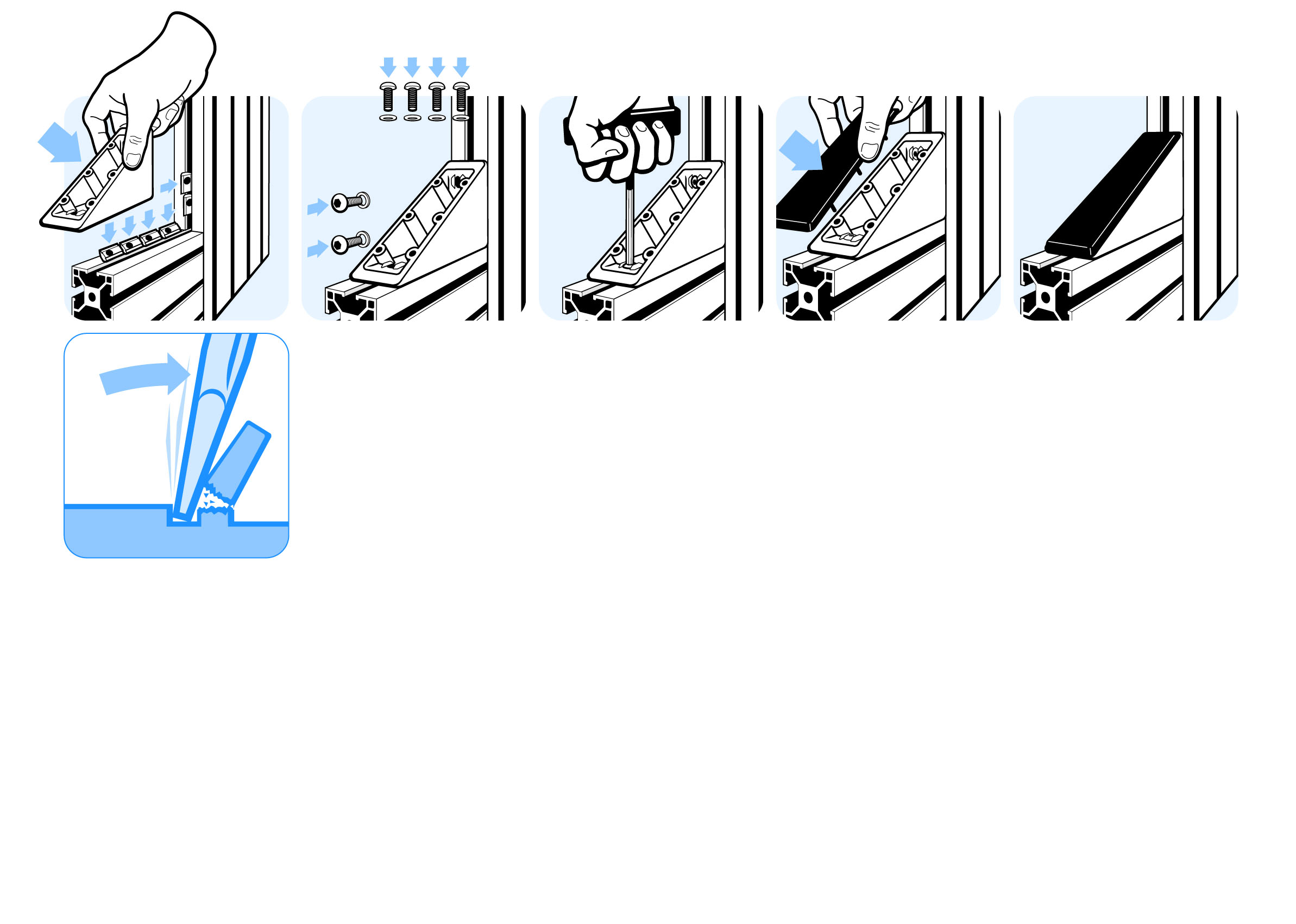

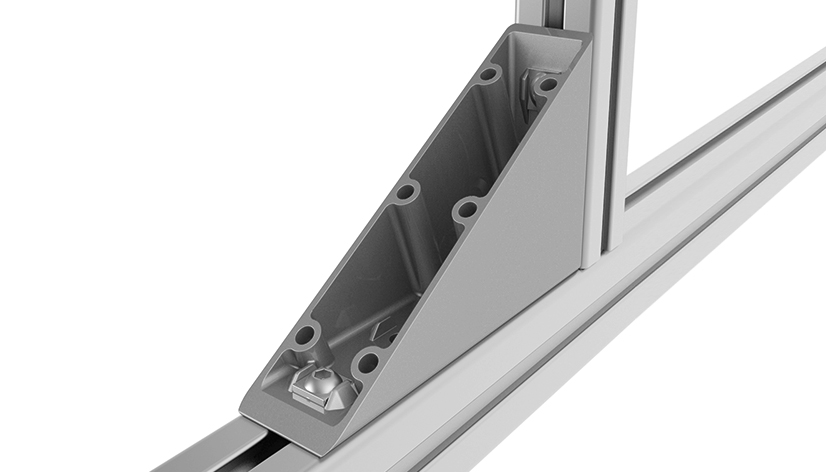

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

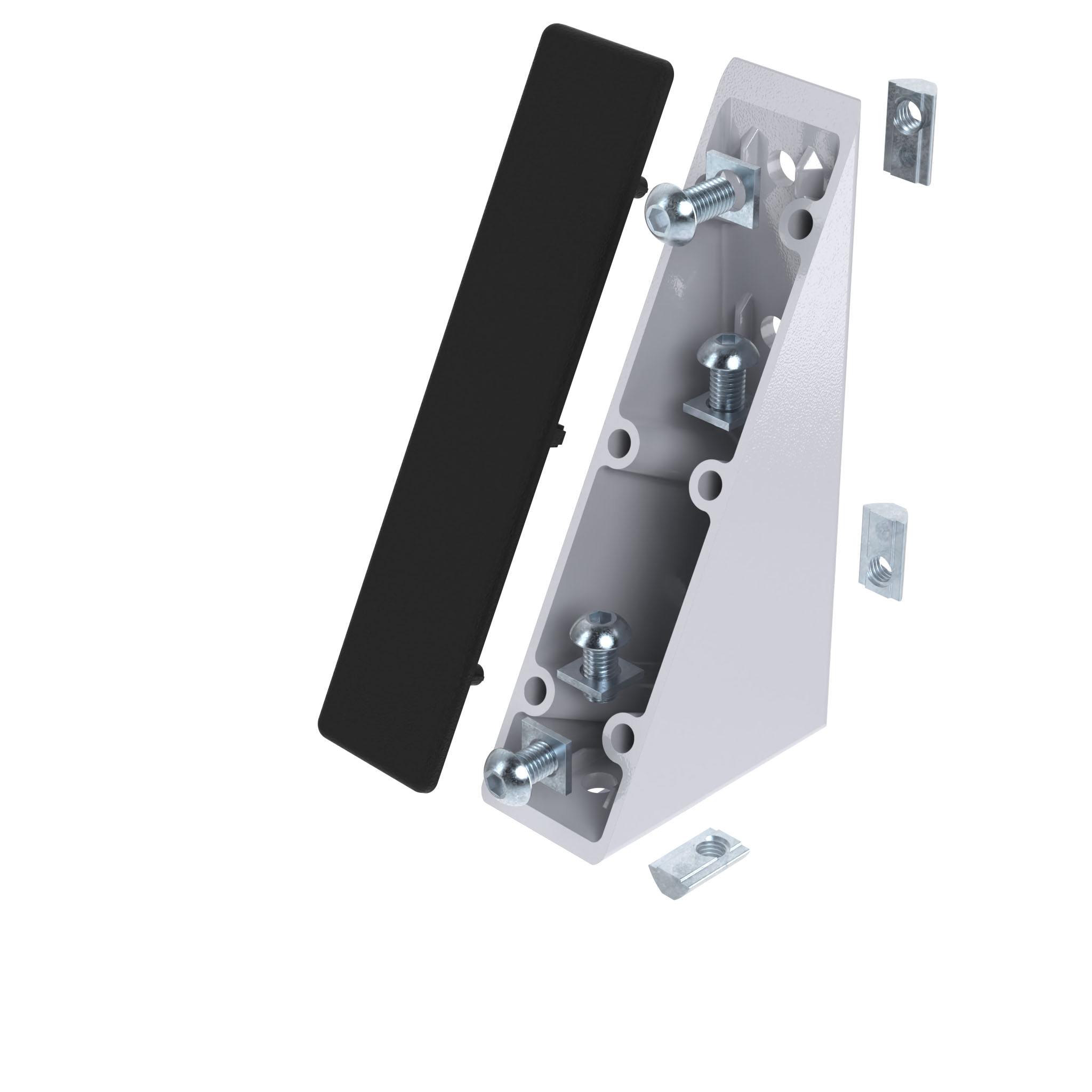

Set:
1 angle,
1 cover cap - plastic PA - black,
4 T-slot nuts - slot 8 - M8,
4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16
4 square washers
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Powder coated
Screws and T-nuts: Zinc plated
Angle: Alu color
Cover cap: Black
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel
Set:
1 angle,
1 cover cap - plastic PA - black,
4 T-slot nuts - slot 8 - M8,
4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16
4 square washers
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Powder coated
Screws and T-nuts: Zinc plated
| Cantidad por Paquete: | 10 conjuntos |
|---|---|
| Model: | Aluminio fundido a presión |
| Peso (g): | 316.0 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| Zolltarifnummer: | 76169910990 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Numero de ERP: | 143850 |
