Alu Connection Angle B45 M Length/Cross (Set)

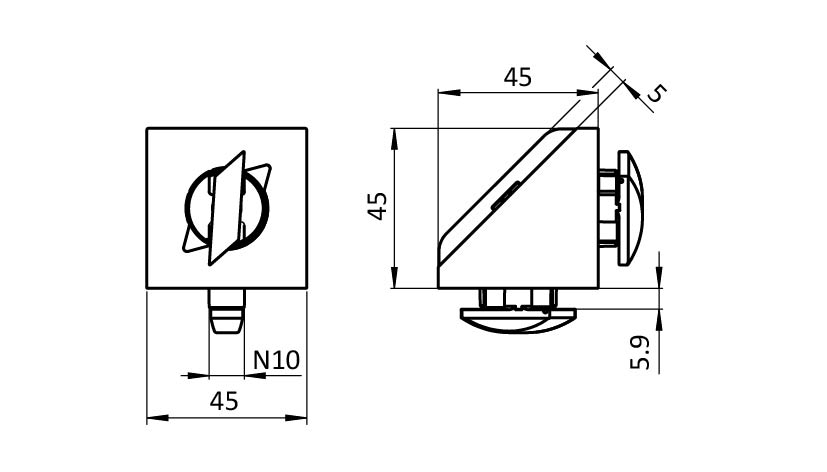

Alu Connection Angle B45 M Length/Cross (Set) – plano técnico

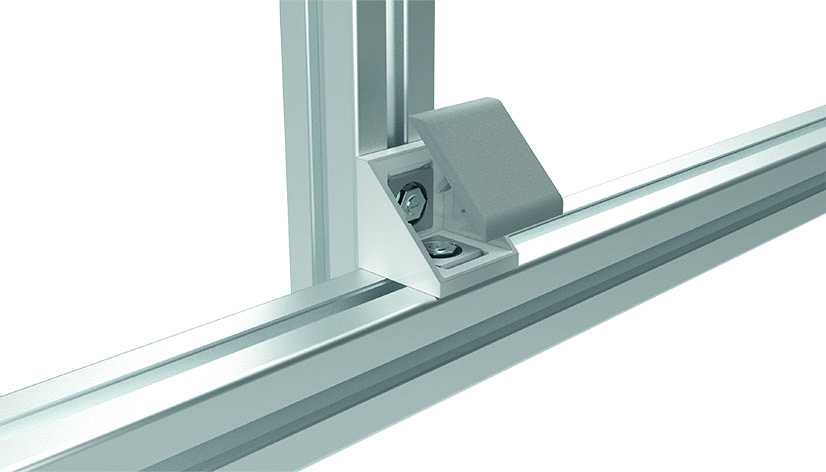

Alu Connection Angle B45 M Length/Cross (Set) – ejemplo de aplicación

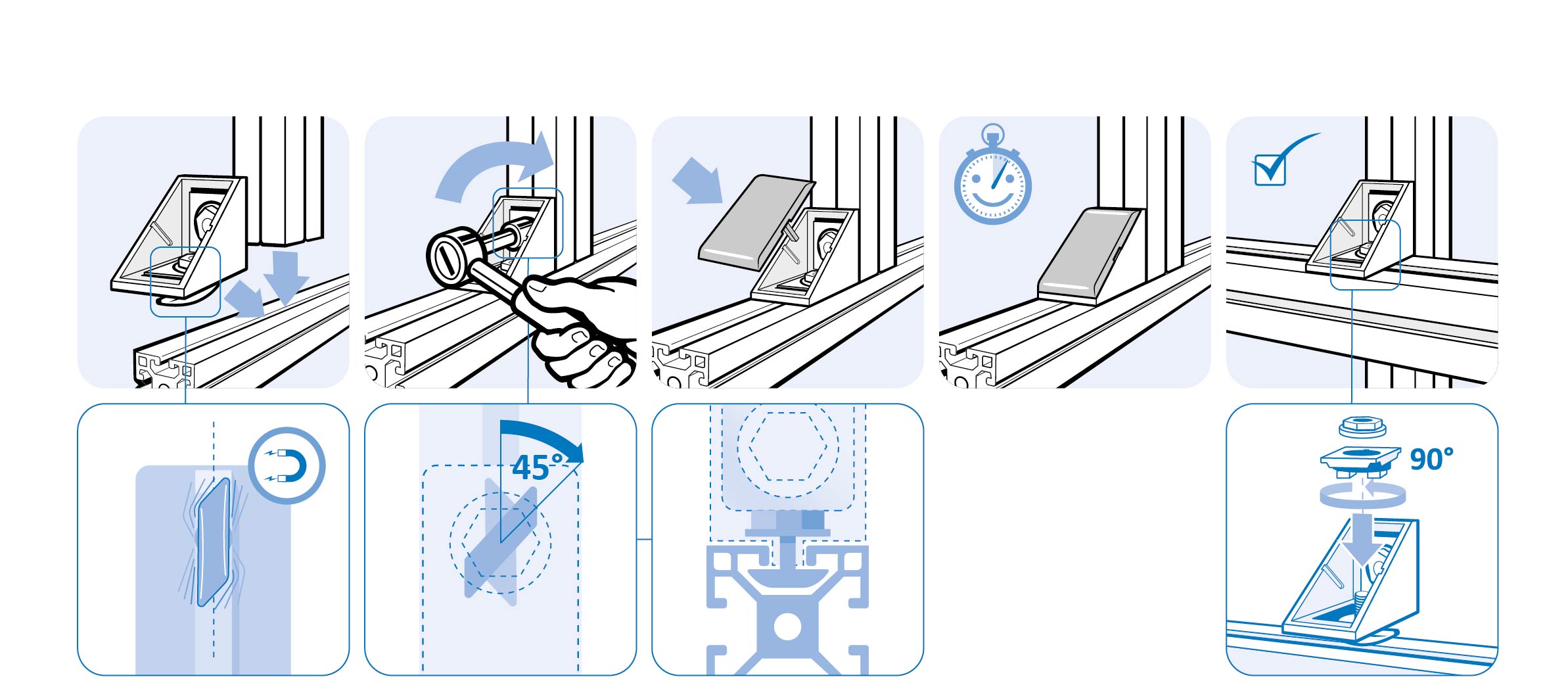

Alu Connection Angle B45 M Length/Cross (Set) – gráfico de montaje

0,00 €

Profile

B

Ranura N (mm)

10

Número de producto: 093W4510N10S01

Cantidad por paquete: 10 piezas

Descripción:
To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Cover cap: Plastic PA, glass fiber reinforced,
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Insert: Zinc die-cast # Ring: Plastic PE

Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Color:
Angle: Alu color
Cover cap: Gray≈ RAL 7004
Ring: Black

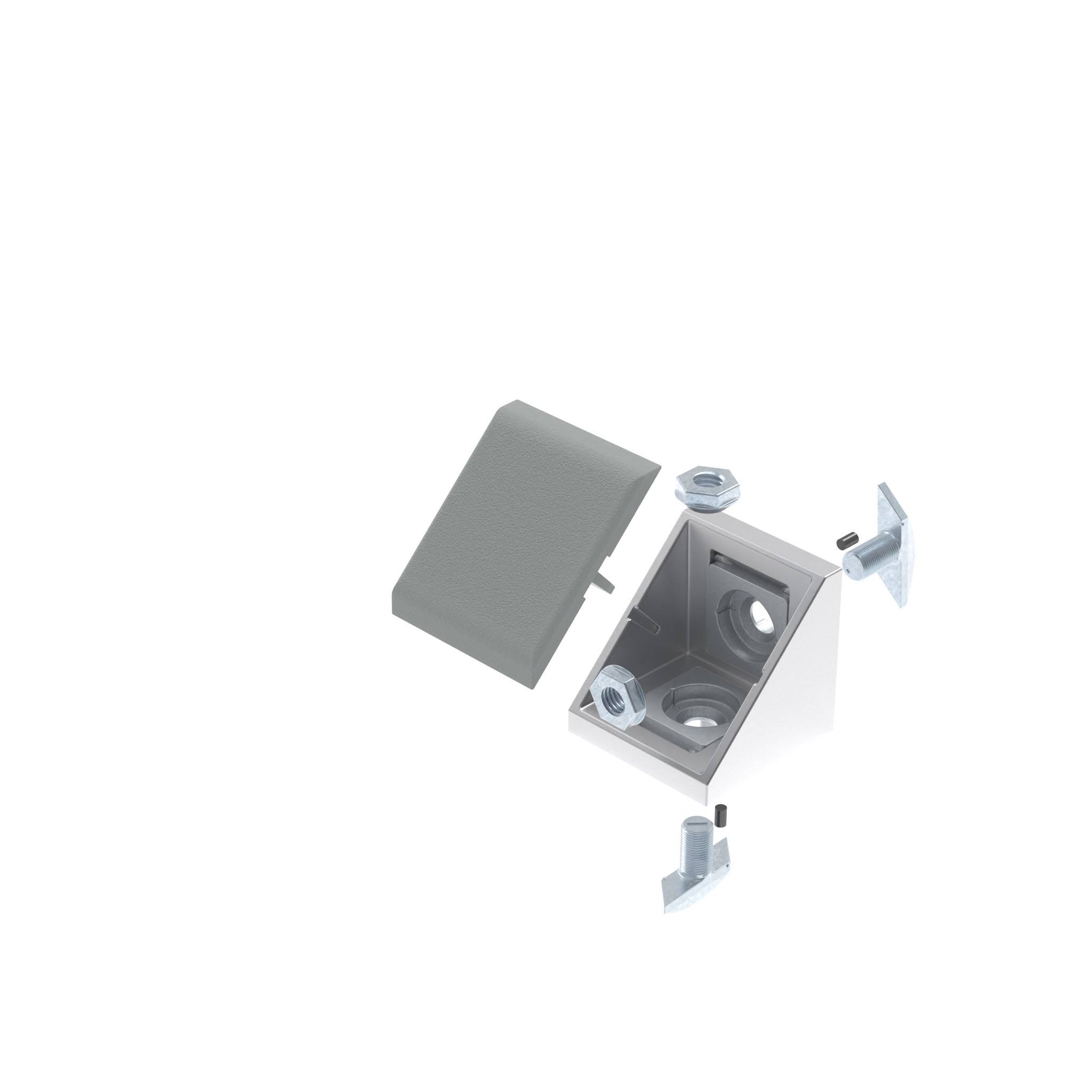

Set:
1 angle
2 magnet rhombus screws
2 countersunk nuts M8
1 cover cap

Países de Entrega:
En todo el mundo
