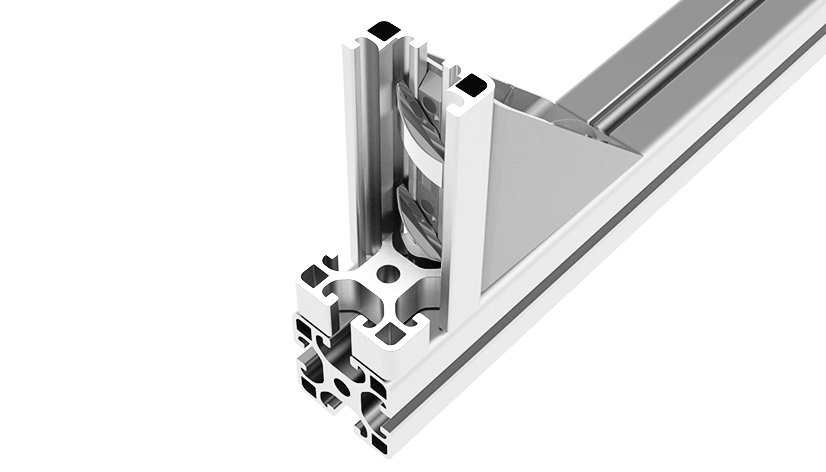

Alu Connection Angle I40 x 80 M (Set)
Número de producto:
093W809N08S01
Información sobre el producto "Alu Connection Angle I40 x 80 M (Set)"
Color:
Color aluminio
Países de Entrega:
En todo el mundo
Description:

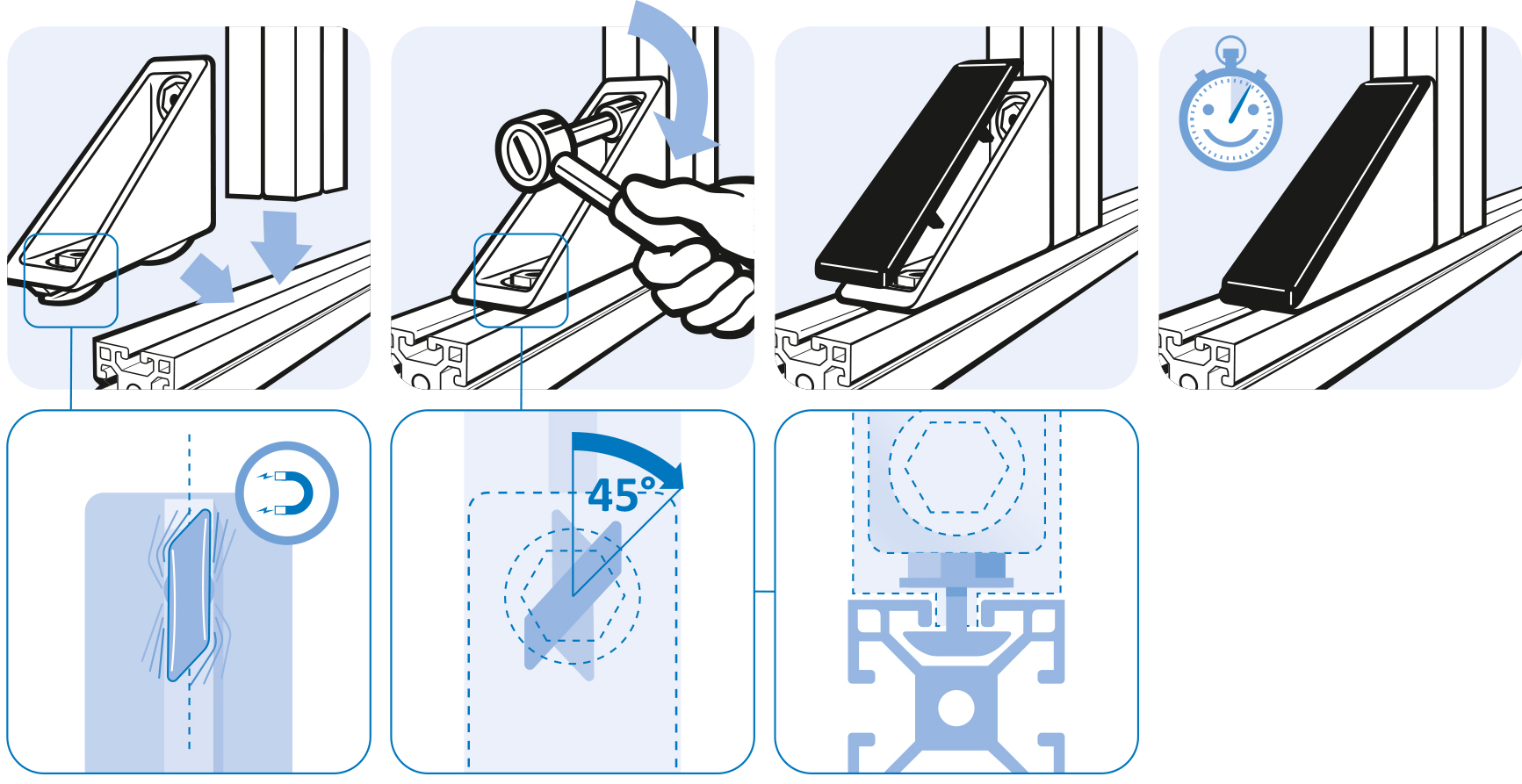

To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA809
Color aluminio
Países de Entrega:
En todo el mundo
Description:
To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Especiales:
Otras superficies, otros colores bajo pedido
Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated
Tip:
Compatible Cover Cap see 093WA809
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 piezas |
| Model: | Aluminio fundido a presión |
| Numero de ERP: | 134006 |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 197.0 |
| Zolltarifnummer: | 76169910990 |
