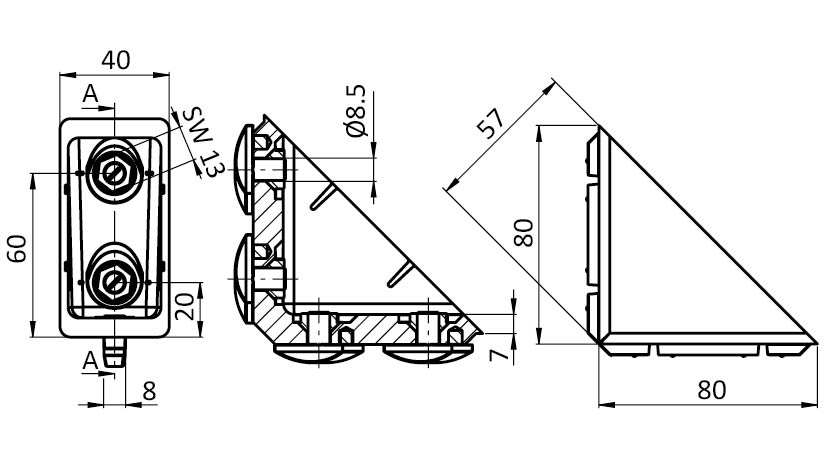

Alu Connection Angle I40 x 80 M (Set)

Información sobre el producto "Alu Connection Angle I40 x 80 M (Set)"

Color:
Color aluminio

Países de Entrega:
En todo el mundo

Description:

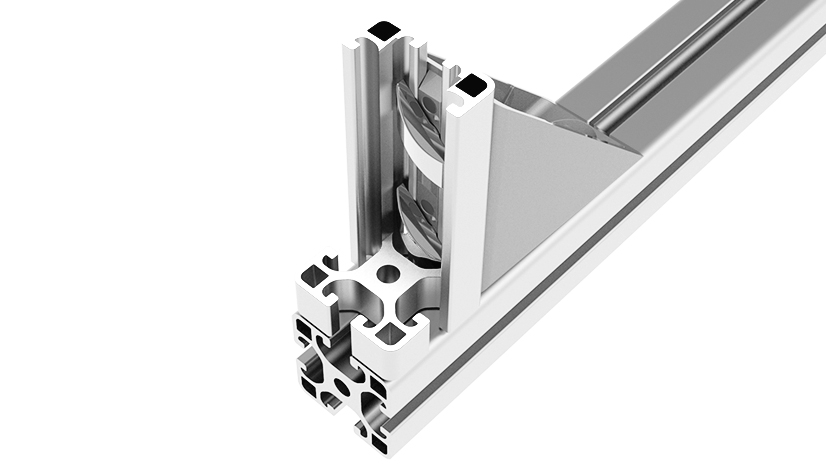

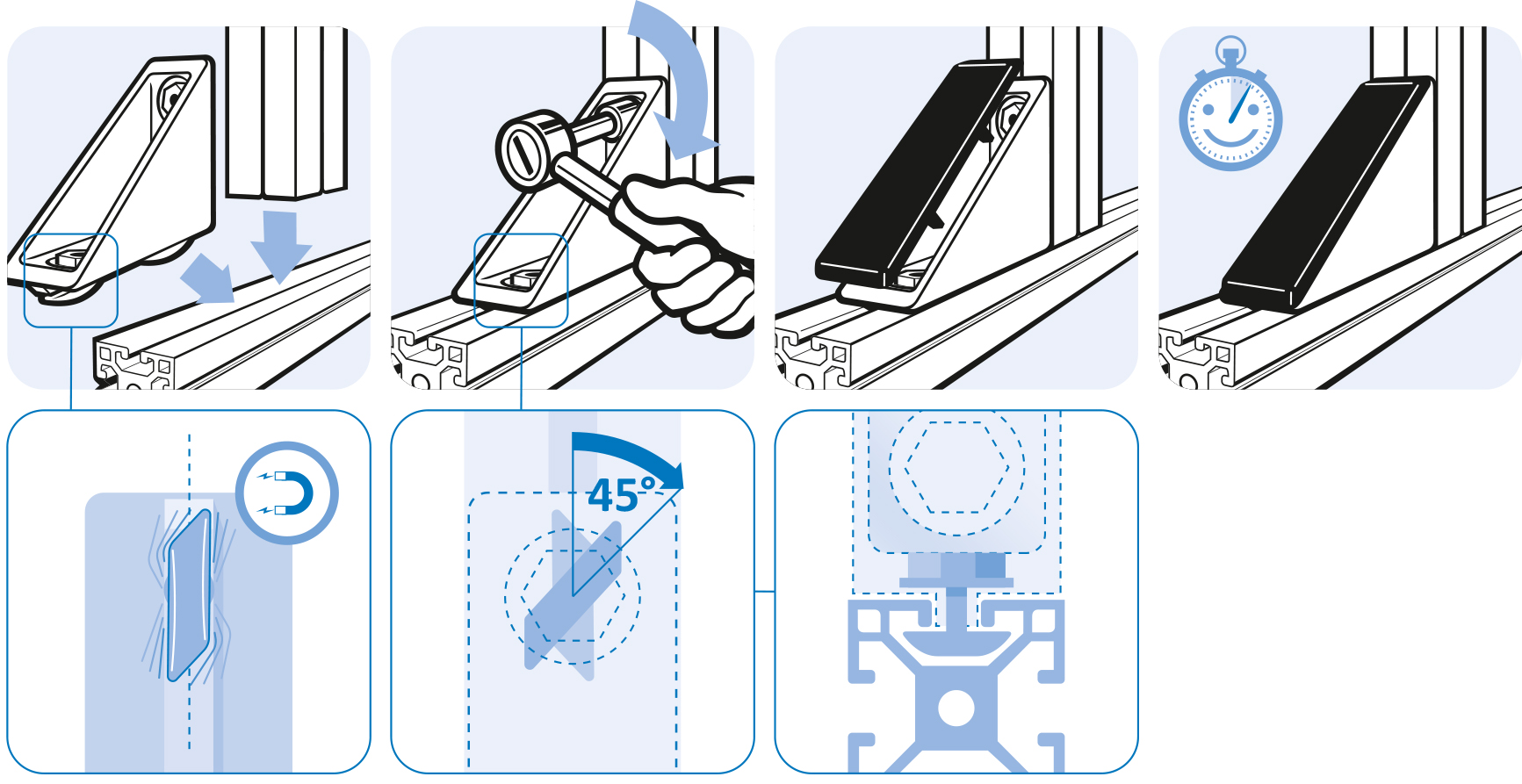

To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Magnet rhombus screws: Steel
Countersunk nuts: Steel

Especiales:
Otras superficies, otros colores bajo pedido

Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Tip:
Compatible Cover Cap see 093WA809

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 10 piezas
Model: Aluminio fundido a presión
Peso (g): 197.0

Variantes

ID de producto Profile Ranura N (mm)
093W809N08S01 I 8
