Angle Connector B 40, 45° (Set)
Número de producto:
093WS40345N10RS01
Información sobre el producto "Angle Connector B 40, 45° (Set)"
Color:
Cover caps: Black / gray
Países de Entrega:
En todo el mundo
Description:

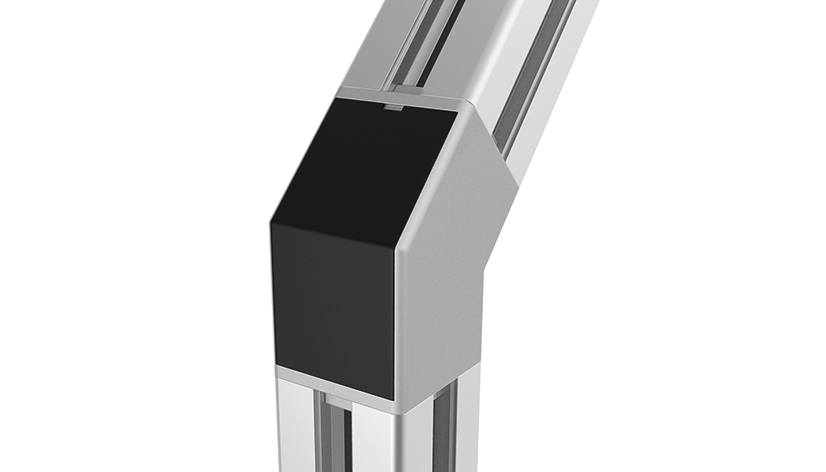

To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fibre reinforced
Assembly set: Steel

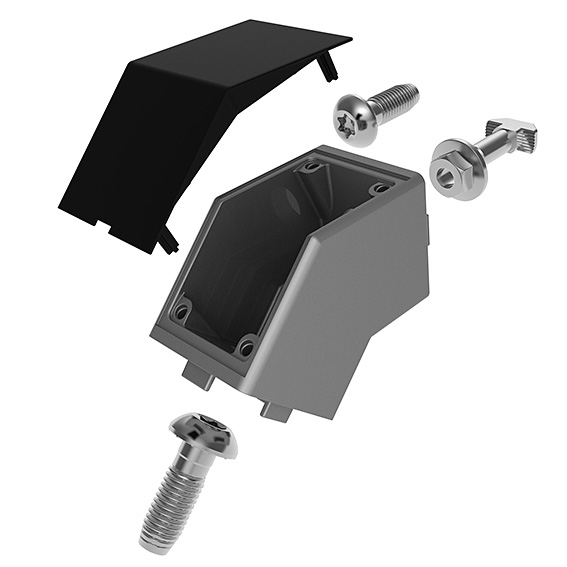

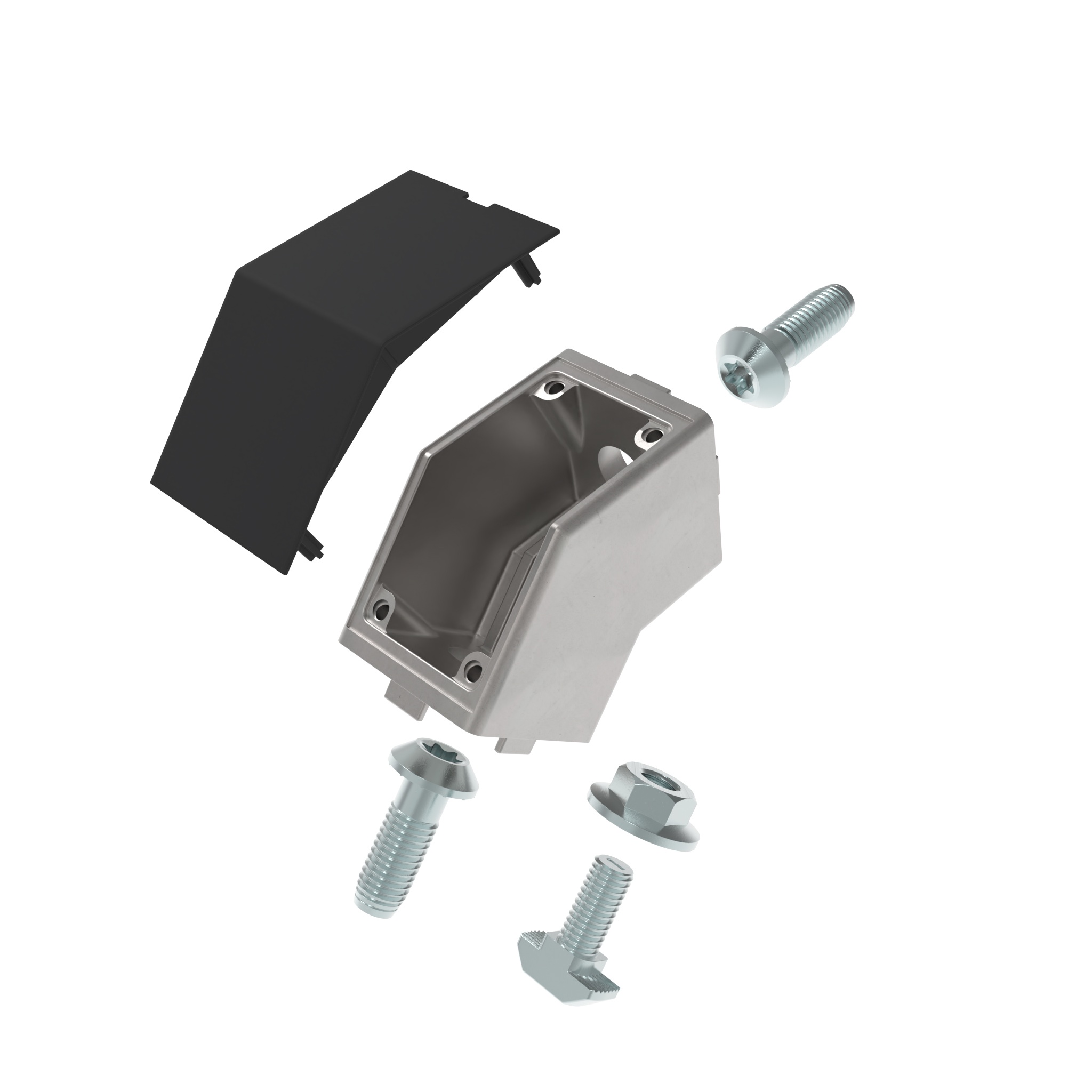

Set:
1 Angle connector,
1 Cover cap,
2 Self-forming screws S12 x 30 - hexalobular socket T50,
1 Hammer head screw M8 x 20 - slot 10,
1 Flange nut M8
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
Cover caps: Black / gray
Países de Entrega:
En todo el mundo
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fibre reinforced
Assembly set: Steel
Set:
1 Angle connector,
1 Cover cap,
2 Self-forming screws S12 x 30 - hexalobular socket T50,
1 Hammer head screw M8 x 20 - slot 10,
1 Flange nut M8
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Cantidad por Paquete: | 10 conjuntos |
| Model: | Aluminio fundido a presión |
| Numero de PA: | 140026 |
| Número de Arancel Aduanero de Exportación: | 76169990 |
| Peso (g): | 149.8 |
| Zolltarifnummer: | 76169990990 |
