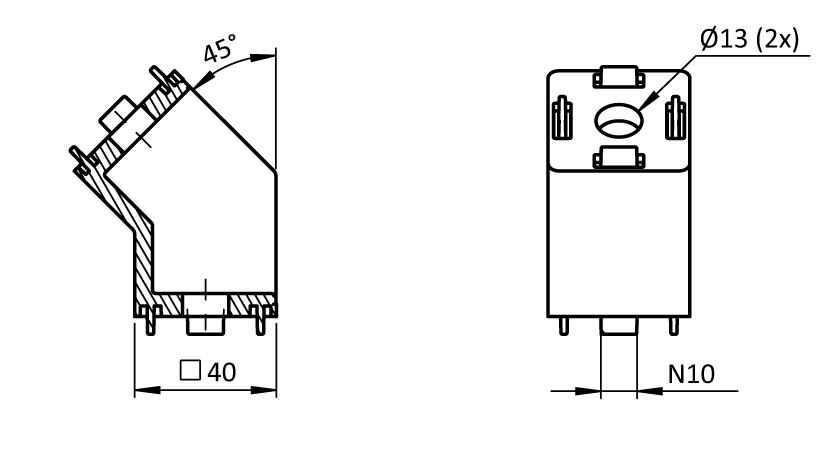

Angle Connector B 40, 45° (Set)
Precio normal:
0,00 €
Número de producto:
093WS40345N10S03
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Angle Connector B 40, 45° (Set)"
Color:
Cover caps: Black / gray
Países de Entrega:
En todo el mundo
Description:

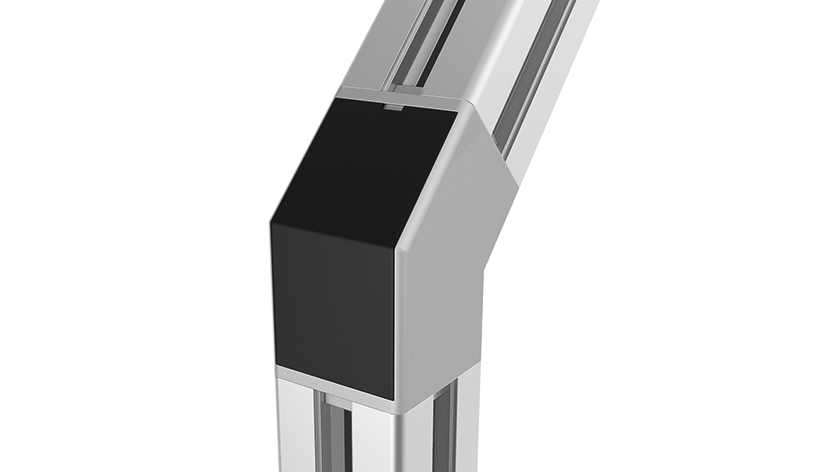

To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel

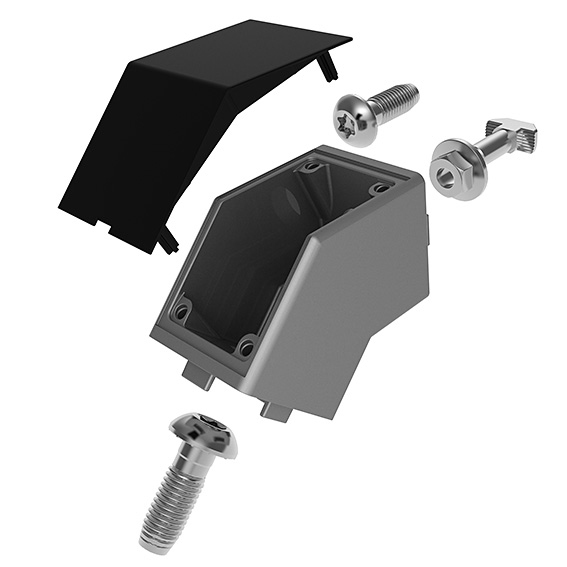

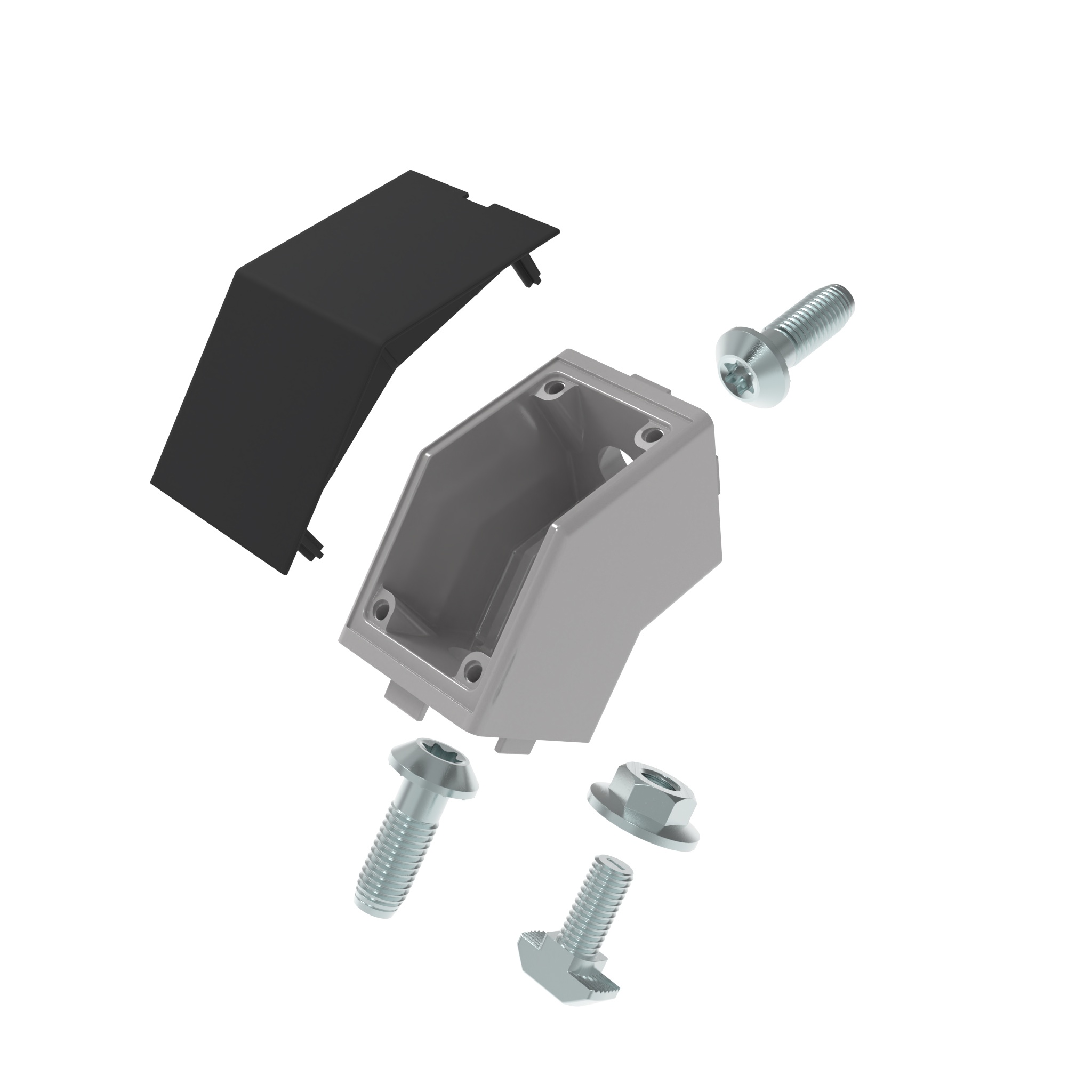

Set:
1 Angle connector,
1 Cover cap,
2 Self-forming screws S12 x 30 - hexalobular socket T50,
1 Hammer head screw M8 x 20 - slot 10,
1 Flange nut M8
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
Cover caps: Black / gray
Países de Entrega:
En todo el mundo
Description:
To mount a profile as bracing at a 45° angle without miter cut
Material:
Angle connector: Aluminum die-cast
Cover caps: Plastic PA, glass fiber reinforced
Assembly set: Steel
Set:
1 Angle connector,
1 Cover cap,
2 Self-forming screws S12 x 30 - hexalobular socket T50,
1 Hammer head screw M8 x 20 - slot 10,
1 Flange nut M8
Surface:
Angle connector: Plain / Powder coated
Assembly set: Zinc plated
| Cantidad por Paquete: | 10 conjuntos |
|---|---|
| Model: | Aluminio fundido a presión |
| Peso (g): | 149.8 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| Zolltarifnummer: | 76169990990 |
| Número de Arancel Aduanero de Exportación: | 76169990 |
| Numero de ERP: | 140028 |
