Base PA BDH para patas giratorias, rótula 15, gris

Información sobre el producto "Base PA BDH para patas giratorias, rótula 15, gris"

Color:
Gris ≈ RAL 7042

Países de Entrega:
En todo el mundo

Description:

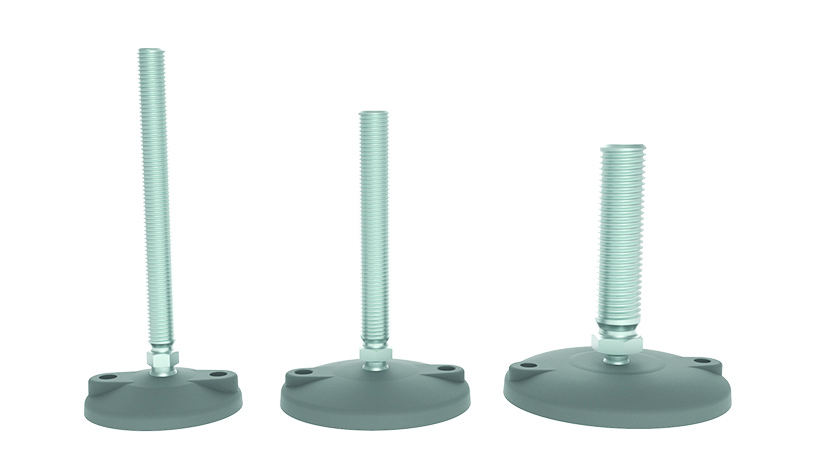

A swiveling leveling foot which can be fixed to the floor

Material:
Plástico PA, bola de vidrio reforzado

Tip:

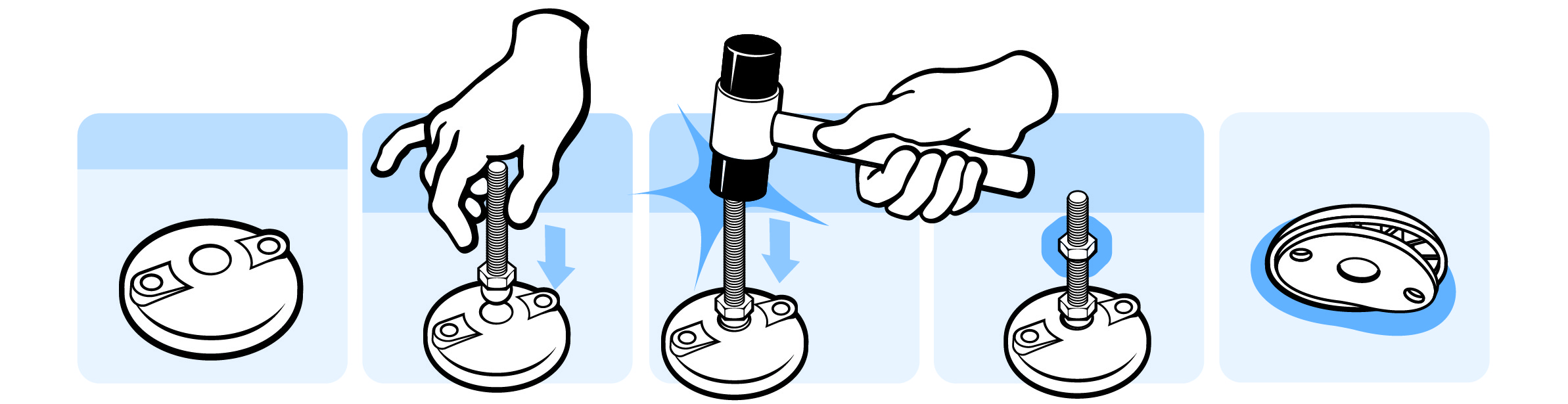

Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-slip Plate see 098DG030 et sq.;
*Bolt-down holes closed
Model: Plastic PA, with bolt-down holes
Cantidad por Paquete: 10 piezas
Número de Arancel Aduanero de Exportación: 39269097
Peso (g): 86.0
(ECLASS 6.0): 90900102
(ECLASS 7.0): 90900102
(ECLASS 8.0): 90900102
(ECLASS 9.0): 90900102
(ECLASS 10.0): 90900102
(ECLASS 11.0): 90900102
(ECLASS 12.0): 90900102
(ECLASS 13.0): 90900102
(ECLASS 15.0): 90900102
(ECLASS 16.0): 23010704
ECLASS_V14.0: 90900102
Numero de ERP: 140917
Zolltarifnummer: 39269097900

Variantes

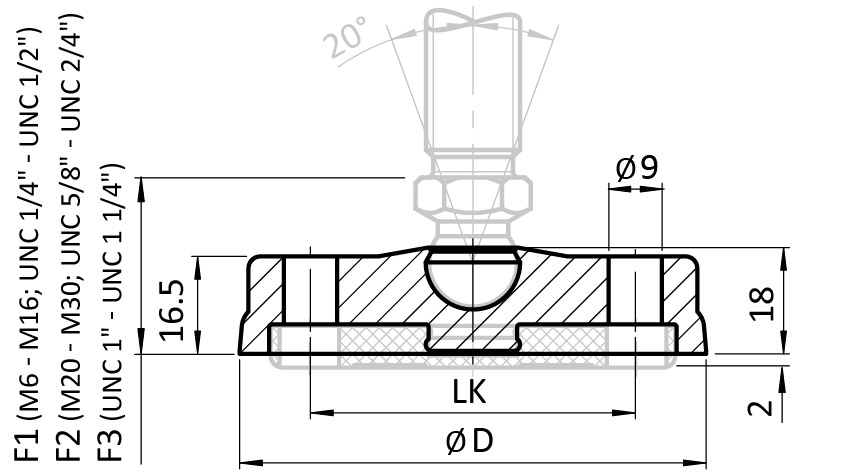

Número de producto Version Base Fmax (N) LK (mm) D (mm) F1 (mm) F2 (mm) F3 (mm)
098D080KBS04 without anti-slip plate 80 8820 55 79 29.5 32.5 33.5
098D080KBZS04 without anti-slip plate *80 8820 55 79 29.5 32.5 33.5
098D100KBS03 without anti-slip plate 100 8820 74 99 29.5 32.5 33.5
098D100KBZS02 without anti-slip plate *100 8820 74 99 29.5 32.5 33.5
098D120KBS03 without anti-slip plate 120 8820 94 119 29.5 32.5 33.5
098D120KBZS01 without anti-slip plate *120 8820 94 119 29.5 32.5 33.5
