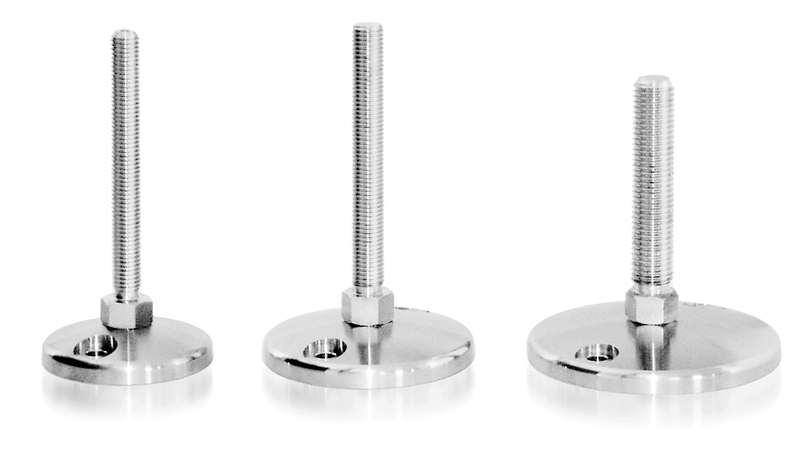

Base acier inox BDH para patas pivotantes

Información sobre el producto "Base acier inox BDH para patas pivotantes"

Países de Entrega:
En todo el mundo

Description:
A leveling foot which can be fixed to the floor

Material:
Acero inoxidable SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098AM12066E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate 098AG050
Cantidad por Paquete: 10 piezas
Model: Stainless steel, with bolt-down holes
Peso (g): 900.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098
Numero de ERP: 103438

Variantes

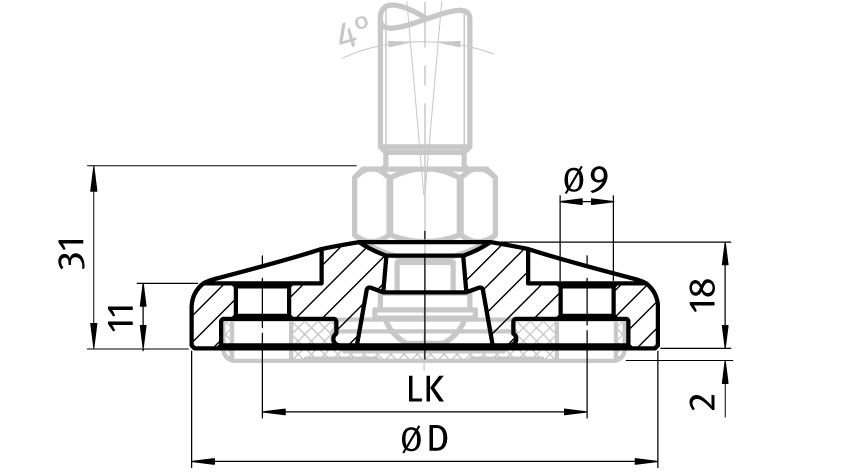

Número de producto Base Fmax (N) D (mm) Version LK (mm)
098A080EB 80 29400 79 without anti-slip plate 55
098A080EBG 80 29400 79 with anti-slip plate 55
098A100EB 100 34300 99 without anti-slip plate 74
098A100EBG 100 34300 99 with anti-slip plate 74
098A120EB 120 34300 119 without anti-slip plate 94
098A120EBG 120 34300 119 with anti-slip plate 94
