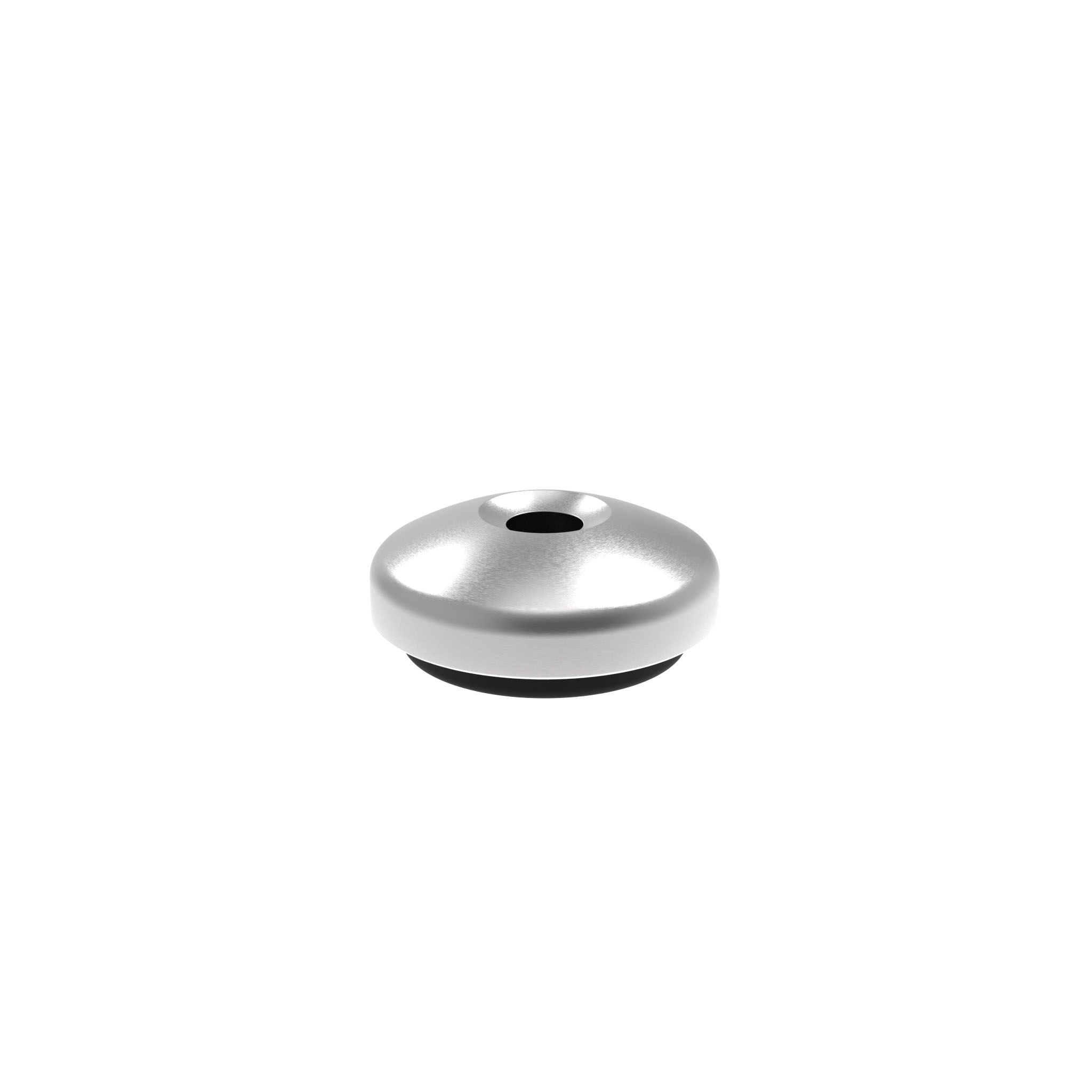

Base acier inox para patas pivotantes

Información sobre el producto "Base acier inox para patas pivotantes"

Países de Entrega:
En todo el mundo

Description:
A leveling foot for strong positioning on slightly uneven floors

Material:
Acero inoxidable SS303

Specials:
Other sizes, glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Liso

Tip:
Compatible Threaded Rod see 098AM12066E,
Compatible Nut see 4DIN439BM5E et sq.,
Compatible Anti-Slip Plate 098AG050
Cantidad por Paquete: 10 piezas
Model: Stainless steel, without bolt-down holes
Peso (g): 228.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098
Numero de ERP: 103377

Variantes

Número de producto Base Fmax (N) D (mm) Version
098A060E 60 44100 59 without anti-slip plate
098A060EG 60 44100 59 with anti-slip plate
098A080E 80 44100 79 without anti-slip plate
098A080EG 80 44100 79 with anti-slip plate
098A100E 100 44100 99 without anti-slip plate
098A100EG 100 44100 99 with anti-slip plate
098A120E 120 44100 119 without anti-slip plate
098A120EG 120 44100 119 with anti-slip plate
