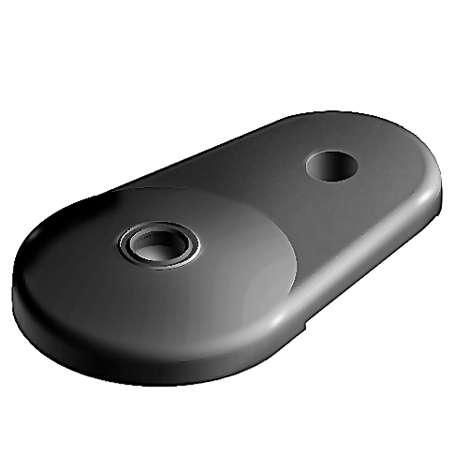

Base extendida 80 ZN para patas giratorias, rótula 15

Información sobre el producto "Base extendida 80 ZN para patas giratorias, rótula 15"

Color:
Negro

Países de Entrega:
En todo el mundo

Description:

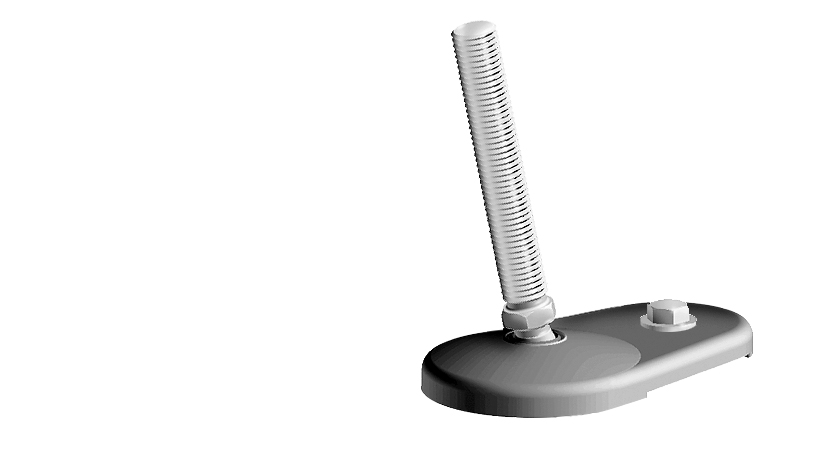

Extended swiveling leveling foot which can be fixed to the floor

Material:
Zinc fundido a presión

Specials:
Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request;
As factory assembled leveling foot on request

Superficie:
Polvo cubierto

Tip:
Compatible Threaded Rod see 098DM08025M et sq.,
Compatible Nut see 4DIN439BM5M et sq.,
Compatible Anti-Slip Plate see 098DG030
Model: Zinc fundido a presión
Cantidad por Paquete: 10 piezas
Número de Arancel Aduanero de Exportación: 79070000
Peso (g): 434.0
ECLASS 6.0: 90900102
ECLASS 7.0: 90900102
ECLASS 8.0: 90900102
ECLASS 9.0: 90900102
ECLASS 10.0: 90900102
ECLASS 11.0: 90900102
ECLASS 12.0: 90900102
ECLASS 13.0: 90900102
ECLASS 14.0: 90900102
ECLASS 15.0: 90900102
ECLASS 16.0: 23010704
Numero de ERP: 104035
Zolltarifnummer: 79070000900

Variantes

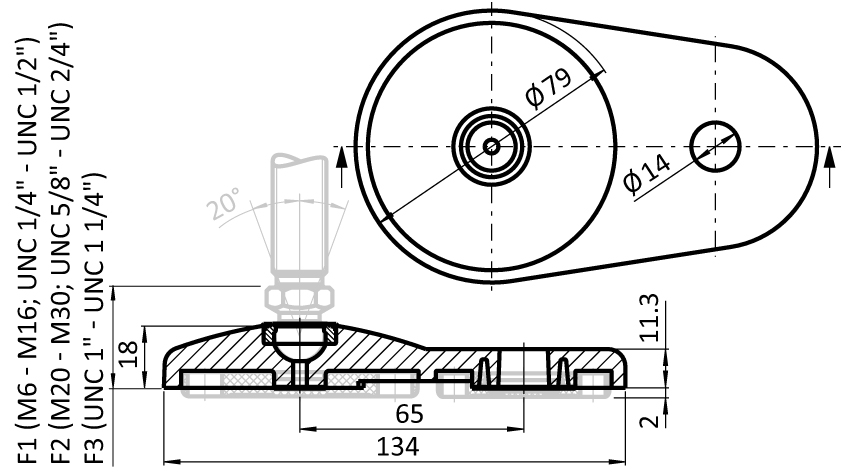

Número de producto Version Base Fmax (N) F1 (mm) F2 (mm) F3 (mm)
098DA080ZS without anti-slip plate 80 29400 29.5 32.5 33.5
098DA080ZSG with anti-slip plate 80 29400 29.5 32.5 33.5
