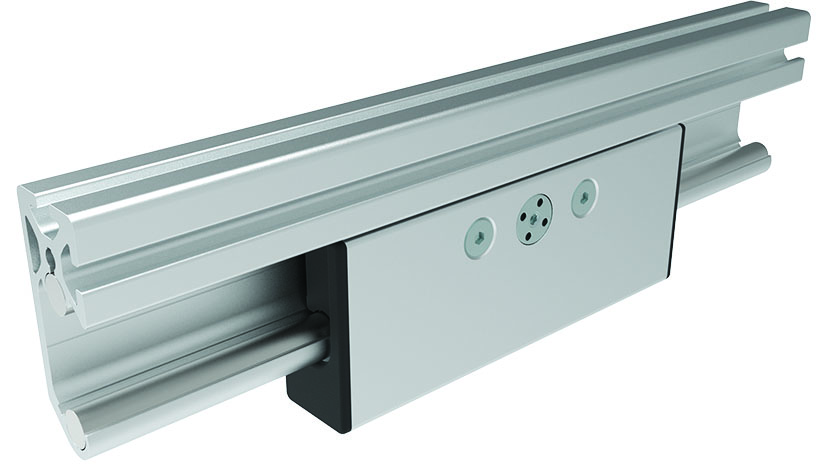

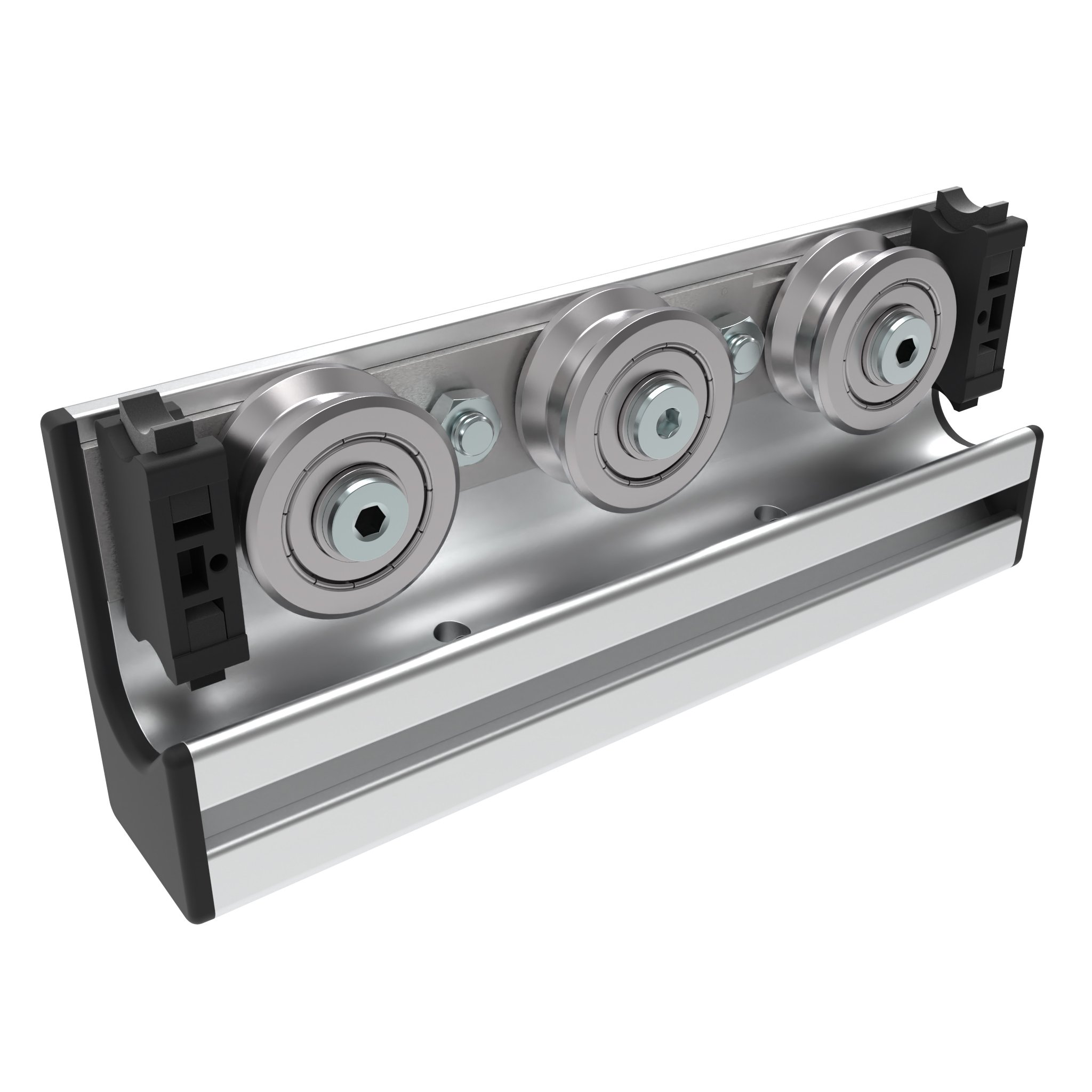

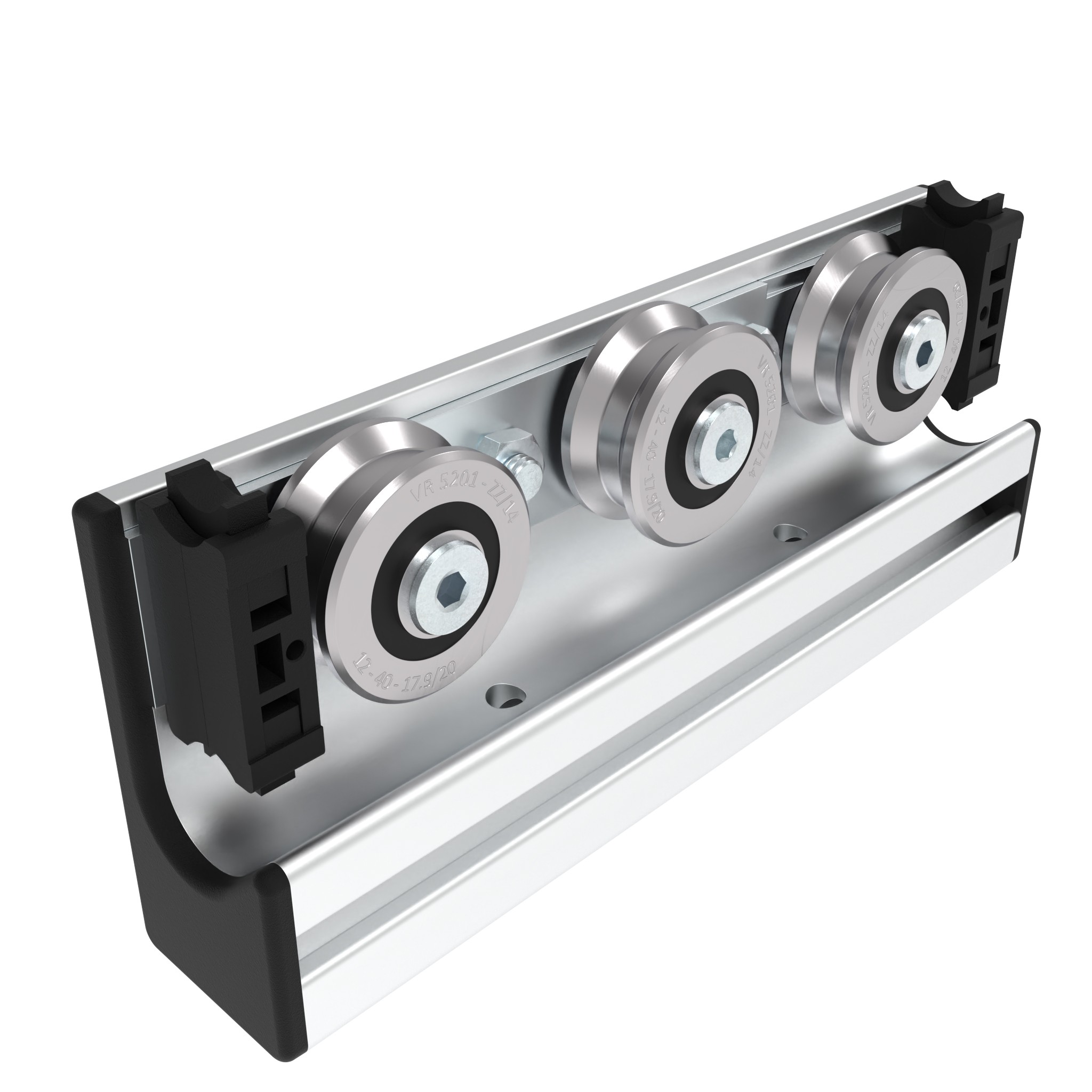

Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I

0,00 €

Profile

I

Número de producto: 093CIUD141SA208S01

Cantidad por paquete: 1 pieza

Descripción:
To build sliding doors
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm

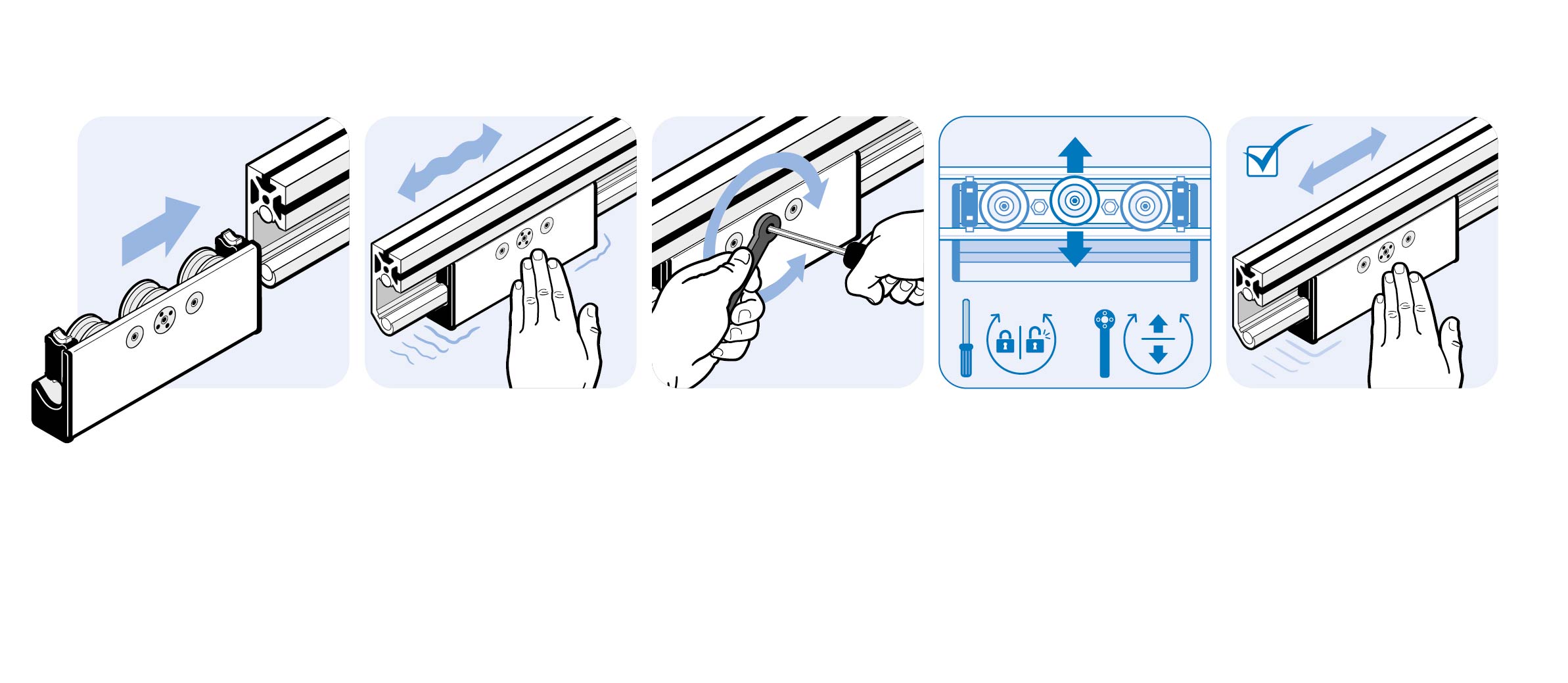

To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer

Material:
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Profile: Aluminum
Cover caps: Plastic PA, glass fiber reinforced

Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Wood screws: Zinc plated
Profile: Anodized

Color:
Wiper and lubricators: Black
Cover caps: Black

Países de Entrega:
En todo el mundo
