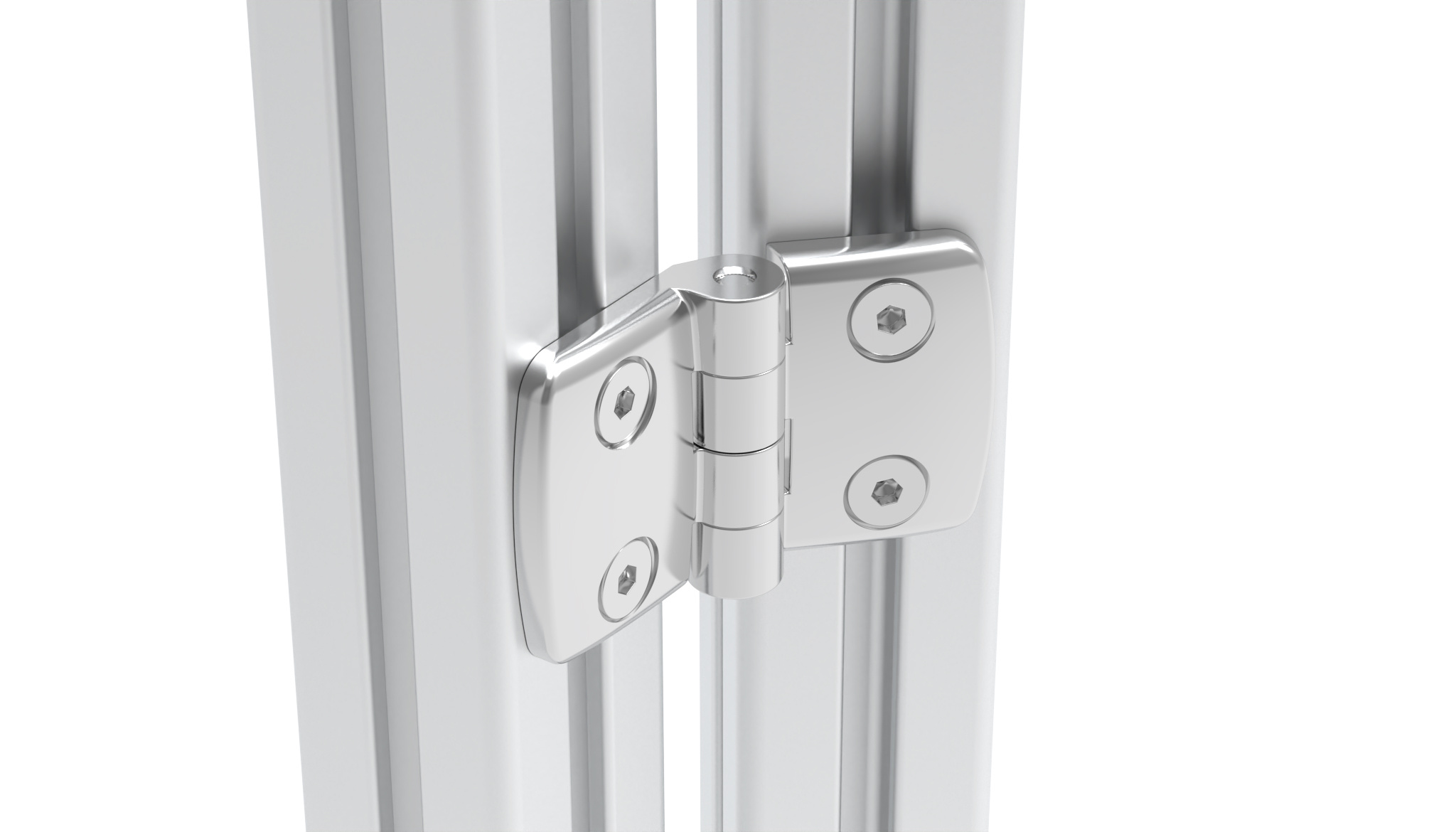

Bisagra combinada de acero inoxidable 40, no desmontable

Descripción:
To hinge panels or aluminum profiles
Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Superficie:
Liso

PFA_Fastening:
Por delante, con tornillos avellanados M6

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: No desmontable
Peso (g): 205.0
Numero de ERP: 112754

Variantes

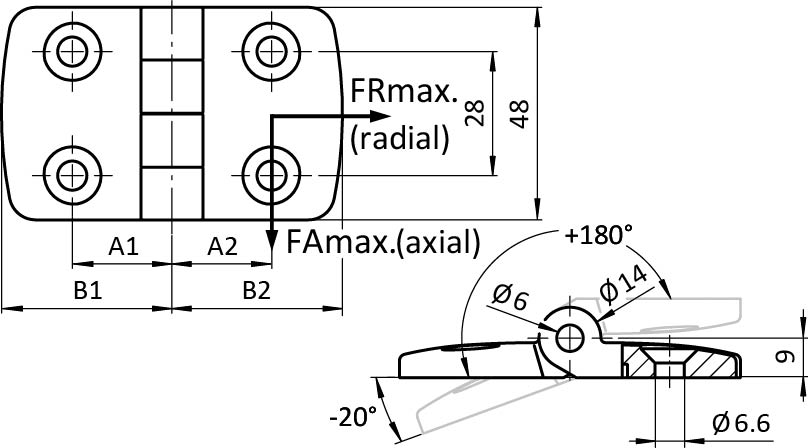

Número de producto Version B1 (mm) B2 (mm) Combinación FAmax (N) FRmax (N) A1 (mm) A2 (mm) CAD
No desmontable 38.5 38.5 40 / 40 675 900 22.5 22.5

Clasificación

ECLASS 6.0
23219090
ECLASS 7.0
23219090
ECLASS 8.0
23219090
ECLASS 9.0
23219090
ECLASS 10.0
23219090
ECLASS 11.0
23219090
ECLASS 12.0
23219090
ECLASS 13.0
23219090
Zolltarifnummer
83021000900
Número de Arancel Aduanero de Exportación
83021000

Certificados

Tags

Profile Type Profile Type B, Profile Type I
Product Feature Stainless
Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
