Central Connector B 90° +/-45°

Descripción:

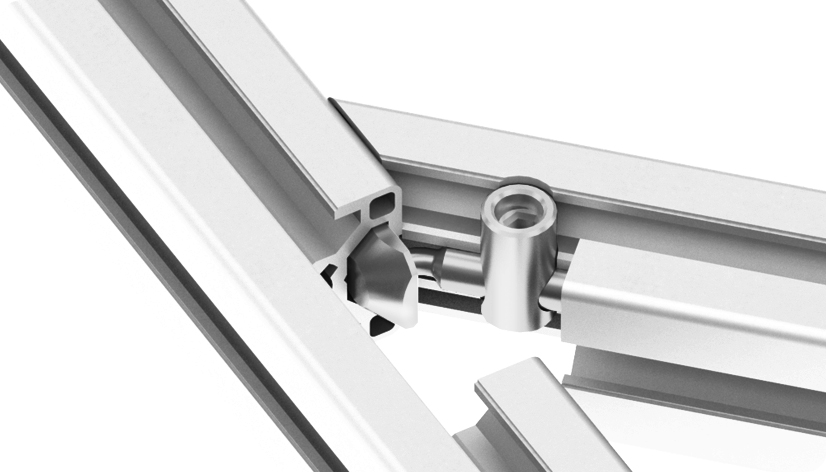

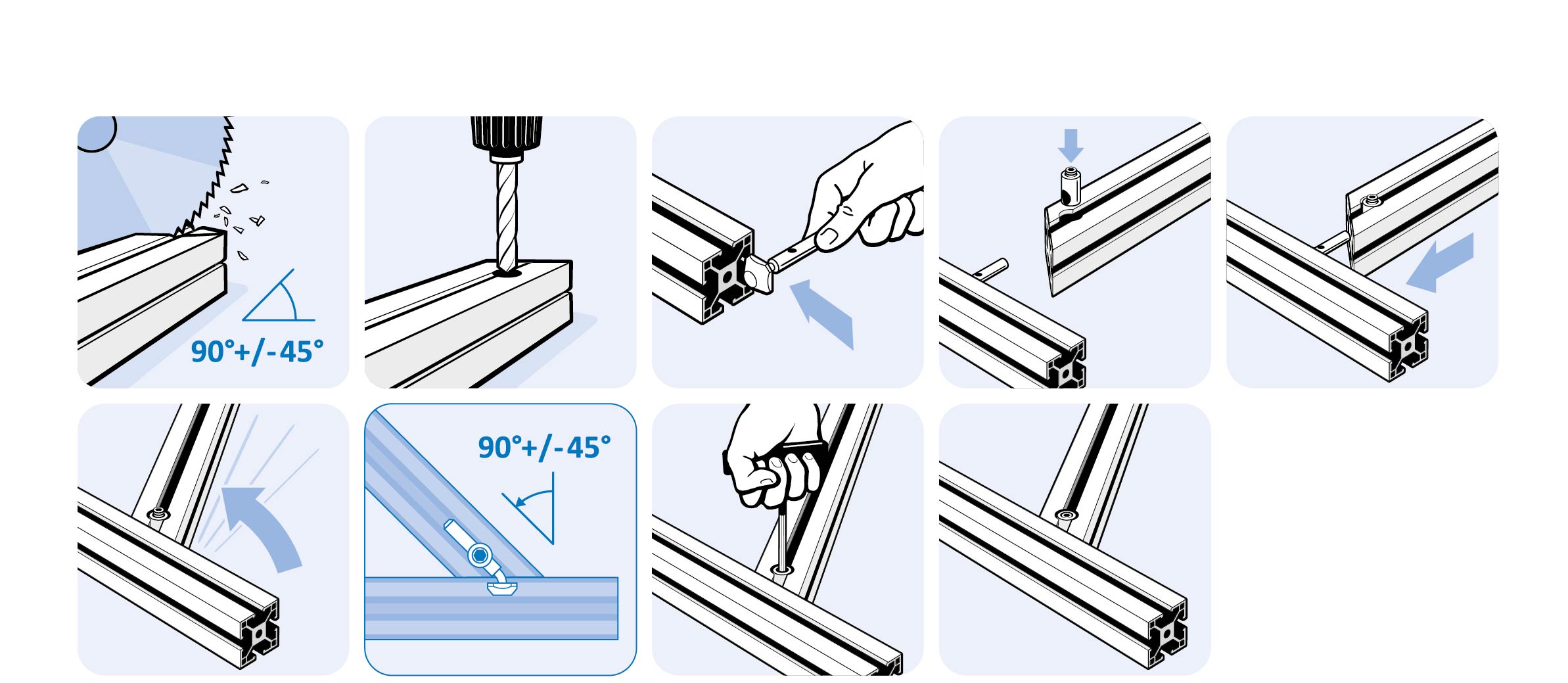

End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°

Material:
Tie-rod: Stainless steel
Bushes: Steel

Surface:
Tie-rod: Plain
Bushes: Zinc plated

Tip:
Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

Tip 2:
Compatible Cover Cap for Central Connector B, Slot 10 see 091107

Países de Entrega:
En todo el mundo

Cantidad por paquete:	10 piezas
Model:	Acero / acero inoxidable
Peso (g):	27.0
Numero de ERP:	125354

Variantes

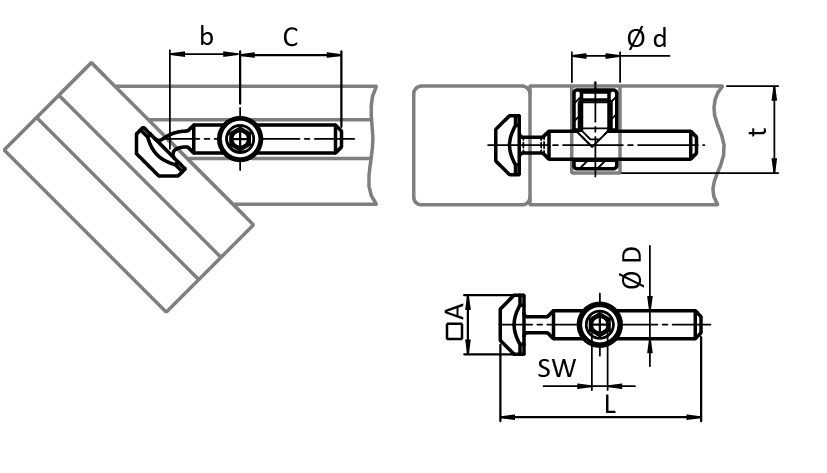

Número de producto	SW (mm)	D (mm)	Profile	L (mm)	d (mm)	b (mm)	Ranura N (mm)	t (mm)	CAD
099B0811S02	4	7.1	B	51.0	Ø11	18.0	8	22.0
099B1017S02	6	9.8	B	75.0	Ø17	22.5	10	31.0 (1) 34.0 (2) 36.0 *(3)

Clasificación

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73269098900
Número de Arancel Aduanero de Exportación: 73269098

Certificados

Tags

Profile Type	Profile Type B
Slot Size	Slot size 8
Profile Form	T-slot Profiles

Accesorios adecuados

Cover Cap for Central Connector B, Slot 10

Profile: B L (mm): 15.0 Dimensión modular (mm): 45 Para Tuerca: 10

Description:To cover the blind or through holeMaterial:Plástico PAColor:NegroTip:Compatible Central Connector B 0°, Slot 10 see 099B10171000 Compatible Central Connector B 90°, Slot 10 see 099B10171090 Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01 Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02Países de Entrega:En todo el mundo
