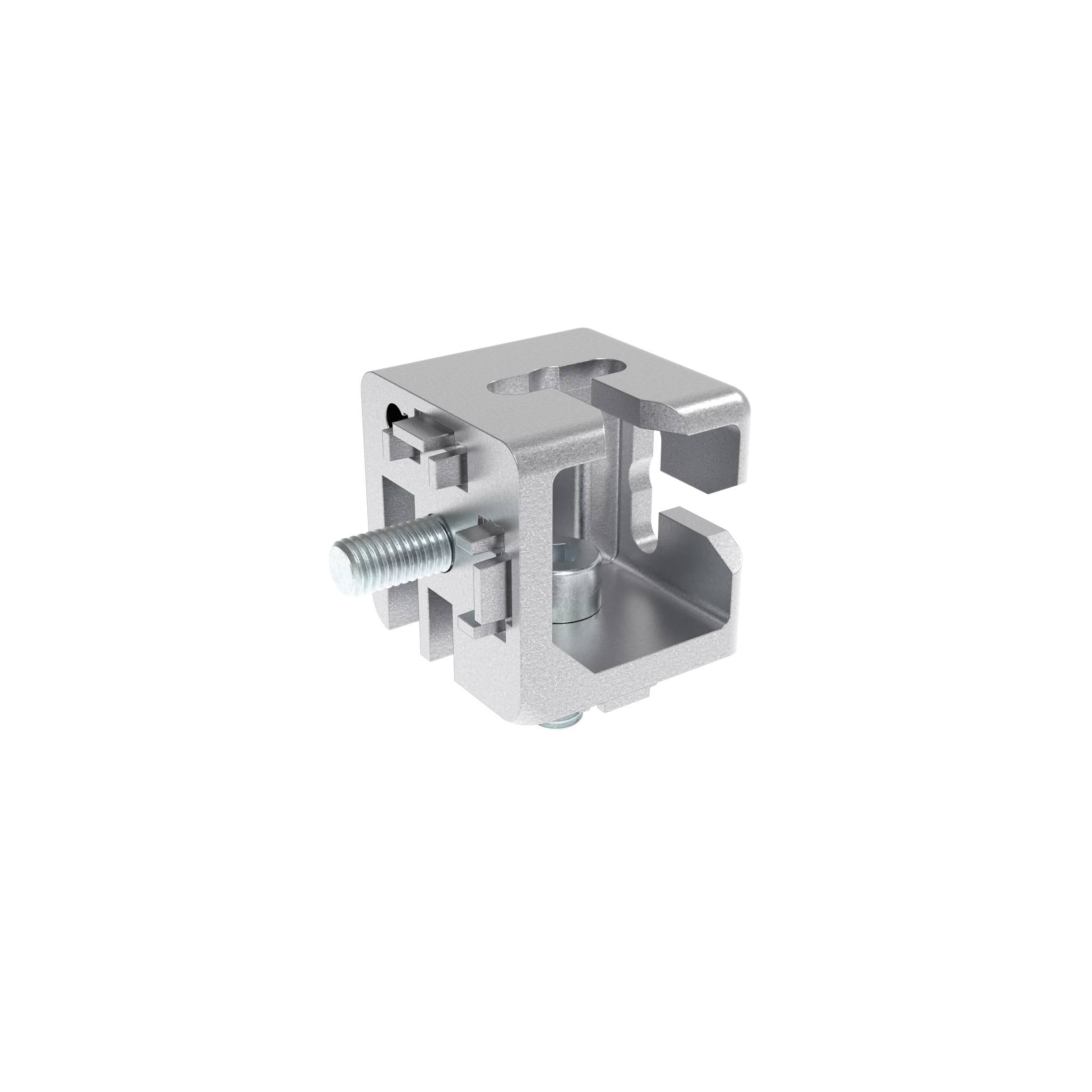

Conector abrazadera para perfil 40 (Juego)
0,00 €

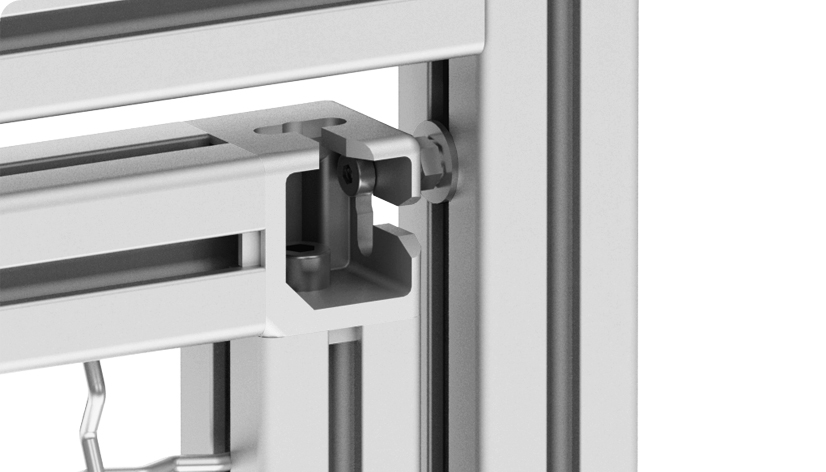

To connect two aluminum profiles at right angles and to attach a frame element to a frame structure by means of a suitable mounting; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked
Clamp profile connector: Zinc die-cast
Screws: Steel
Surface:
Clamp profile connector: Powder coated
Screws: Zinc plated
Color:
Clamp profile connector: Alu color
Set:
1 clamp profile connector,
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 20
Tip:
Compatible Mounting for Clamp Profile Connector 40 (Set) see 093XWWC401N08
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | Zinc fundido a presión, Perfil 40 |
| Peso (g): | 201.0 |
| Numero de ERP: | 129264 |
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360492
- ECLASS 12.0
- 23360492
- ECLASS 13.0
- 23360492
- Zolltarifnummer
- 79070000900
- Número de Arancel Aduanero de Exportación
- 79070000
Certificados
Accesorios adecuados
Description:To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensatedMaterial:T-slot nut: Steel Shim: Steel Nut: Steel Screw: Steel Ball: Stainless steelSurface:T-slot nut: Zinc plated Shim: Zinc plated Nut: Zinc plated Screw: Zinc plated Ball: PlainSet:Mounting, completely preassembled: 1 T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) - 6.4, 1 nut DIN EN ISO 4032 (DIN 934) - M6, 1 screw DIN 7984 - M6 x 30, 1 ball Ø 4Tip:Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01Países de Entrega:En todo el mundo
