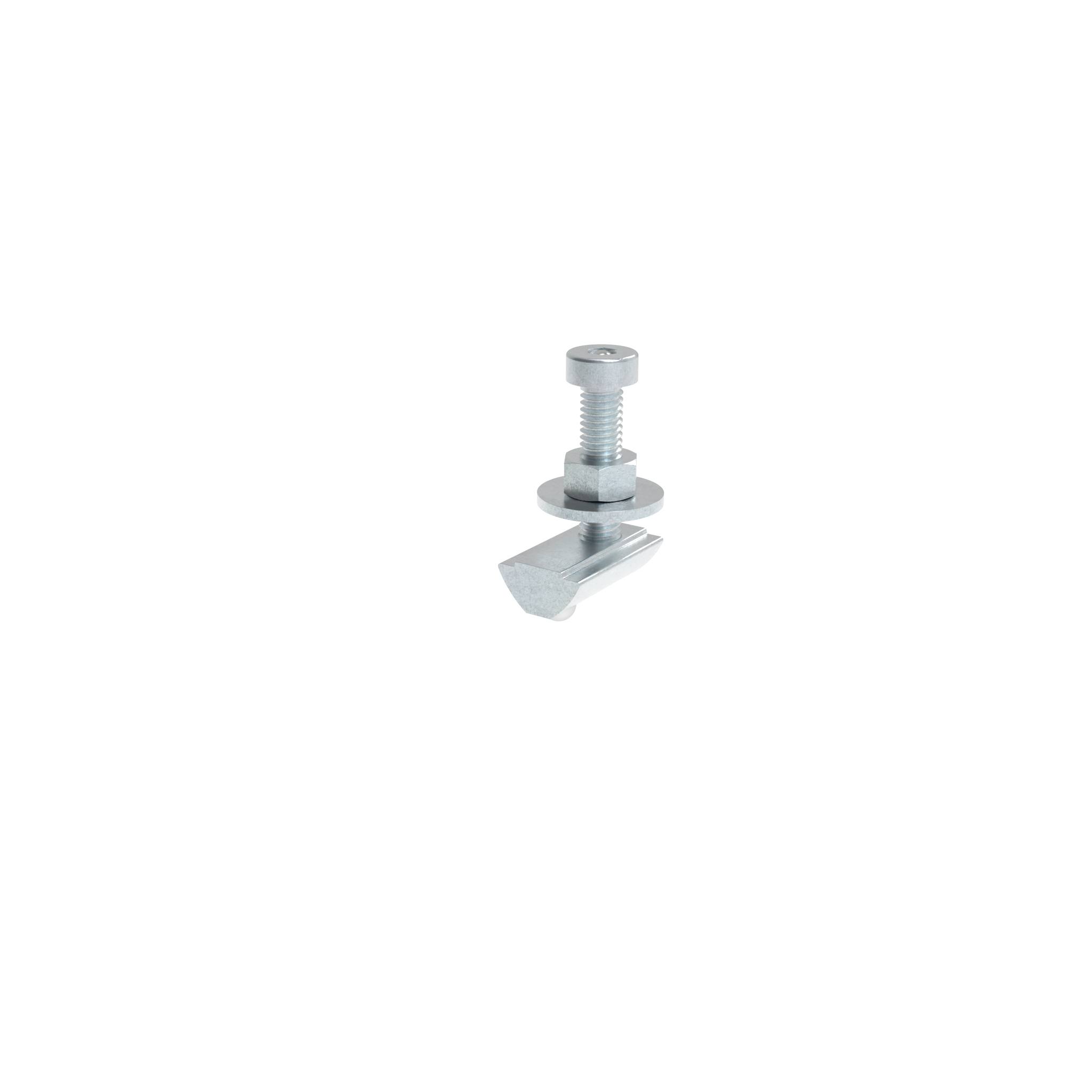

Montaje para conector abrazadera 40 (Juego)
Precio normal:
0,00 €
Número de producto:
093XWWC401N08
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Montaje para conector abrazadera 40 (Juego)"
Países de Entrega:
En todo el mundo
Description:

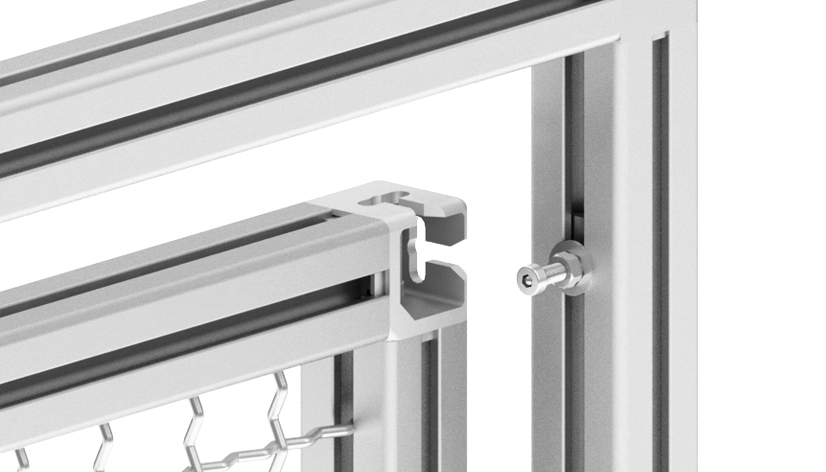

To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
Material:
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel

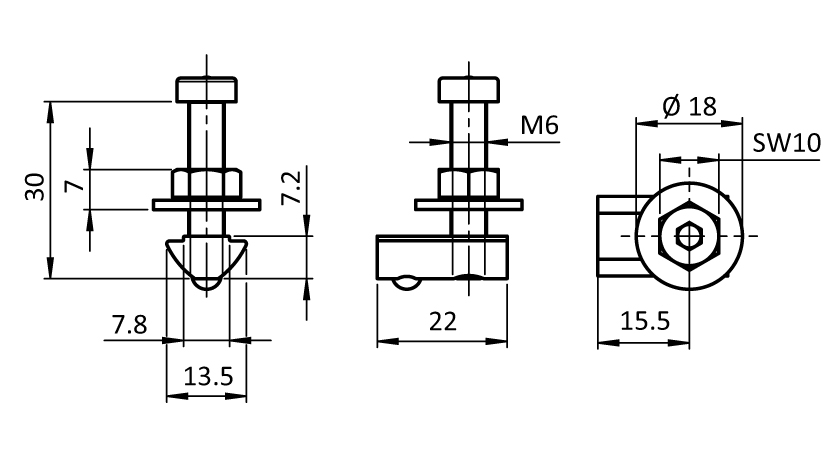

Set:
Mounting, completely preassembled:
1 T-slot nut - slot 8 - M6,
1 shim DIN EN ISO 7093 (DIN 9021) - 6.4,
1 nut DIN EN ISO 4032 (DIN 934) - M6,
1 screw DIN 7984 - M6 x 30,
1 ball Ø 4
Surface:
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain
Tip:
Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01
En todo el mundo
Description:
To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
Material:
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel
Set:
Mounting, completely preassembled:
1 T-slot nut - slot 8 - M6,
1 shim DIN EN ISO 7093 (DIN 9021) - 6.4,
1 nut DIN EN ISO 4032 (DIN 934) - M6,
1 screw DIN 7984 - M6 x 30,
1 ball Ø 4
Surface:
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain
Tip:
Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01
| Cantidad por Paquete: | 10 conjuntos |
|---|---|
| Model: | Steel, slot 8 |
| Peso (g): | 16.0 |
| ECLASS 6.0: | 23369290 |
| ECLASS 7.0: | 23369290 |
| ECLASS 8.0: | 23369290 |
| ECLASS 9.0: | 23369290 |
| ECLASS 10.0: | 23369290 |
| ECLASS 11.0: | 23360492 |
| ECLASS 12.0: | 23360492 |
| ECLASS 13.0: | 23360492 |
| Zolltarifnummer: | 73181595890 |
| Número de Arancel Aduanero de Exportación: | 73181595 |
| Numero de ERP: | 137243 |
