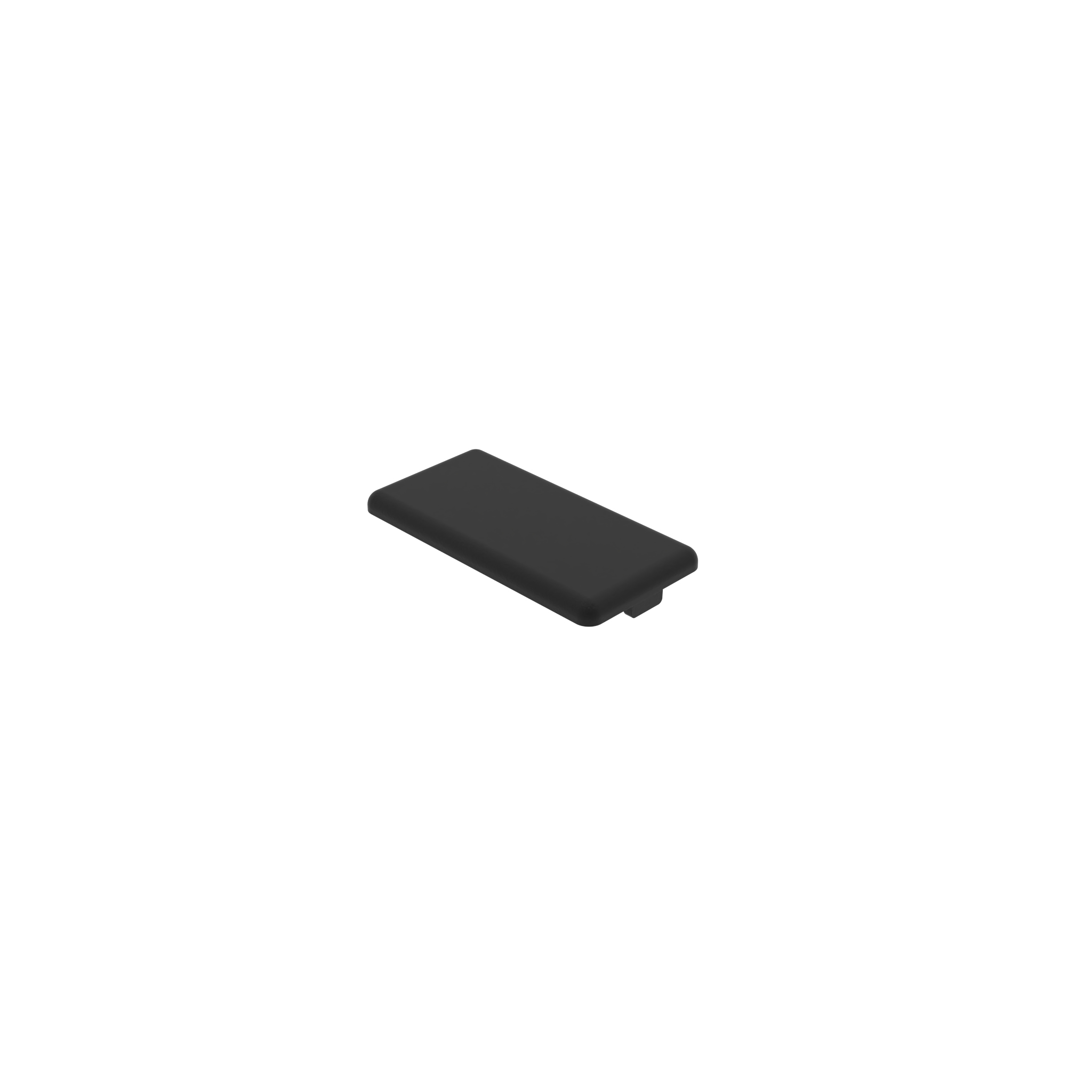

Cover Cap for 30 mm Modular Dimension
Número de producto:
091179S01
Información sobre el producto "Cover Cap for 30 mm Modular Dimension"
Color:
Negro, gris
Países de Entrega:
En todo el mundo
Description:
To cover the end of the profile
Material:
Plástico PA, reforzado con fibra de vidrio
Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Negro, gris
Países de Entrega:
En todo el mundo
Description:
To cover the end of the profile
Material:
Plástico PA, reforzado con fibra de vidrio
Especiales:
Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
| (ECLASS 6.0): | 23369290 |
|---|---|
| (ECLASS 7.0): | 23369290 |
| (ECLASS 8.0): | 23369290 |
| (ECLASS 9.0): | 23369290 |
| (ECLASS 10.0): | 23369290 |
| (ECLASS 11.0): | 23360192 |
| (ECLASS 12.0): | 23360192 |
| (ECLASS 13.0): | 23360192 |
| Cantidad por Paquete: | 10 / 50 / 100 piezas, 100 piezas |
| Cantidad por Paquete: | 100 |
| Model: | 30 mm modular dimension |
| Numero de PA: | 129754 |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Pack Quantity (Stück): | 100 |
| Peso (g): | 7.7 |
| Zolltarifnummer: | 39269097900 |
Variantes
| ID de producto | Color | Dimensions A x B (mm) | Ranura N (mm) | ØD (mm) | R (mm) | Feature | T (mm) | Profile |
|---|---|---|---|---|---|---|---|---|
| 091001 | Negro | 30 x 30 | 8 | 10.0 | 3.0 | 1 cross | 4.0 | |
| 091019 | Negro | 30 x 30 | 6.9 | 3.0 | 1 cross | 3.0 | ||
| 091026 | Negro | 11 x 30 | 8 | 6.2 | 2.0 | 2 pins | 3.0 | |
| 091027 | Negro | 30 x 30 | 8 | 7.6 (7.3) | 3.0 | 1 cross | 4.0 | B |
| 091029 | Negro | 30 x 60 | 12.4 | 3.0 | 2 crosses | 4.0 | ||
| 091044 | Negro | 30 x 30 | 7.0 | 3.0 | 1 cross | 4.0 | ||
| 091047 | Negro | 30 x 30 | 12.8 | 3.0 | 1 cross turned 23 ° | 4.0 | ||
| 091062 | Negro | 30 x 30 | 6.9 | 3.0 | 1 cross | 4.0 | ||
| 091101 | Negro | 30 x 30 | 3.0 | 2 pins | 4.0 | |||
| 091109 | Negro | 30 x 30 | 7.6 | 2.0 | 1 cross | 4.0 | ||
| 091126 | Negro | 30 x 30 R30 - 90° | 6.9 | 2.0 | 1 cross | 4.0 | ||
| 091140 | Negro | 30 x 30 | 6.7 | 3.0 | 1 cross | 4.0 | ||
| 091179 | Negro | 30 x 60 | 8 | 7.6 (7.3) | 3.0 | 2 crosses | 4.0 | B |
| 091179S01 | Negro | 30 x 60 | 8 | 7.6 (7.3) | 3.0 | 2 crosses, ESD electrostatical discharging | 4.0 | B |
| 091179S04 | Gris ≈ RAL 7004 | 30 x 60 | 8 | 7.6 (7.3) | 3.0 | 2 crosses | 4.0 | B |
| 091184 | Negro | 30 x 30 | 6 | 5.2 (5.0) | 3.0 | 1 cross | 3.0 | I |
| 091184S03 | Gris ≈ RAL 7042 | 30 x 30 | 6 | 5.2 (5.0) | 3.0 | 1 cross | 3.0 | I |
| 091185 | Negro | 30 x 60 | 6 | 5.2 (5.0) | 3.0 | 2 crosses | 3.0 | I |
| 091185S01 | Gris ≈ RAL 7042 | 30 x 60 | 6 | 5.2 (5.0) | 3.0 | 2 crosses | 3.0 | I |
| 091186 | Negro | 60 x 60 | 6 | 5.2 (5.0) | 3.0 | 4 crosses | 3.0 | I |
| 091186S01 | Gris ≈ RAL 7042 | 60 x 60 | 6 | 5.2 (5.0) | 3.0 | 4 crosses | 3.0 | I |
| 091187 | Negro | 30 x 120 | 6 | 5.2 (5.0) | 3.0 | 4 crosses | 3.0 | I |
| 091188 | Negro | 30 x 30 45° | 6 | 5.2 (5.0) | 3.0 | 1 cross turned 45° | 3.0 | I |
| 091188S01 | Gris ≈ RAL 7042 | 30 x 30 45° | 6 | 5.2 (5.0) | 3.0 | 1 cross turned 45° | 3.0 | I |
| 091245 | Negro | 30 x 30 R30 - 90° | 6 | 5.2 (5.0) | 3.0 | 1 cross | 3.0 | I |
| 091245S01 | Gris ≈ RAL 7042 | 30 x 30 R30 - 90° | 6 | 5.2 (5.0) | 3.0 | 1 cross | 3.0 | I |
| 091252 | Negro | 30 x 30 | 8 | 10.8 (10.0) | 3.0 | New version 1, 1 cross turned 45° | 4.0 | B |
| 091252S08 | Gris ≈ RAL 7004 | 30 x 30 | 8 | 10.8 (10.0) | 3.0 | 1 cross turned 45° | 4.0 | B |
| 091258 | Negro | 30 x 30 | 8 | 10.8 (10.0) | 2.0 | 1 cross turned 45° | 4.0 | B |
| 091258S01 | Gris ≈ RAL 7035 | 30 x 30 | 8 | 10.8 (10.0) | 2.0 | 1 cross turned 45° | 4.0 | B |
| 091344 | Negro | 30 x 30 R25 - 90° | 8 | 10.8 (10.0) | 2.0 | 1 cross | 3.0 | B |
| 091344S01 | Negro | 30 x 30 R30 - 90° | 8 | 10.8 (10.0) | 2.0 | 1 cross turned 45°, ESD electrostatical discharging | 3.0 | B |
| 091344S02 | Gris ≈ RAL 7004 | 30 x 30 R30 - 90° | 8 | 10.8 (10.0) | 2.0 | 1 cross turned 45° | 3.0 | B |
| 091346 | Negro | 11 x 20 | 8 | 3.3 | 2.0 | 3 pins | 3.0 | B |
| 091346S01 | Gris ≈ RAL 7004 | 11 x 20 | 8 | 3.3 | 2.0 | 3 pins | 3.0 | B |
| 091359 | Negro | 30 x 30 | 8 | 4.0 | 2.0 | With hole Ø 8.5 mm, 4 pins | 3.0 | B |
| 091359S01 | Negro | 30 x 30 | 8 | 4.0 | 2.0 | With hole Ø 8.5 mm, 4 pins, ESD electrostatical discharging | 3.0 | B |
| 091359S02 | Gris ≈ RAL 7004 | 30 x 30 | 8 | 4.0 | 2.0 | With hole Ø 8.5 mm, 4 pins | 3.0 | B |
| 091370 | Negro | 30 x 45 | 8 / 10 | 8.4 (7.3) | 2.0 | 4 pins | 3.0 | B |
| 091370S01 | Negro | 30 x 45 | 8 / 10 | 8.4 (7.3) | 2.0 | ESD electrostatical discharging, 4 pins | 3.0 | B |
| 091370S02 | Gris ≈ RAL 7004 | 30 x 45 | 8 / 10 | 8.4 (7.3) | 2.0 | 4 pins | 3.0 | B |
| 091371 | Negro | 30 x 30 | 8 | 7.6 (7.3) | 2.0 | New version 2, 1 cross | 3.0 | B |
| 091371S01 | Gris ≈ RAL 7004 | 30 x 30 | 8 | 7.6 (7.3) | 2.0 | New version 2, 1 cross | 3.0 | B |
