Cuarto de Vuelta con Carcasa Extendida 22.5 / 30, en Zamak Recubierto de Polvo Negro

Información sobre el producto "Cuarto de Vuelta con Carcasa Extendida 22.5 / 30, en Zamak Recubierto de Polvo Negro"

Color:
Insert: Black
Housing: Black
Seals: Black

Países de Entrega:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Descripción:

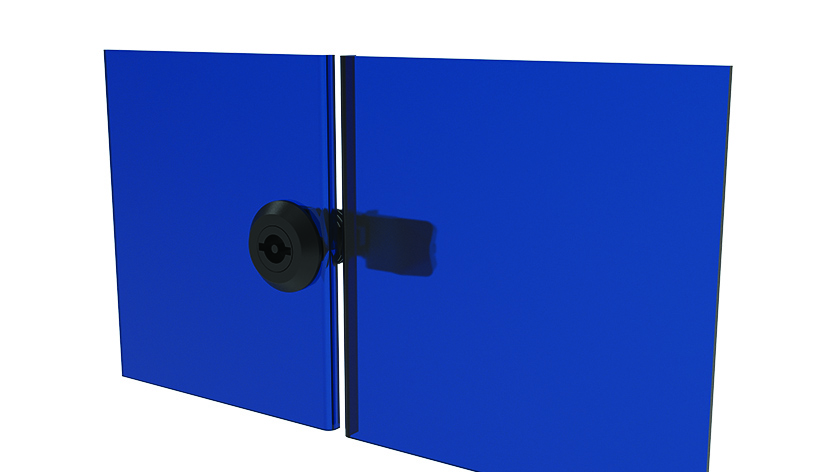

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Extender: Zinc die-cast
Nut: Zinc die-cast
Screw: Steel

Superficie:
Insert: Powder coated
Housing: Powder coated
Extender: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Consejo:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Cantidad por Paquete: 10 piezas
Peso (g): 52.6
Versión de Puerta: Derecha, izquierda

Variantes

ID de producto Tipo de Inserto
0810733 Double bit 3.0 mm
0810741 Double bit 4.0 mm
0810749 Double bit 5.0 mm
0810757 Slotted recess 2 x 4
0810765 Slotted recess 2 x 4 coin proof
0810773 Triangular 7.0 mm
0810781 Triangular 8.0 mm
0810789 Square 7.0 mm
0810797 Square 8.0 mm
0810805 Square 7.0 mm with slotted recess
0810813 Square 8.0 mm with slotted recess
0810821 Square 8.0 mm female
0810829 Female hexagon 8.0 mm
0810837 Female hexagon 9.0 mm
0810845 Female hexagon 8.0 mm with 3 mm pin
0810853 Male hexagon 10.0 mm
0810861 Triangular 10.0 mm with M5 screw hole
