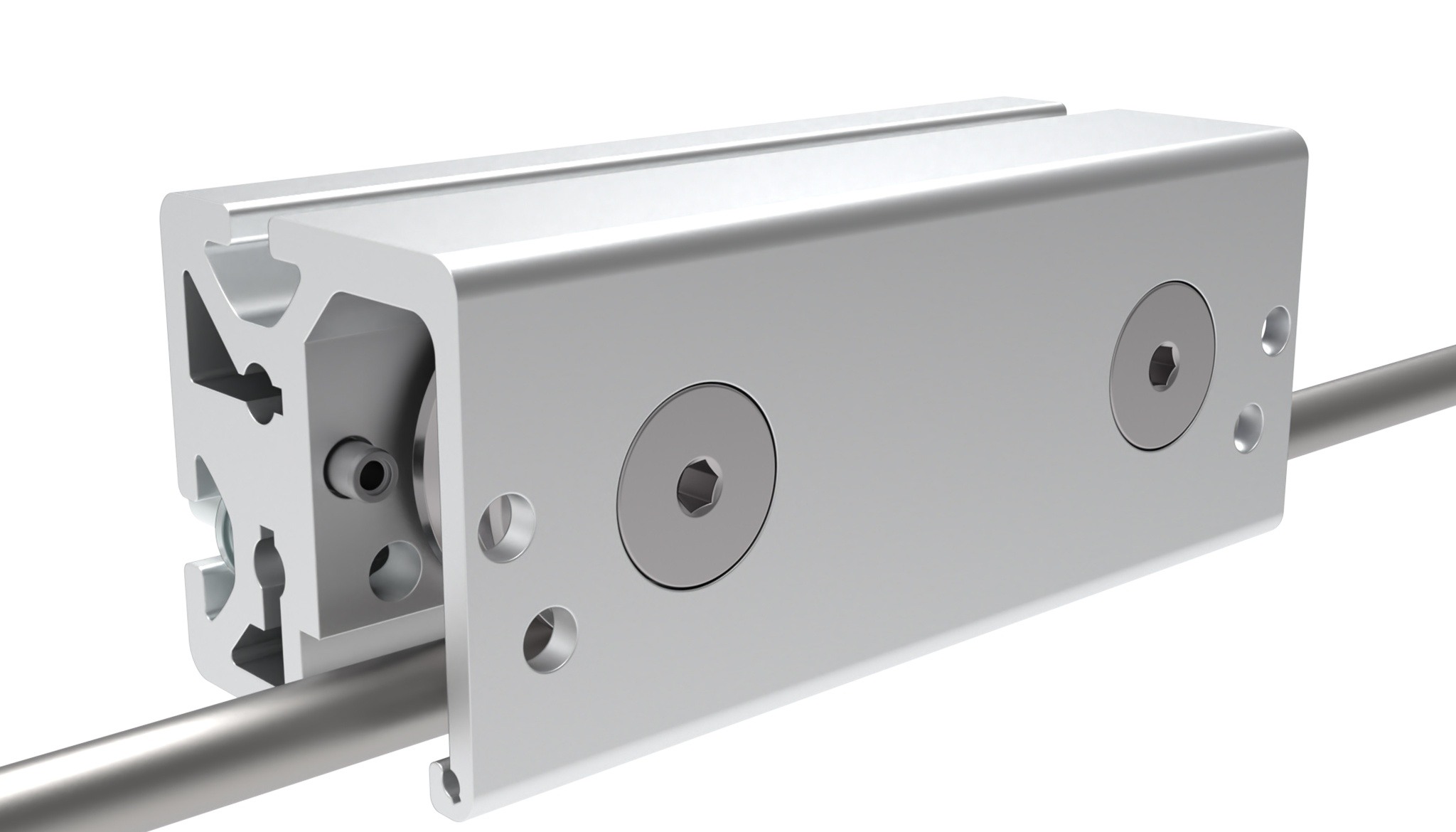

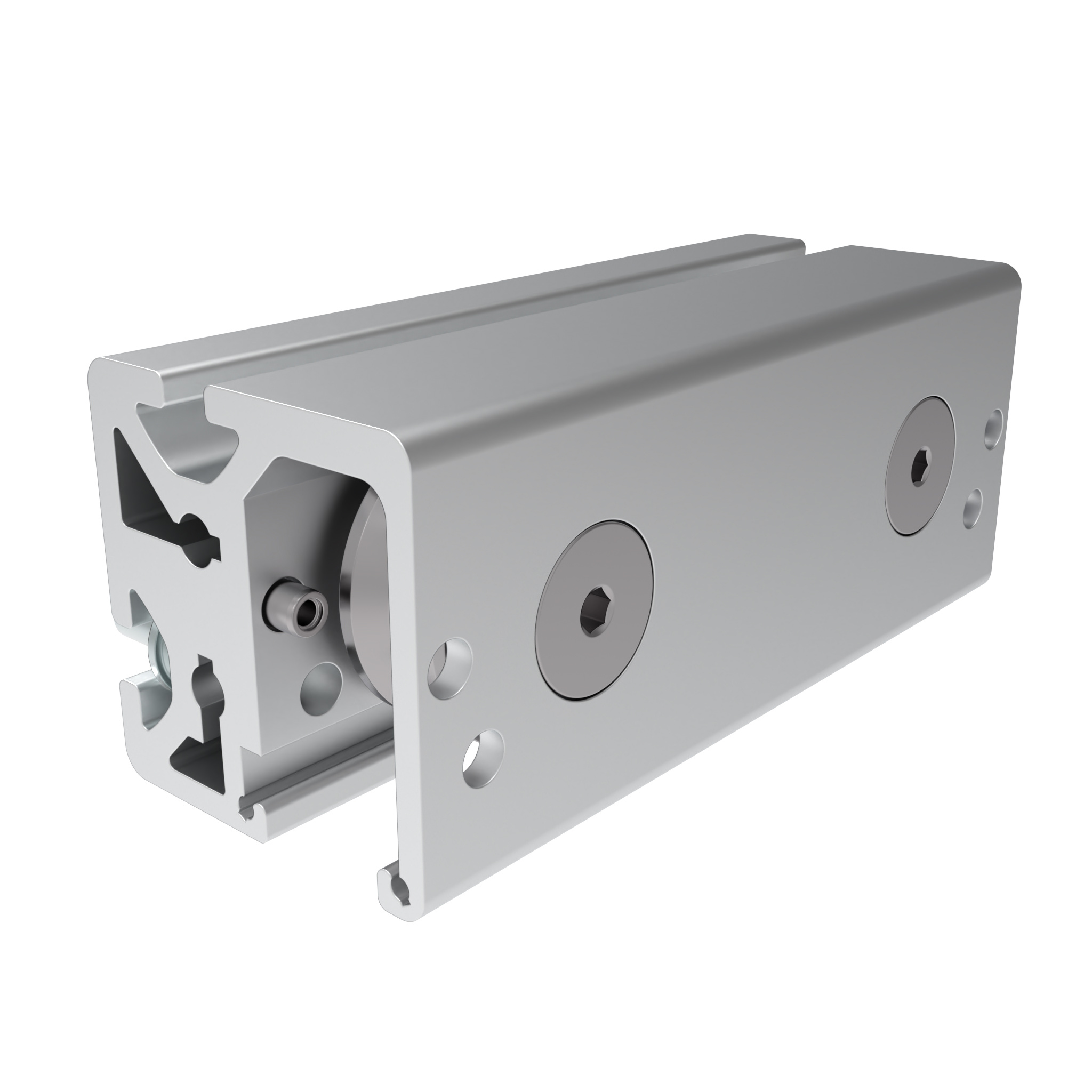

Double Bearing Unit 2 Rollers Centric Shaft Ø 14
Número de producto:
093CIUD142140S02
Información sobre el producto "Double Bearing Unit 2 Rollers Centric Shaft Ø 14"
Países de Entrega:
En todo el mundo
Description:
To build sliding carriages
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Completely pre-assembled from roller profile I slot 8
Material:
Roller: Steel
Screws: Steel
Washers: Steel
Tension pins: Steel
Profile: Aluminum
Surface:
Roller: Zinc plated
Screws: Zinc plated
Washers: Zinc plated
Tension pins: Zinc plated
Profile: Anodized
Tip:
Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
En todo el mundo
Description:
To build sliding carriages
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Completely pre-assembled from roller profile I slot 8
Material:
Roller: Steel
Screws: Steel
Washers: Steel
Tension pins: Steel
Profile: Aluminum
Surface:
Roller: Zinc plated
Screws: Zinc plated
Washers: Zinc plated
Tension pins: Zinc plated
Profile: Anodized
Tip:
Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
| Cantidad por Paquete: | 1 pieza |
|---|---|
| Model: | Premontado, acero |
| Numero de PA: | 170868 |
| Número de Arancel Aduanero de Exportación: | 84832000 |
| Peso (g): | 748.0 |
| Zolltarifnummer: | 84832000000 |
