Grounding Connector (Set)
Número de producto:
093099S03
Información sobre el producto "Grounding Connector (Set)"
Color:
Cover caps: Black
Países de Entrega:
En todo el mundo
Descripción:

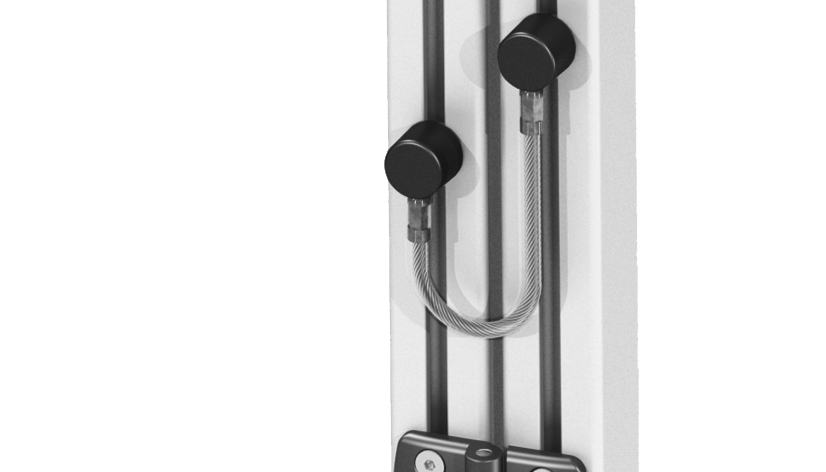

Para conectar eléctricamente piezas móviles entre sí como cable de tierra flexible, y para crear conexiones conductoras de electricidad ESD entre bastidores yuxtapuestos como conexión equipotencial; gran sección transversal del conductor (16 mm²), capacidad de carga de corriente de 120 A máx.
Material:
Earth lead: Copper
Assembly material: Steel
Cover caps: Plastic PA, glass fiber reinforced
Set 1:

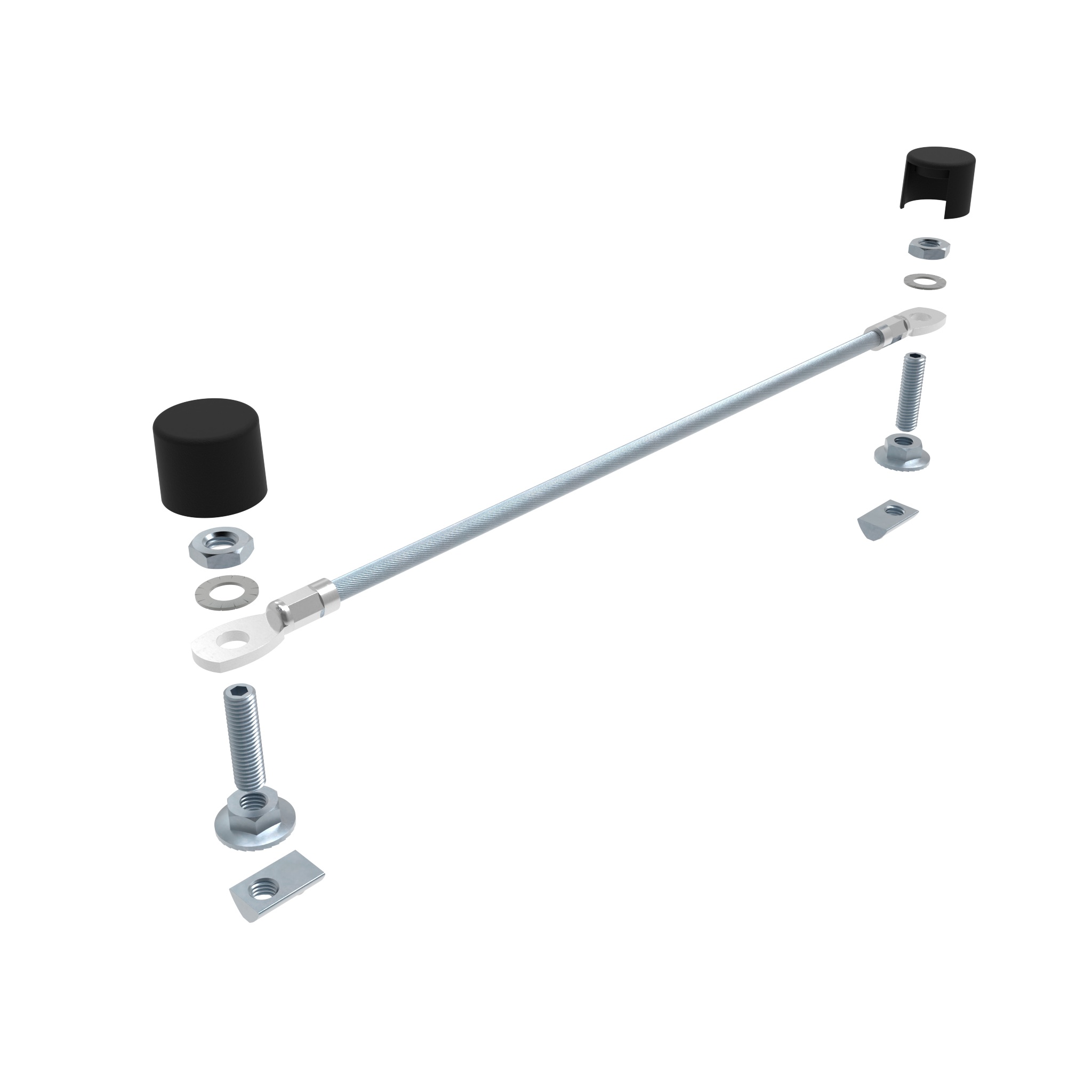

(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 6 - M6,
2 threaded pins DIN 916 - M6 x 22 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M6 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 6,11,
2 hexagon nuts DIN 439 B - M6 (M = 25 Nm),
2 cover caps
Set 2:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 300 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Set 3:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Set 4:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 10 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Surface:
Earth Lead: Tin plated
Assembly material: Zinc plated
Cover caps: Black
Países de Entrega:
En todo el mundo
Descripción:
Para conectar eléctricamente piezas móviles entre sí como cable de tierra flexible, y para crear conexiones conductoras de electricidad ESD entre bastidores yuxtapuestos como conexión equipotencial; gran sección transversal del conductor (16 mm²), capacidad de carga de corriente de 120 A máx.
Material:
Earth lead: Copper
Assembly material: Steel
Cover caps: Plastic PA, glass fiber reinforced
Set 1:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 6 - M6,
2 threaded pins DIN 916 - M6 x 22 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M6 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 6,11,
2 hexagon nuts DIN 439 B - M6 (M = 25 Nm),
2 cover caps
Set 2:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 300 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Set 3:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Set 4:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 10 - M8,
2 threaded pins DIN 916 - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN 6923 - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN 439 B - M8 (M = 25 Nm),
2 cover caps
Surface:
Earth Lead: Tin plated
Assembly material: Zinc plated
| (ECLASS 6.0): | 27149205 |
|---|---|
| (ECLASS 7.0): | 27149205 |
| (ECLASS 8.0): | 27140326 |
| (ECLASS 9.0): | 27140326 |
| (ECLASS 10.0): | 27140326 |
| (ECLASS 11.0): | 27140326 |
| (ECLASS 12.0): | 27140326 |
| (ECLASS 13.0): | 27140326 |
| Cantidad por Paquete: | 10 conjuntos |
| Model: | Slot 6, 8, 10 |
| Numero de PA: | 142051 |
| Número de Arancel Aduanero de Exportación: | 85444995 |
| Peso (g): | 145.0 |
| Zolltarifnummer: | 85444995000 |
