Grounding Connector (Set)

Descripción:

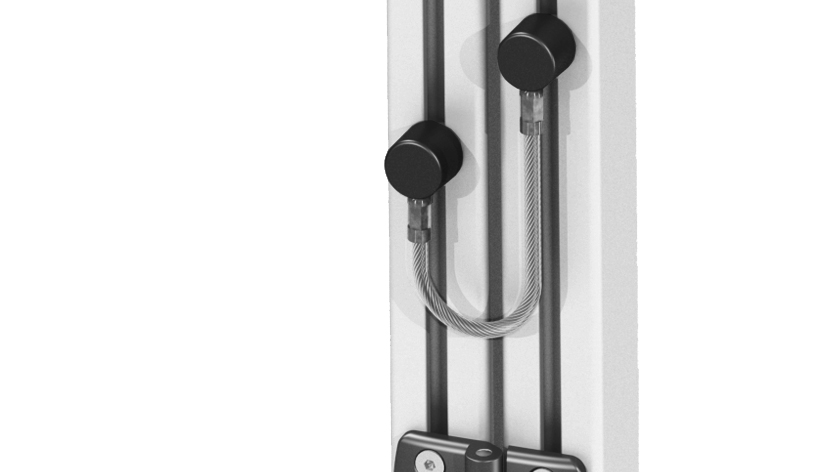

Para conectar eléctricamente piezas móviles entre sí como cable de tierra flexible, y para crear conexiones conductoras de electricidad ESD entre bastidores yuxtapuestos como conexión equipotencial; gran sección transversal del conductor (16 mm²), capacidad de carga de corriente de 120 A máx.

Material:
Earth lead: Copper
Assembly material: Steel
Cover caps: Plastic PA, glass fiber reinforced

Surface:
Earth Lead: Tin plated
Assembly material: Zinc plated

Color:
Cover caps: Black

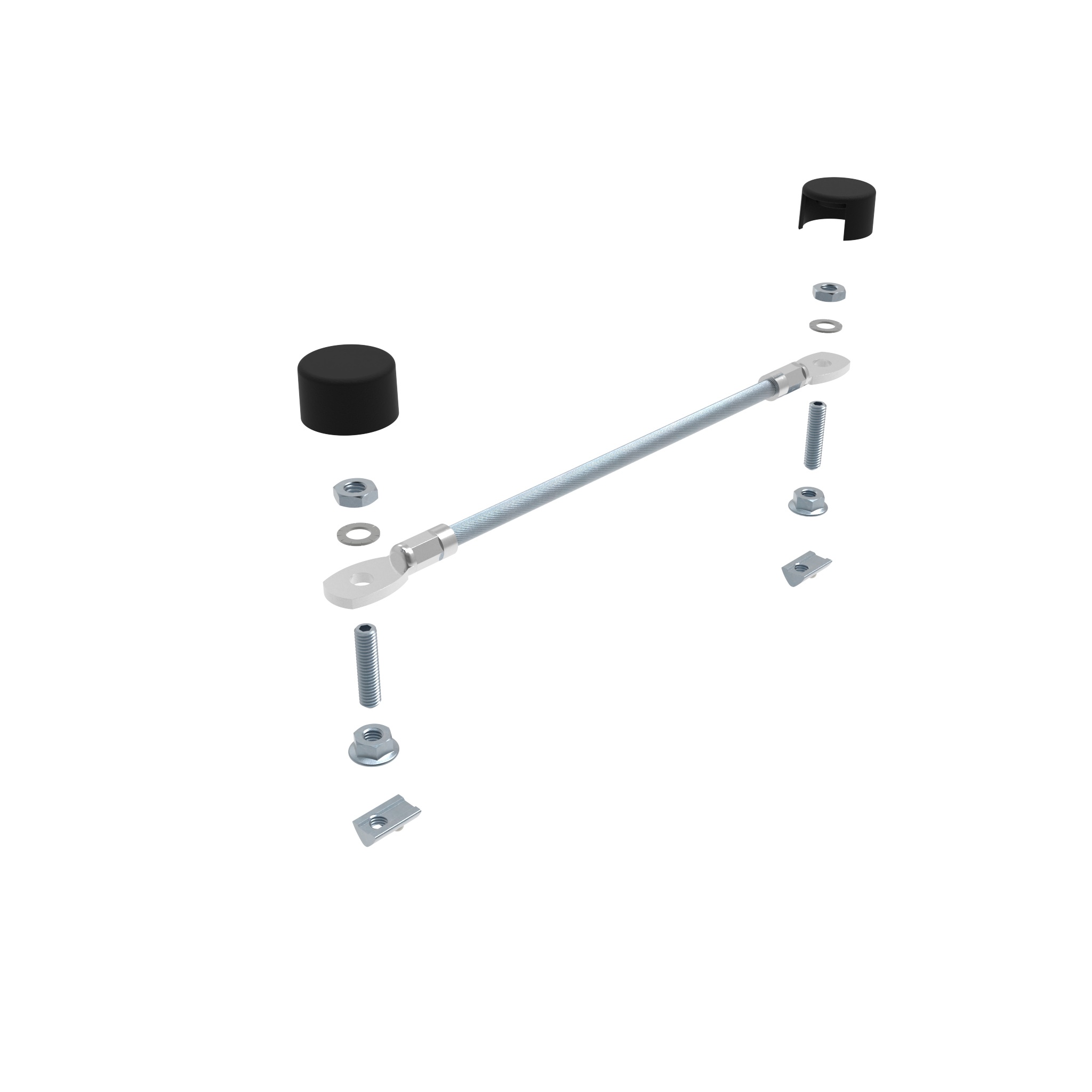

Set 1:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 6 - M6,
2 threaded pins DIN EN ISO 4029 (DIN 916) - M6 x 22 (M = 10 Nm),
2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M6 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 6,11,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6 (M = 25 Nm),
2 cover caps

Set 2:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm),
1 earth lead 300 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm),
2 cover caps

Set 3:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 8 - M8,
2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm),
2 cover caps

Set 4:
(Listed in assembly sequence incl. tightening torques):
2 T-slot nuts - slot 10 - M8,
2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm),
2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm),
1 earth lead 200 mm,
2 serrated lock washers DIN 6798 - 8.4,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm),
2 cover caps
