Gusseted Connection Angle AL 4 Hole, 1 Slot Version

Información sobre el producto "Gusseted Connection Angle AL 4 Hole, 1 Slot Version"

Color:
Color alu, negro

Países de Entrega:
Norteamérica

Description:

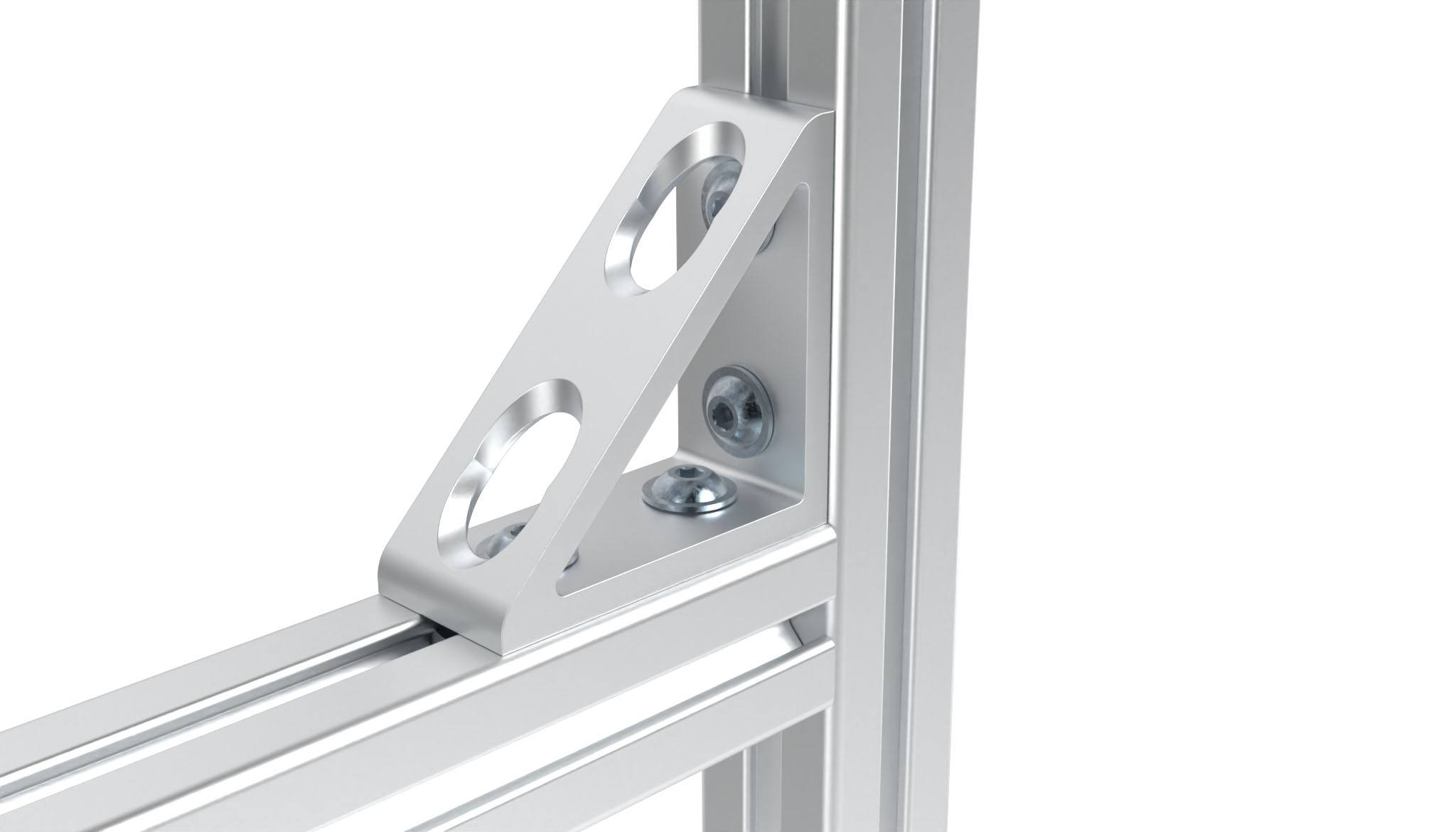

To connect two aluminum profiles at right angles

Material:
Aluminio

Superficie:
Anodizado

Cantidad por Paquete:	10 piezas
Model:	Aluminio
Peso (g):	123.8
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Número de Arancel Aduanero de Exportación:	73269098
Numero de ERP:	145656

Variantes

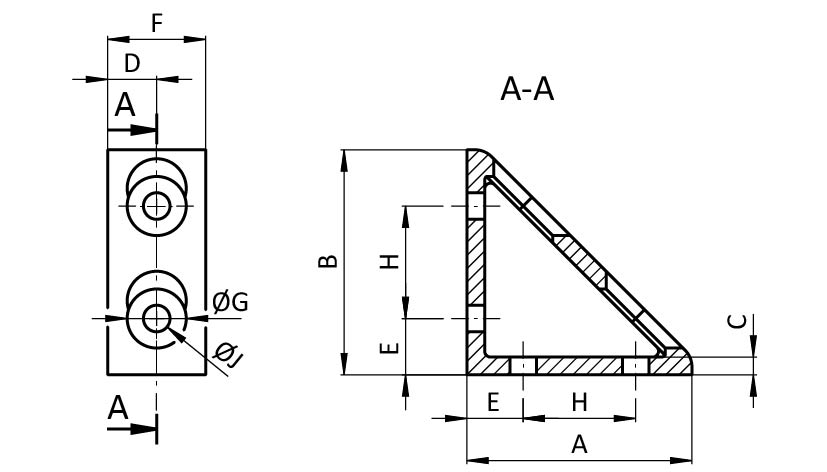

Número de producto	D (mm)	F (mm)	H (mm)	A (mm)	B (mm)	C (mm)	Color	Cuadrícula	E (mm)	G (mm)	J (mm)
093W8103N06	11.2 (0.44")	22.4 (0.88")	25.4 (1")	50.8 (2.00")	50.8 (2.00")	4.8 (0.19")	Color alu	25.4 (1")	12.7 (0.50")	12.7 (0.50")	6.9 (0.27")
093W8103N06S	11.2 (0.44")	22.4 (0.88")	25.4 (1")	50.8 (2.00")	50.8 (2.00")	4.8 (0.19")	Negro	25.4 (1")	12.7 (0.50")	12.7 (0.50")	6.9 (0.27")
093W8302N08	13.5	27.0	30.0	60.0	60.0	5.0	Color alu	30	14.0	15.0	7.0
093W8302N08S	13.5	27.0	30.0	60.0	60.0	5.0	Negro	30	14.0	15.0	7.0
093W8383N08	16.5 (0.65")	33.0 (1.30")	38.1 (1.50")	76.2 (3.00")	76.2 (3.00")	6.4 (0.25")	Color alu	38.1 (1.5")	20.1 (0.79")	19.1 (0.75")	8.9 (0.35")
093W8383N08S	16.5 (0.65")	33.0 (1.30")	38.1 (1.50")	76.2 (3.00")	76.2 (3.00")	6.4 (0.25")	Negro	38.1 (1.5")	20.1 (0.79")	19.1 (0.75")	8.9 (0.35")
093W8403N08	18.0	36.0	40.0	80.0	80.0	6.0	Color alu	40	20.0	20.0	9.0
093W8403N08S	18.0	36.0	40.0	80.0	80.0	6.0	Negro	40	20.0	20.0	9.0
093W8451N10	20.5	41.0	45.0	90.0	90.0	6.0	Color alu	45	20.0	22.5	9.0
093W8451N10S	20.5	41.0	45.0	90.0	90.0	6.0	Negro	45	20.0	22.5	9.0

Descargas CAD

Certificados

Certificado RoHS

Certificado REACH

Certificado POP

Certificado de Minerales en Conflicto
