Juego de ensamble para patas pivotantes
Precio normal:
0,00 €
Número de producto:
098XAMS03
Cantidad por Paquete:
100 conjuntos
Información sobre el producto "Juego de ensamble para patas pivotantes"

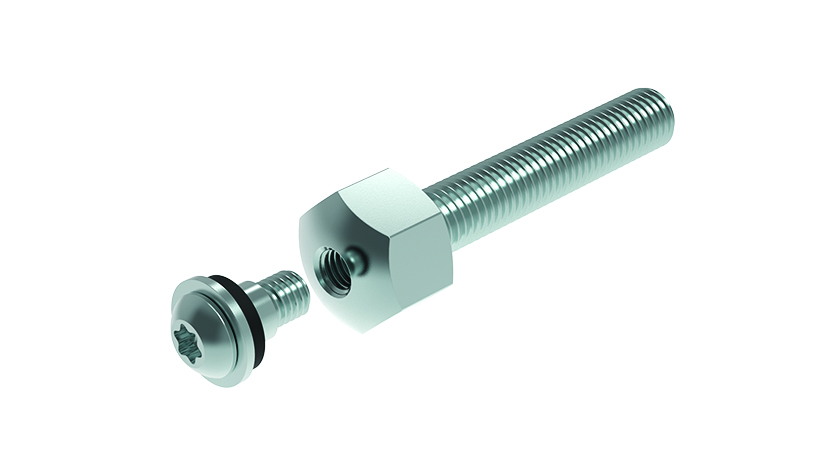

Assembly Set 1:

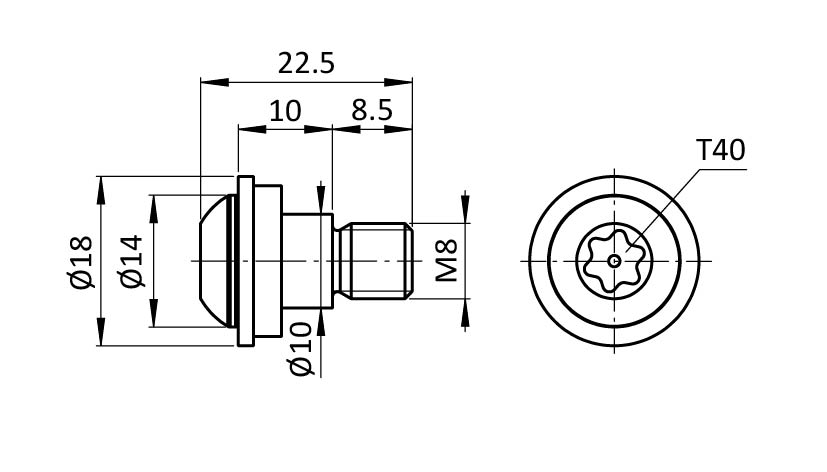

1 collar screw with shank - M8 x 18 - steel, zinc plated,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated,
1 bumper washer - rubber EPDM
Assembly Set 2:
1 collar screw with shank - M8 x 18 - stainless steel,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel,
1 bumper washer - rubber EPDM
Países de Entrega:
En todo el mundo
Description:
To assemble pivot feet
Material:
Acero / acero inoxidable, caucho EPM
Superficie:
Galvanizado / liso
Tip:
Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
1 collar screw with shank - M8 x 18 - steel, zinc plated,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated,
1 bumper washer - rubber EPDM
Assembly Set 2:
1 collar screw with shank - M8 x 18 - stainless steel,
1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel,
1 bumper washer - rubber EPDM
Países de Entrega:
En todo el mundo
Description:
To assemble pivot feet
Material:
Acero / acero inoxidable, caucho EPM
Superficie:
Galvanizado / liso
Tip:
Compatible threaded rod ST metric for pivot feet see 098AM12066M,
Compatible threaded rod SS metric for pivot feet see 098AM12066E,
Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M,
Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
| Cantidad por Paquete: | 100 conjuntos |
|---|---|
| Model: | Acero inoxidable |
| Peso (g): | 14.8 |
| ECLASS 6.0: | 90900191 |
| ECLASS 7.0: | 90900191 |
| ECLASS 8.0: | 90900191 |
| ECLASS 9.0: | 90900191 |
| ECLASS 10.0: | 90900191 |
| ECLASS 11.0: | 90900191 |
| ECLASS 12.0: | 90900191 |
| ECLASS 13.0: | 90900191 |
| ECLASS 14.0: | 90900191 |
| ECLASS 15.0: | 90900191 |
| ECLASS 16.0: | 23010791 |
| Número de Arancel Aduanero de Exportación: | 73181595 |
| Numero de ERP: | 105202 |
