Lift Door Guide (Set)

Información sobre el producto "Lift Door Guide (Set)"

Color:
Housing: Black

Países de Entrega:
En todo el mundo

Description:

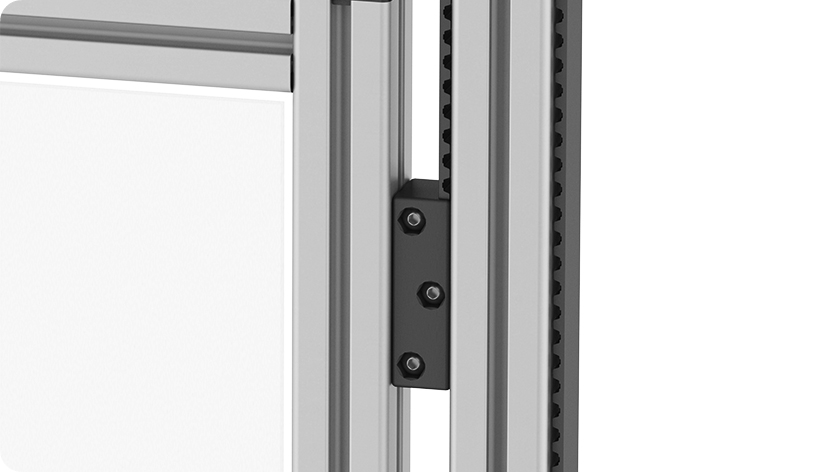

To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)

Material:
Housing: Plastic POM
Assembly set: Steel

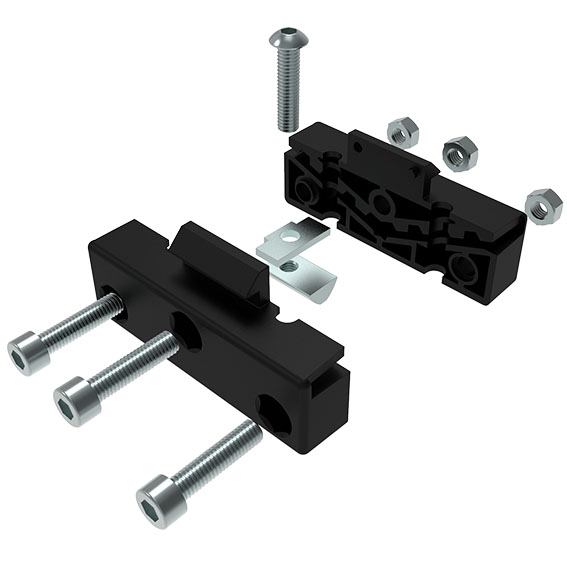

Set:
1 two-part housing,
1 inlay sheet,
1 screw ISO 7380 - M6 x 25,
3 hexagon nuts DIN 934 - M6,
3 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 T-slot nuts - Nut 8 - M 6

Superficie:
Conjunto de montaje: Galvanizado

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Cantidad por Paquete: 10 conjuntos
Model: Plástico POM
Peso (g): 97.0

Variantes

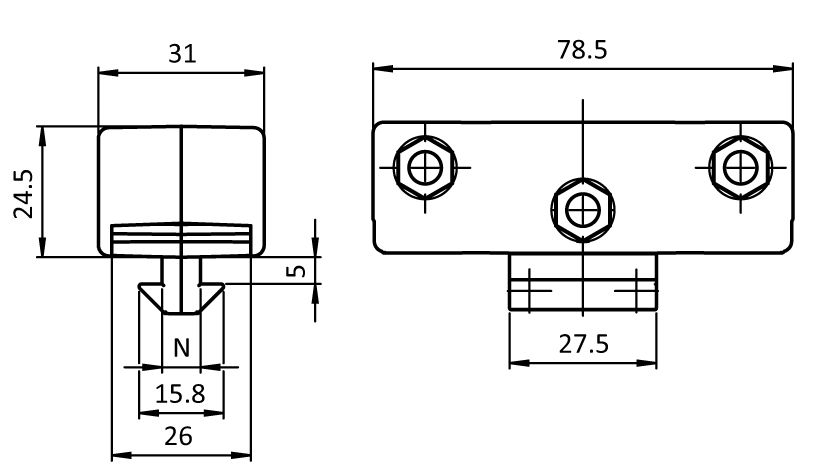

ID de producto Profile Ranura N (mm)
093087S01 I 8
