Monitor Mount

Información sobre el producto "Monitor Mount"

Color:
Monitor bracket: Black
Articulation piece: Gray
Centering piece: Plain

Países de Entrega:
En todo el mundo

Description:

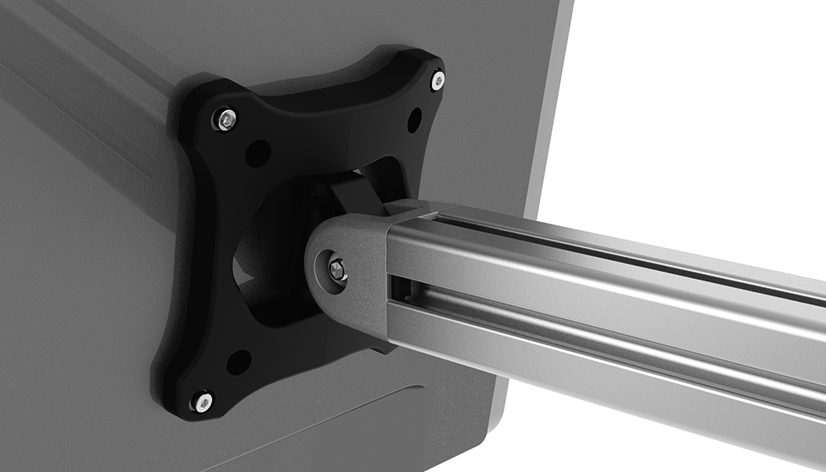

To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibility

Material:
Monitor bracket: Plastic PA, glass fiber reinforced
Articulation piece: Plastic PA, glass fiber reinforced
Centering piece: Plastic PA, glass fibre reinforced
Mounting material: Steel

Especiales:
Otros colores, otros tamaños bajo pedido

Surface:
Mounting material: Zinc plated

Tip:
Compatible Adapter Plate see 061SAP40H

Zolltarifnummer:
39269097900
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Cantidad por Paquete: 1 pieza
Model: Swivelling
Peso (g): 200.0

Variantes

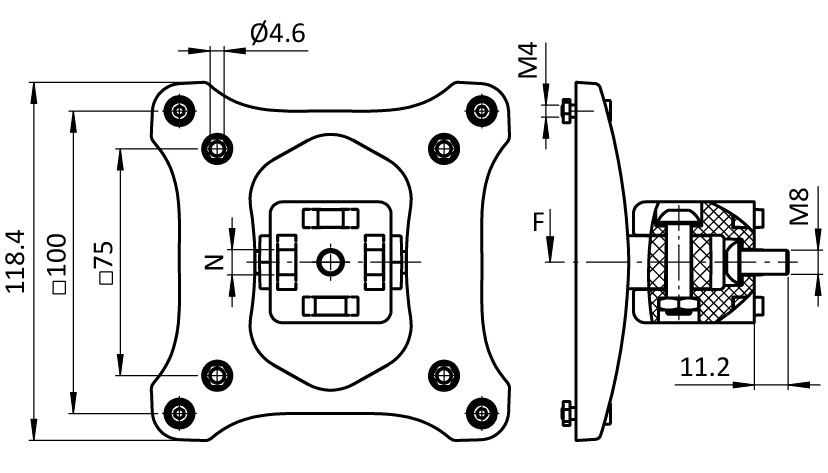

ID de producto Ranura N (mm) F (N)
061SM7510040 8 / 10 48

Descargas CAD

Certificados
