Monitor Mounting Plate
Precio normal:
0,00 €
Número de producto:
061SM751004045
Cantidad por Paquete:
1 juego
Información sobre el producto "Monitor Mounting Plate"
Color:
Monitor mounting plate: Black
Países de Entrega:
En todo el mundo
Description:

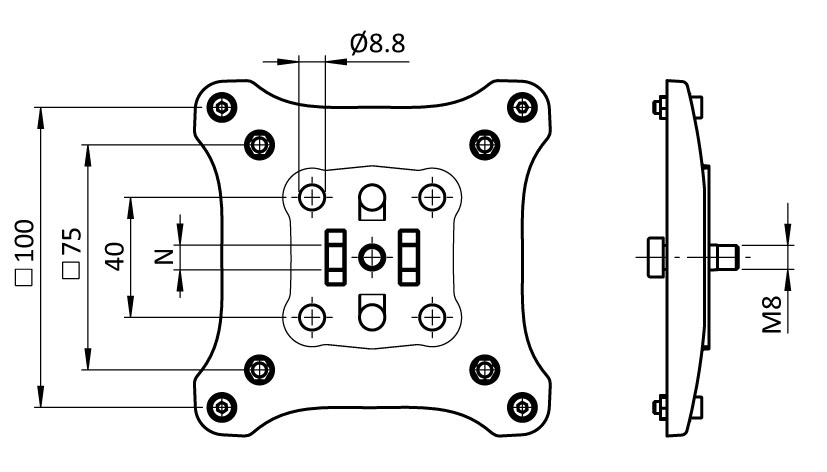

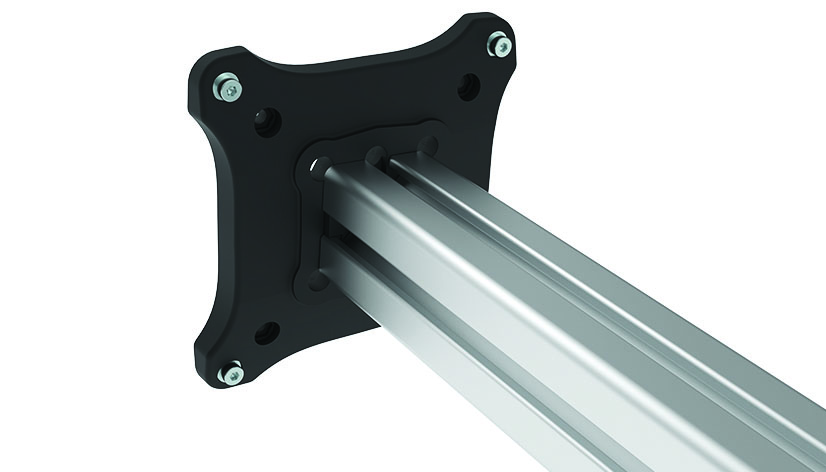

To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10
Material:
Monitor mounting plate: Plastic PA, glass fiber reinforced
Set:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers
assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering pieces
Especiales:
Otros colores bajo pedido
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Monitor mounting plate: Black
Países de Entrega:
En todo el mundo
Description:
To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10
Material:
Monitor mounting plate: Plastic PA, glass fiber reinforced
Set:
1 monitor mounting plate
1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers
assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering pieces
Especiales:
Otros colores bajo pedido
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
| Cantidad por Paquete: | 1 juego |
|---|---|
| Peso (g): | 123.0 |
| ECLASS 6.0: | 19140390 |
| ECLASS 7.0: | 19140390 |
| ECLASS 8.0: | 19140390 |
| ECLASS 9.0: | 19140390 |
| ECLASS 10.0: | 19140390 |
| ECLASS 11.0: | 19140392 |
| ECLASS 12.0: | 19140392 |
| ECLASS 13.0: | 19140392 |
| Zolltarifnummer: | 39269097900 |
| Número de Arancel Aduanero de Exportación: | 39269097 |
| Numero de ERP: | 149795 |
