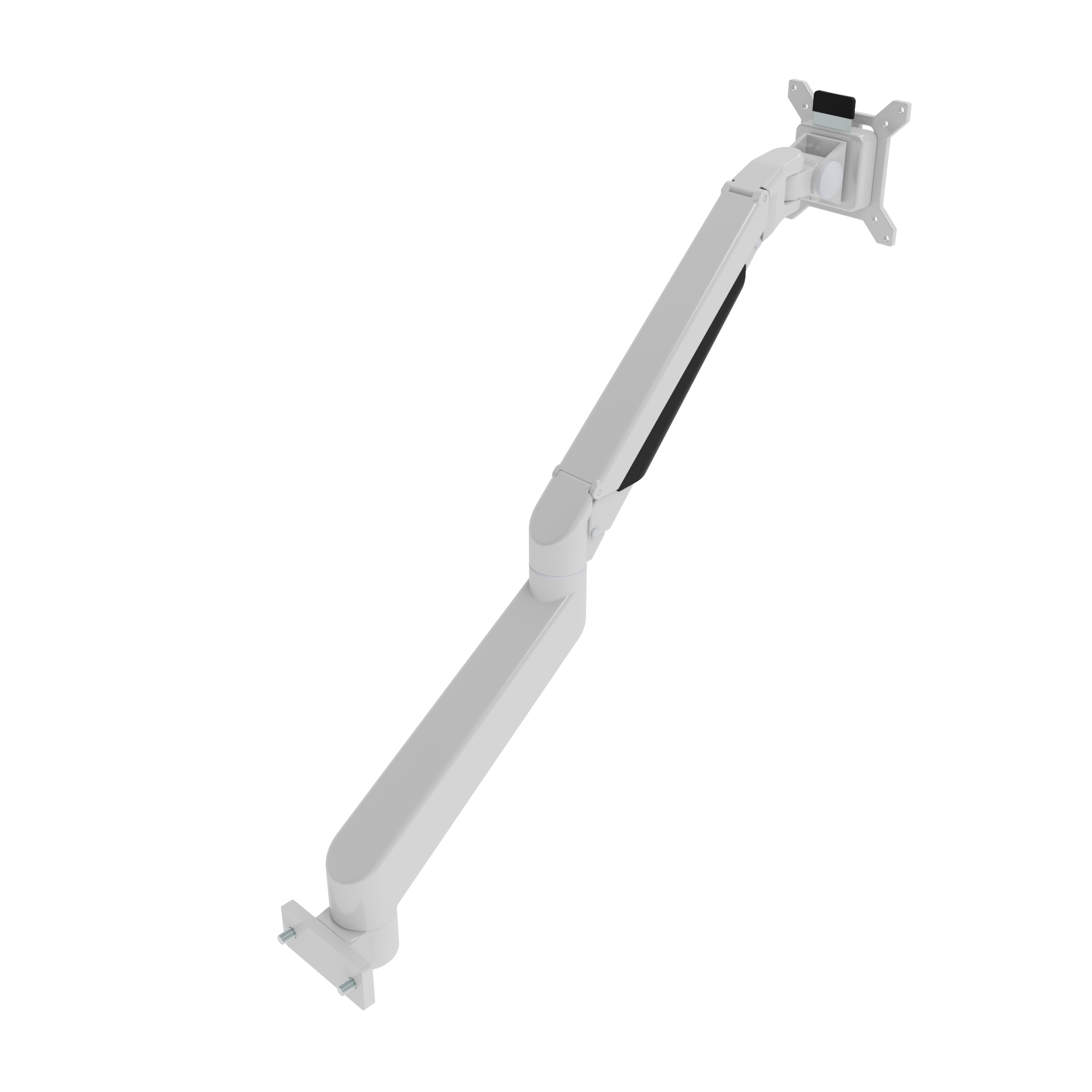

Monitor Support 5-axis, Height Adjustable (Set)
Número de producto:
6MHM75100D40
Información sobre el producto "Monitor Support 5-axis, Height Adjustable (Set)"
Color:
Mounting plate VESA, removable:
Alu color / black
Monitor mount: Alu color
Cable management cover: Black
Bearing shims and bushes: Black
Mounting flange: Alu color
Mounting adapter: alu color
Países de Entrega:
En todo el mundo
Description:
For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible;
Adjustable viewing angle and height, screen rotatable by 90°;
360° mounting flange for horizontal and vertical attachment with mounting adapter
Material:
Mounting plate VESA, removable:
Steel / Plastic
Monitor mount: Die-cast aluminum
Cable management cover: Plastic
Bearing shims and bushes: Plastic
Mounting flange: Die-cast aluminum
Mounting adapter: Die-cast aluminum
Screws: Steel
Set:
1 mounting plate VESA with 4 screws – M4 × 12, Phillips
1 monitor support 5-axis with cable management cover
1 mounting flange
1 mounting screw DIN 6912 – M8 × 25
1 mounting adapter
2 mounting screws DIN 6912 – M8 × 16
1 hexagon key, AF 3
1 hexagon key, AF 4
Surface:
Mounting plate VESA, removable: Lacquered
Monitor mount: Lacquered
Mounting flange: Lacquered
Mounting adapter: Lacquered
Screws: Zinc plated
Zolltarifnummer:
76169990990
Mounting plate VESA, removable:
Alu color / black
Monitor mount: Alu color
Cable management cover: Black
Bearing shims and bushes: Black
Mounting flange: Alu color
Mounting adapter: alu color
Países de Entrega:
En todo el mundo
Description:
For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible;
Adjustable viewing angle and height, screen rotatable by 90°;
360° mounting flange for horizontal and vertical attachment with mounting adapter
Material:
Mounting plate VESA, removable:
Steel / Plastic
Monitor mount: Die-cast aluminum
Cable management cover: Plastic
Bearing shims and bushes: Plastic
Mounting flange: Die-cast aluminum
Mounting adapter: Die-cast aluminum
Screws: Steel
Set:
1 mounting plate VESA with 4 screws – M4 × 12, Phillips
1 monitor support 5-axis with cable management cover
1 mounting flange
1 mounting screw DIN 6912 – M8 × 25
1 mounting adapter
2 mounting screws DIN 6912 – M8 × 16
1 hexagon key, AF 3
1 hexagon key, AF 4
Surface:
Mounting plate VESA, removable: Lacquered
Monitor mount: Lacquered
Mounting flange: Lacquered
Mounting adapter: Lacquered
Screws: Zinc plated
Zolltarifnummer:
76169990990
| (ECLASS 6.0): | 19140390 |
|---|---|
| (ECLASS 7.0): | 19140390 |
| (ECLASS 8.0): | 19140390 |
| (ECLASS 9.0): | 19140390 |
| (ECLASS 10.0): | 19140390 |
| (ECLASS 11.0): | 19140392 |
| (ECLASS 12.0): | 19140392 |
| (ECLASS 13.0): | 19140392 |
| Cantidad por Paquete: | 1 juego |
| Model: | 5 ejes |
| Peso (g): | 2930.0 |
