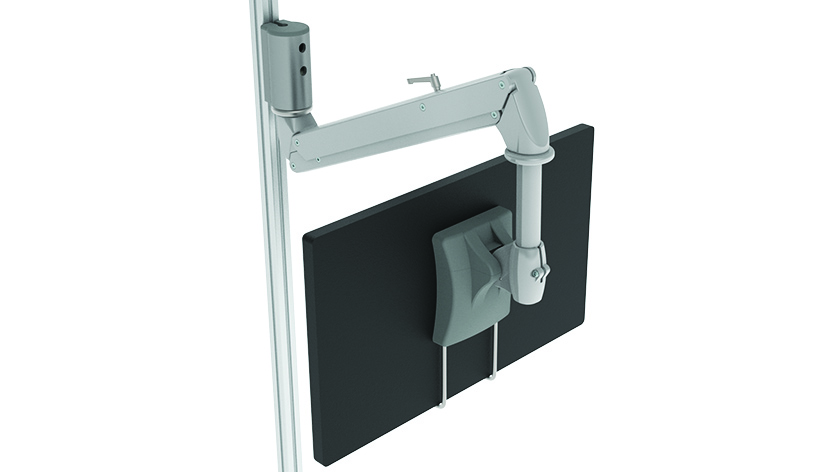

Monitor Suspension Arm SKY 600, Height Adjustable with Locking (Set)

Información sobre el producto "Monitor Suspension Arm SKY 600, Height Adjustable with Locking (Set)"

Color:
Monitor suspension arm: Gray
Cable management cover: Gray
Mounting flange: Alu color

Países de Entrega:
En todo el mundo

Description:

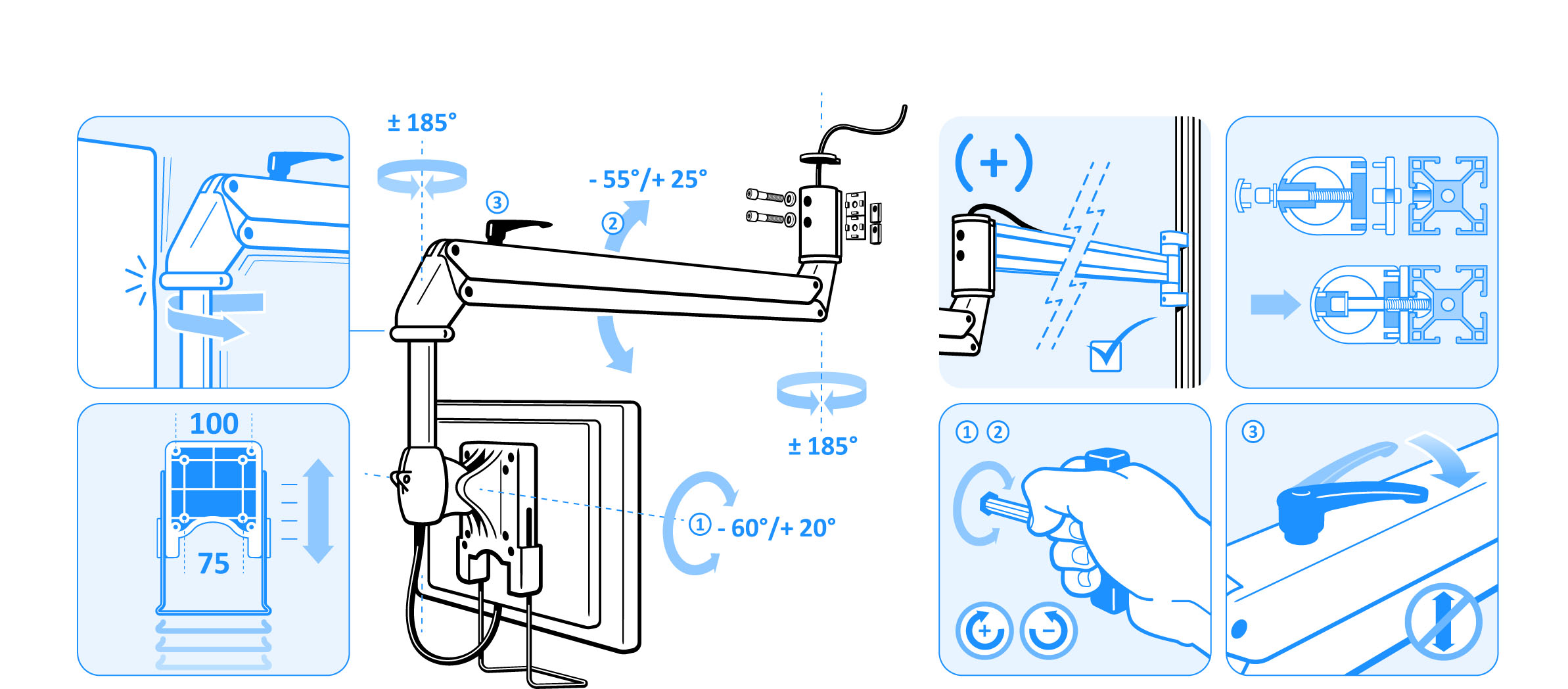

For mounting of heavy monitors with 6 - 12 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height;
360° mounting flange can be attached lateral or transverse to the profile

Material:
Monitor suspension arm: Steel / aluminum / plastic
Cable management cover: Plastic
Mounting flange: Aluminum die-cast
Screws: Steel

Set:
1 monitor suspension arm incl. cable management cover
1 mounting flange incl. bolt and cover cap
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 30 (for T-slot nut)
2 centering plates - slot 8
2 centering plates - slot 10
2 anti-loss washers for screws M8
2 T-slot nuts - slot 8 - M8
2 T-slot nuts - slot 10 - M8
1 connecting ring
1 washer
4 screws DIN 799 - M4 x 16

Surface:
Monitor suspension arm: Lacquered
Mounting flange: Lacquered
Screws: Zinc plated

Zolltarifnummer:
76169990990
(ECLASS 6.0): 19140390
(ECLASS 7.0): 19140390
(ECLASS 8.0): 19140390
(ECLASS 9.0): 19140390
(ECLASS 10.0): 19140390
(ECLASS 11.0): 19140392
(ECLASS 12.0): 19140392
(ECLASS 13.0): 19140392
Cantidad por Paquete: 1 juego
Model: 4 ejes
Peso (g): 10000.2

Variantes

ID de producto Ranura N (mm) Profile
6SHM75100S40IF 8 / 10 I
