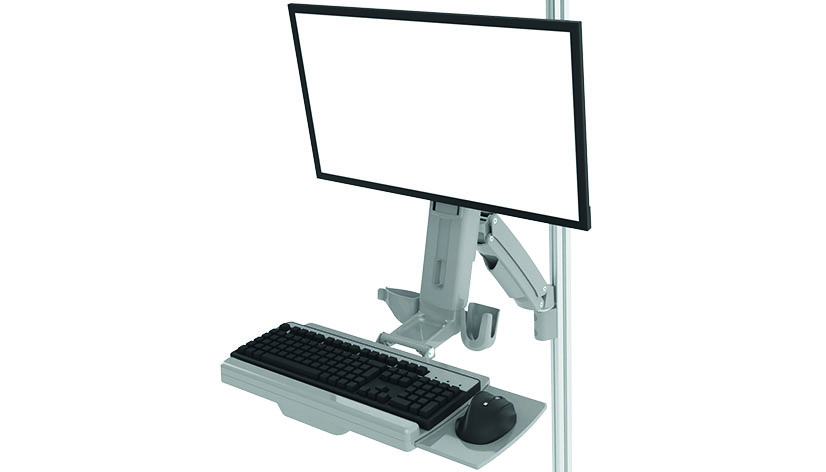

Monitor Work Station SIT / STAND 4-axis, Profile Attachment (Set)
Precio normal:
0,00 €
Número de producto:
6MHM75100S40IT
Cantidad por paquete:
1 pieza
Descripción:

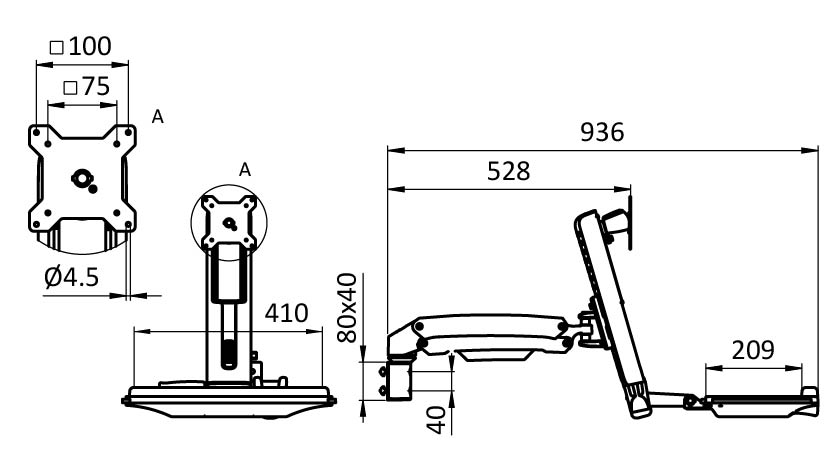

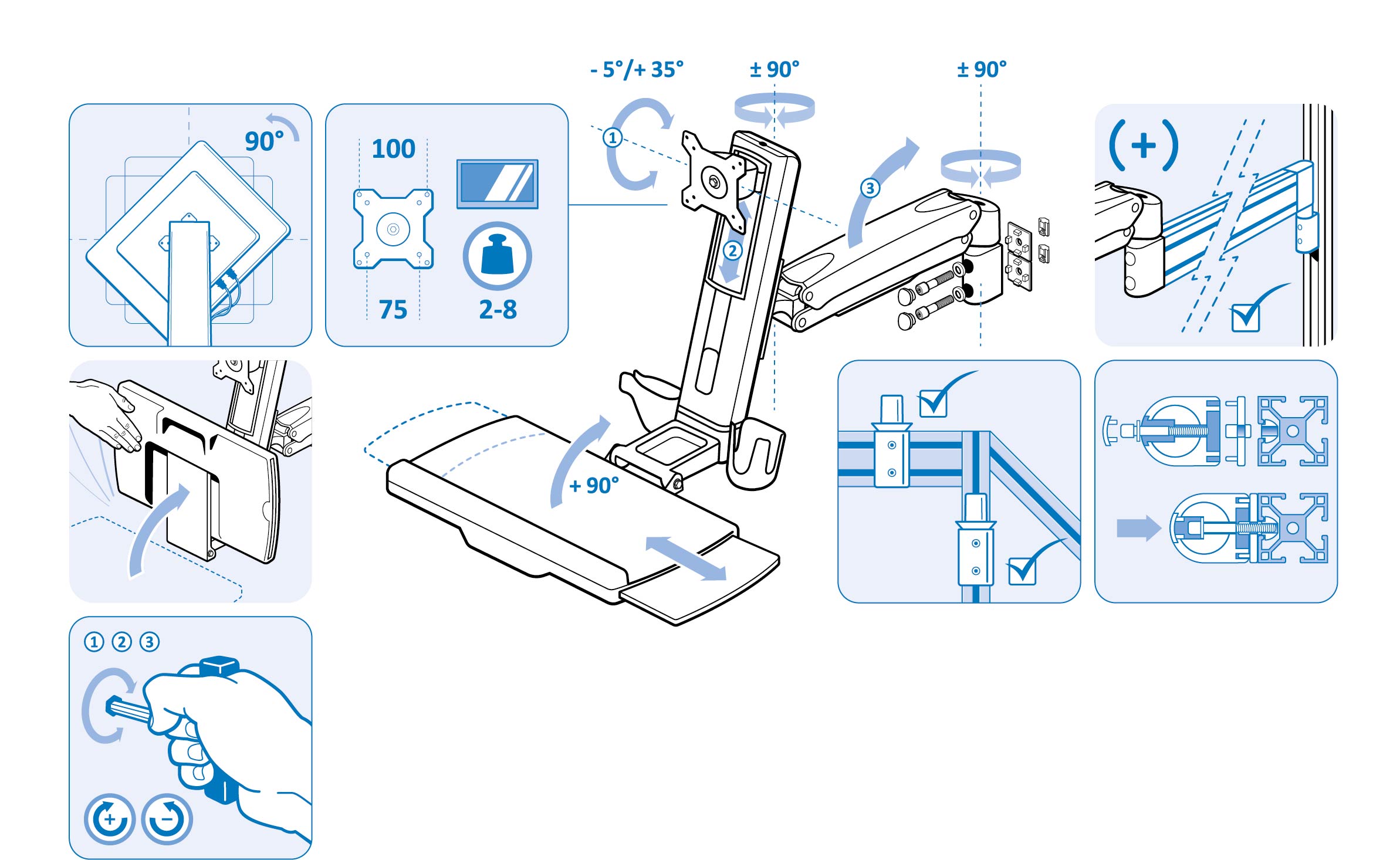

For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height;
Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse;
360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threaded
For mounting of monitors with 2 - 8 kg, mounting plate VESA MIS-D 75/100 compatible, adjustable viewing angle and height;
Fold-up holder with wrist rest for keyboard up to 2.5 kg, incl. left or right pull-out shelf for mouse, as well as holders for hand scanner and mouse;
360° mounting flange can be attached lateral, transverse, or on the face of the profile, if attached on the front face, the core hole of the respective profile must be M8 threaded
Material:
Monitor Work Station: Steel / aluminum / plastic
Cable management cover: Plastic
Mounting flange: Aluminum die-cast
Screws: Steel
Surface:
Monitor Work Station: Powder coated
Mounting flange: Powder coated
Screws: Zinc plated
Color:
Monitor Work Station: Gray
Cable management cover: Gray
Mounting flange: Alu color
Set:
1 monitor work station incl. keyboard holder and cable management cover
1 mounting flange incl. bolt and cover cap
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates - slot 8
2 centering plats - slot 10
2 T-slot nuts - slot 8 - M8
2 T-slot nuts - slot 10 - M8
Países de Entrega:
En todo el mundo
Monitor Work Station: Steel / aluminum / plastic
Cable management cover: Plastic
Mounting flange: Aluminum die-cast
Screws: Steel
Surface:
Monitor Work Station: Powder coated
Mounting flange: Powder coated
Screws: Zinc plated
Color:
Monitor Work Station: Gray
Cable management cover: Gray
Mounting flange: Alu color
Set:
1 monitor work station incl. keyboard holder and cable management cover
1 mounting flange incl. bolt and cover cap
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut)
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole)
2 washers 8-FSt
2 centering plates - slot 8
2 centering plats - slot 10
2 T-slot nuts - slot 8 - M8
2 T-slot nuts - slot 10 - M8
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 1 pieza |
|---|---|
| Model: | 4 ejes |
| Peso (g): | 9520.0 |
| Numero de ERP: | 147834 |
Retratos de productos
Clasificación
- ECLASS 6.0
- 19140390
- ECLASS 7.0
- 19140390
- ECLASS 8.0
- 19140390
- ECLASS 9.0
- 19140390
- ECLASS 10.0
- 19140390
- ECLASS 11.0
- 19140392
- ECLASS 12.0
- 19140392
- ECLASS 13.0
- 19140392
- Zolltarifnummer
- 73269098900
- Número de Arancel Aduanero de Exportación
- 73269098
