Mounting Clamp D28 (Set)
Precio normal:
0,00 €
Número de producto:
099RV28H
Cantidad por paquete:
10 piezas
Descripción:

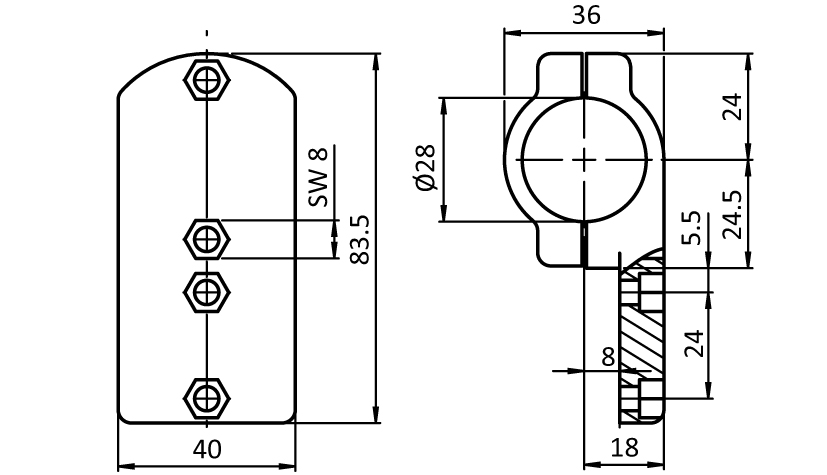

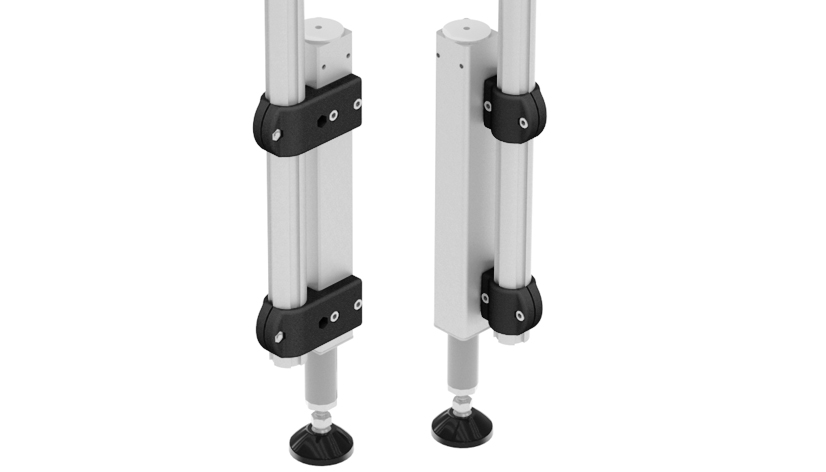

To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylinders
To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylinders
Material:
Connector: Zinc die-cast
Assembly set: Steel
Surface:
Mounting clamp: Powder coated
Assembly set: Zinc plated
Color:
Mounting clamp: Black
Set:
2 components for mounting clamp D28,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10,
2 nuts DIN EN ISO 4032 (DIN 934) - M5
Países de Entrega:
En todo el mundo
Connector: Zinc die-cast
Assembly set: Steel
Surface:
Mounting clamp: Powder coated
Assembly set: Zinc plated
Color:
Mounting clamp: Black
Set:
2 components for mounting clamp D28,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10,
2 nuts DIN EN ISO 4032 (DIN 934) - M5
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | For tubular frame profiles |
| Peso (g): | 212.0 |
| Numero de ERP: | 126702 |
