Pata pivotante, ZN / acier - BDH
0,00 €
Número de producto:
9A100ZBS24150M
Cantidad por Paquete:
1 pieza
Información sobre el producto "Pata pivotante, ZN / acier - BDH"
Color:
Base: Black
Países de Entrega:
En todo el mundo
Description:

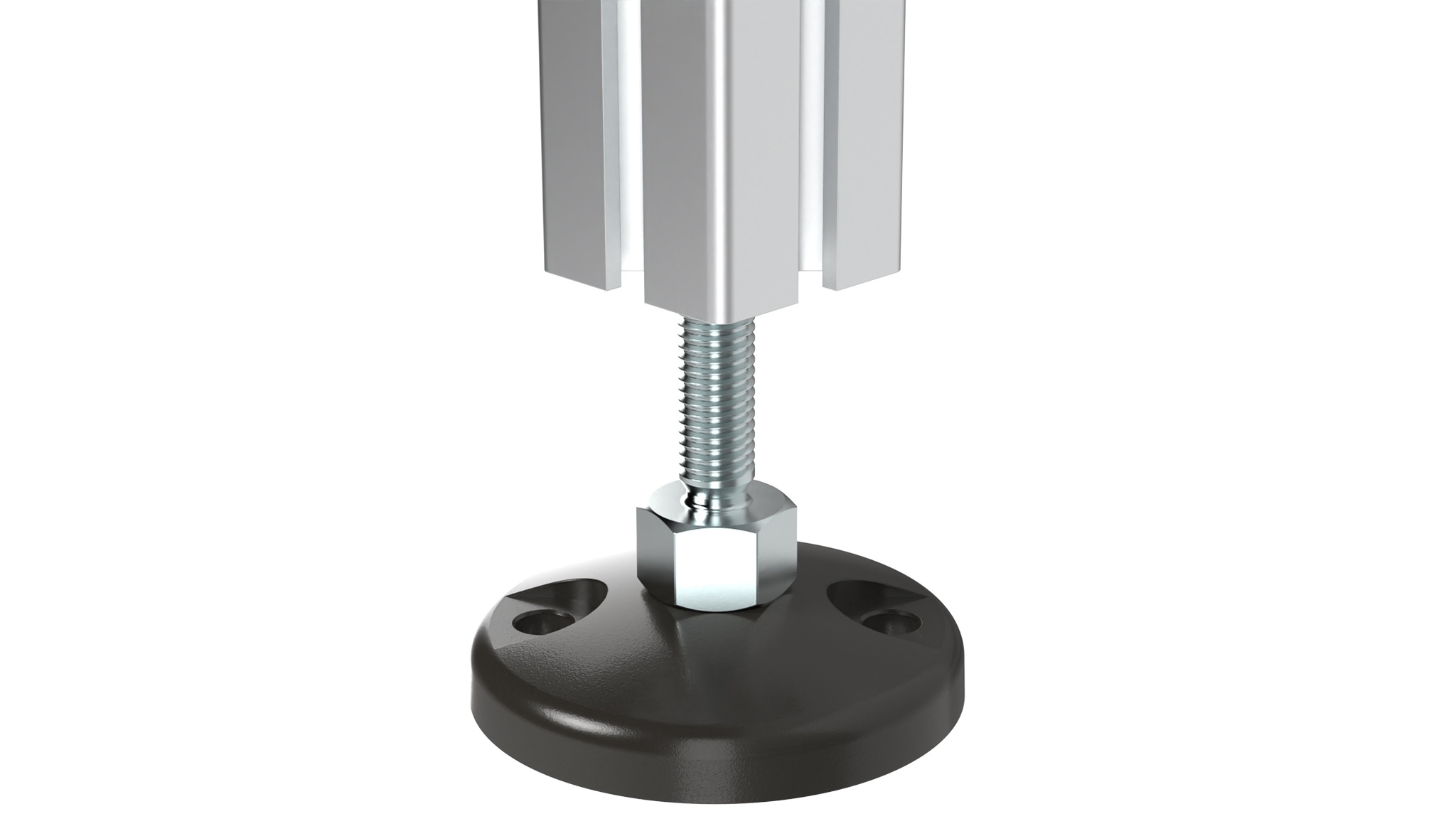

A leveling foot which can be fixed to the floor
Material:
Base: Zinc die-cast
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request
Surface:
Base: Powder coated
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.
Base: Black
Países de Entrega:
En todo el mundo
Description:
A leveling foot which can be fixed to the floor
Material:
Base: Zinc die-cast
Threaded rod: Steel
Specials:
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request
Surface:
Base: Powder coated
Threaded rod: Zinc plated
Tip:
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098AG050 et sq.
| Model: | Zinc die-cast / steel, with bolt-down holes |
|---|---|
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Screw Joint: | Swiveling range ±4° |
| Peso (g): | 768.8 |
| (ECLASS 6.0): | 90900110 |
| (ECLASS 7.0): | 90900109 |
| (ECLASS 8.0): | 90900108 |
| (ECLASS 9.0): | 90900107 |
| (ECLASS 10.0): | 90900106 |
| (ECLASS 11.0): | 90900105 |
| (ECLASS 12.0): | 90900104 |
| (ECLASS 13.0): | 90900103 |
| (ECLASS 15.0): | 90900101 |
| (ECLASS 16.0): | 23010701 |
| ECLASS_V14.0: | 90900102 |
| Numero de ERP: | 106735 |
| Zolltarifnummer: | 73269098900 |
Certificados
