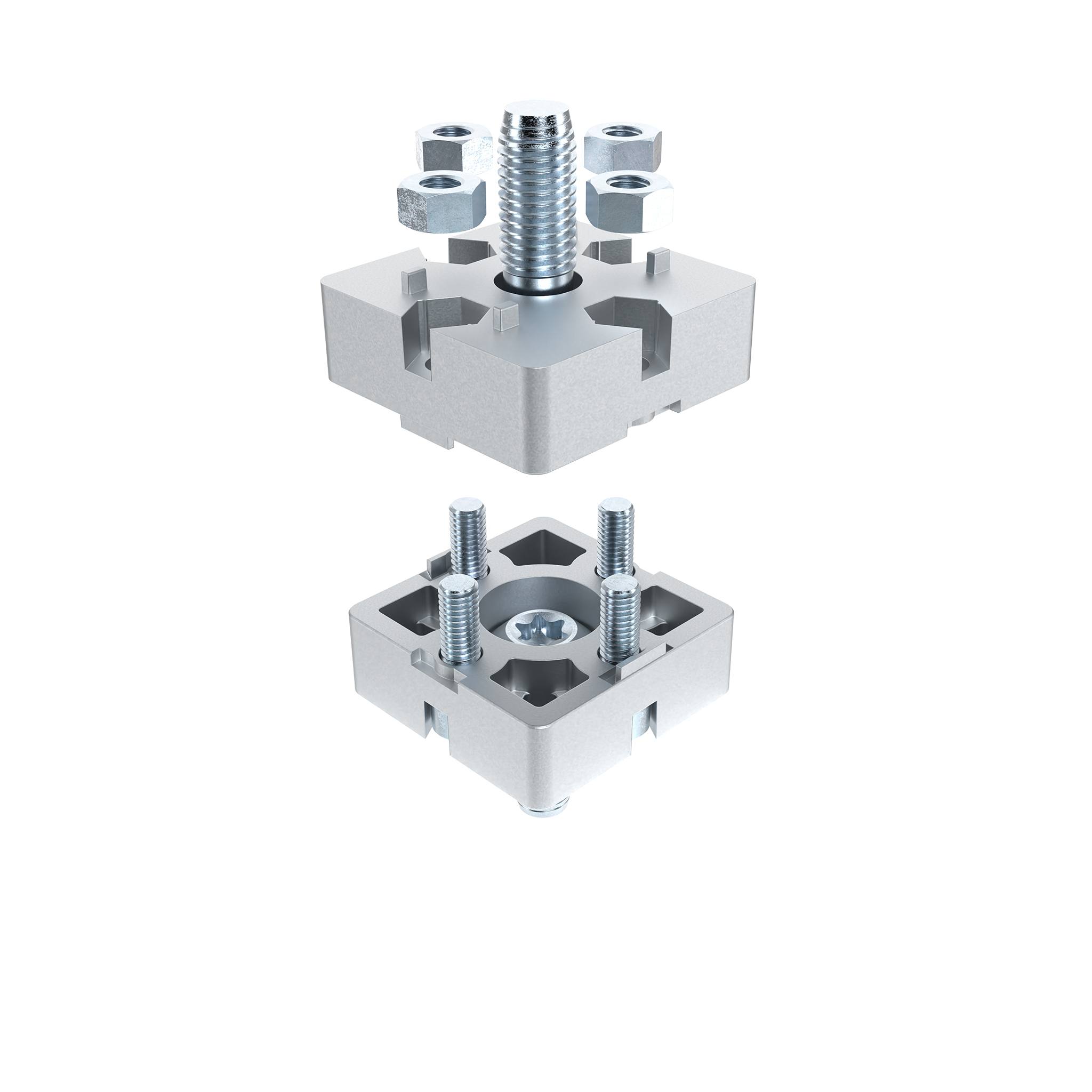

Plate Butt Connector B AL (Set)
0,00 €
Número de producto:
099EA45451012RS02
Cantidad por Paquete:
10 conjuntos
Información sobre el producto "Plate Butt Connector B AL (Set)"
Color:
Color alu
Países de Entrega:
En todo el mundo
Description:
End-to-end connection of two aluminum profiles of the same type
Material:
Plate connector: Aluminum die-cast
Screws / hammer nuts: Steel
Set 1:
2 plate connectors,
2 screws DIN 7984 - M8 x30,
4 screws DIN 7984 - M5 x 20,
4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M5
Set 2:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6
Set 3:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Plate connector: Plain / powder coated
Screws / hammer nuts: Zinc plated
Tip:
Individual Plate Connector, not as part of a set, see 099EA30300808R
Color alu
Países de Entrega:
En todo el mundo
Description:
End-to-end connection of two aluminum profiles of the same type
Material:
Plate connector: Aluminum die-cast
Screws / hammer nuts: Steel
Set 1:
2 plate connectors,
2 screws DIN 7984 - M8 x30,
4 screws DIN 7984 - M5 x 20,
4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M5
Set 2:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6
Set 3:
2 plate connectors,
2 self forming screws S12 x 30 - hexalobular socket T50,
4 screws DIN 7984 - M6 x 20,
4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Plate connector: Plain / powder coated
Screws / hammer nuts: Zinc plated
Tip:
Individual Plate Connector, not as part of a set, see 099EA30300808R
| Model: | Aluminio fundido a presión |
|---|---|
| Cantidad por Paquete: | 10 conjuntos |
| Número de Arancel Aduanero de Exportación: | 76169910 |
| Peso (g): | 206.0 |
| (ECLASS 6.0): | 23360290 |
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Numero de ERP: | 135377 |
| Zolltarifnummer: | 76169910990 |
Certificados
