Tool Supply

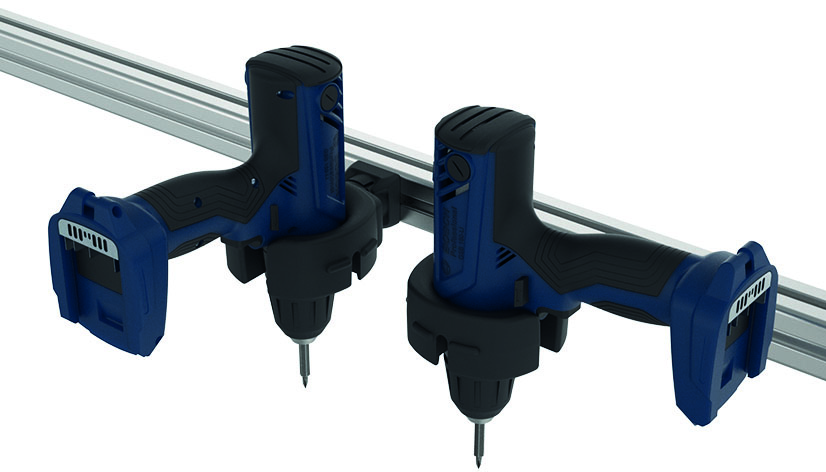

The FATH Tool Holders FX can be rotated 360° and can be attached to the aluminum profile, round tube or perforated plate. The various functional modules can be combined with all adaptations. This makes it easy to implement effective and ergonomic tool provision.
Filtro
Bag Cutter FX for Profiles 40 / 45, Slot 8 / 10
Color:Bag cutter: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bag cutter, changeable blade, 360° turnable, for aluminum profiles To organize work stationsMaterial:Bag cutter standard version: Plastic PA, glass ball reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283F91ESDS01Tip 2:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01
Bag Cutter FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Bag cutter: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bag cutter, changeable blade, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NF91S01 For round tubes D28 / D30 see 6TM8D283F91ESDS01
Bottle Holder FX for Profiles 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bottle holder, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283D100S01

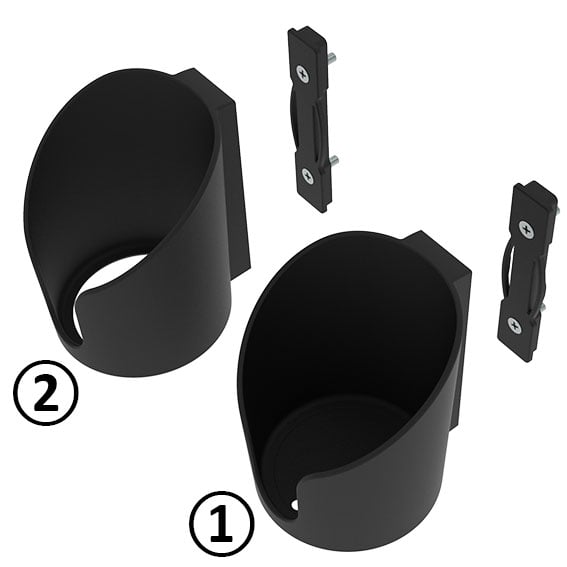

Bottle Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bottle holder, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840ND100S01 For round tubes D28 / D30 see 6TM8D283D100S01
Broom Holder FLEX FX 20 - 30 for Profiles 40 / 45, Slot 8 / 10
Color:Holder: Black Retaining strap: Black Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TM8D283X2030S01
Broom Holder FLEX FX 20 - 30 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black Broom holder: Black Retaining strap: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder: Plastic PA, carbon fibre reinforced Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NX2030S01 For round tubes D28 / D30 see 6TM8D283X2030S01

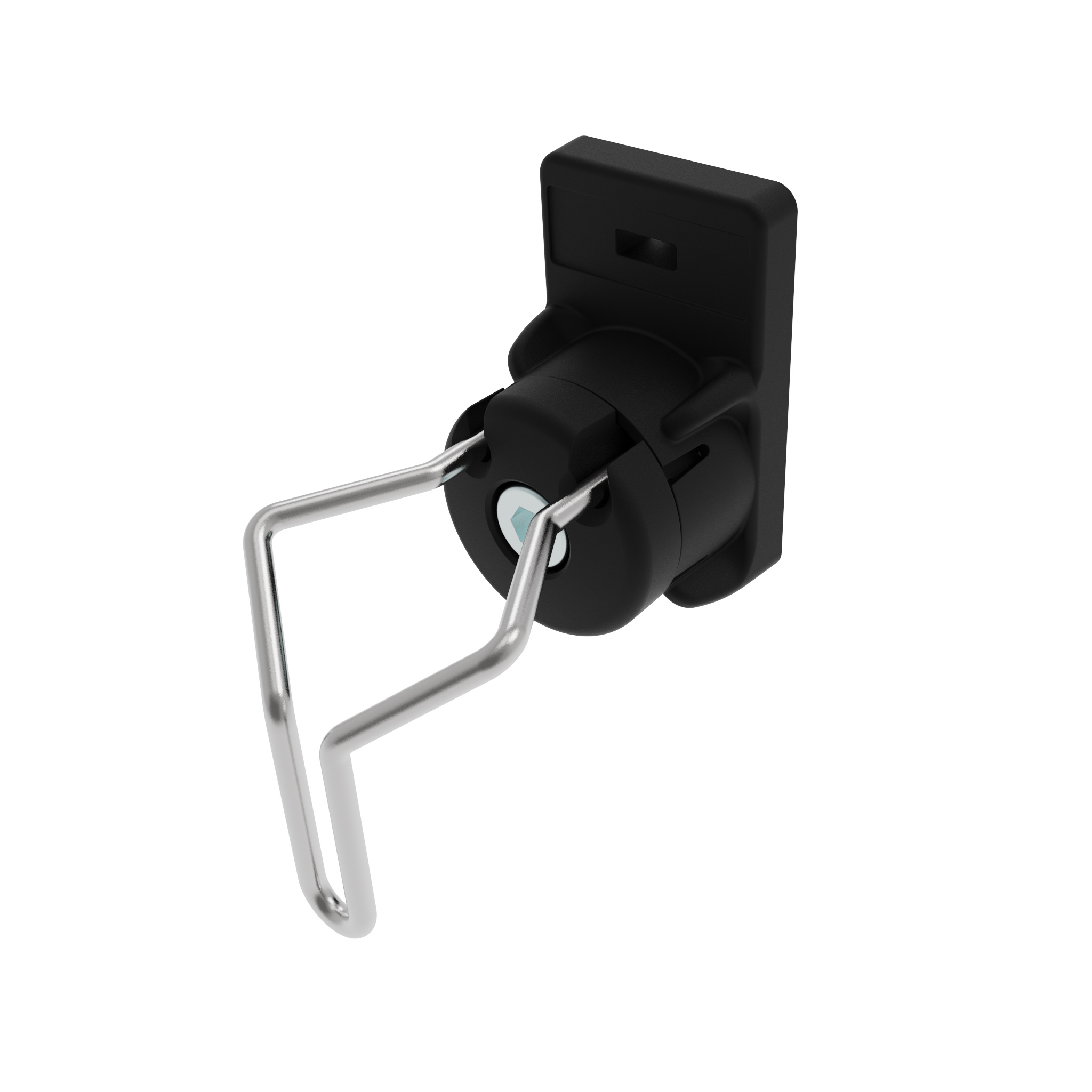

Cloth Clip FX for Profiles 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use cloth clip, 360° turnable, for aluminum profiles; To organize workstatioMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283G5050EDS1-
Cloth Clip FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use cloth clip, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NG5050S01 For round tubes D28 / D30 see 6TH2D283G5050EDS1-
Cup Holder
Color:Negro, rojoPaíses de Entrega:En todo el mundoDescription:To securely put down a bottle, can or cup, or to park a tool (e.g. a drill)PFA_Fastening:Tornillos avellanados M5Material:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

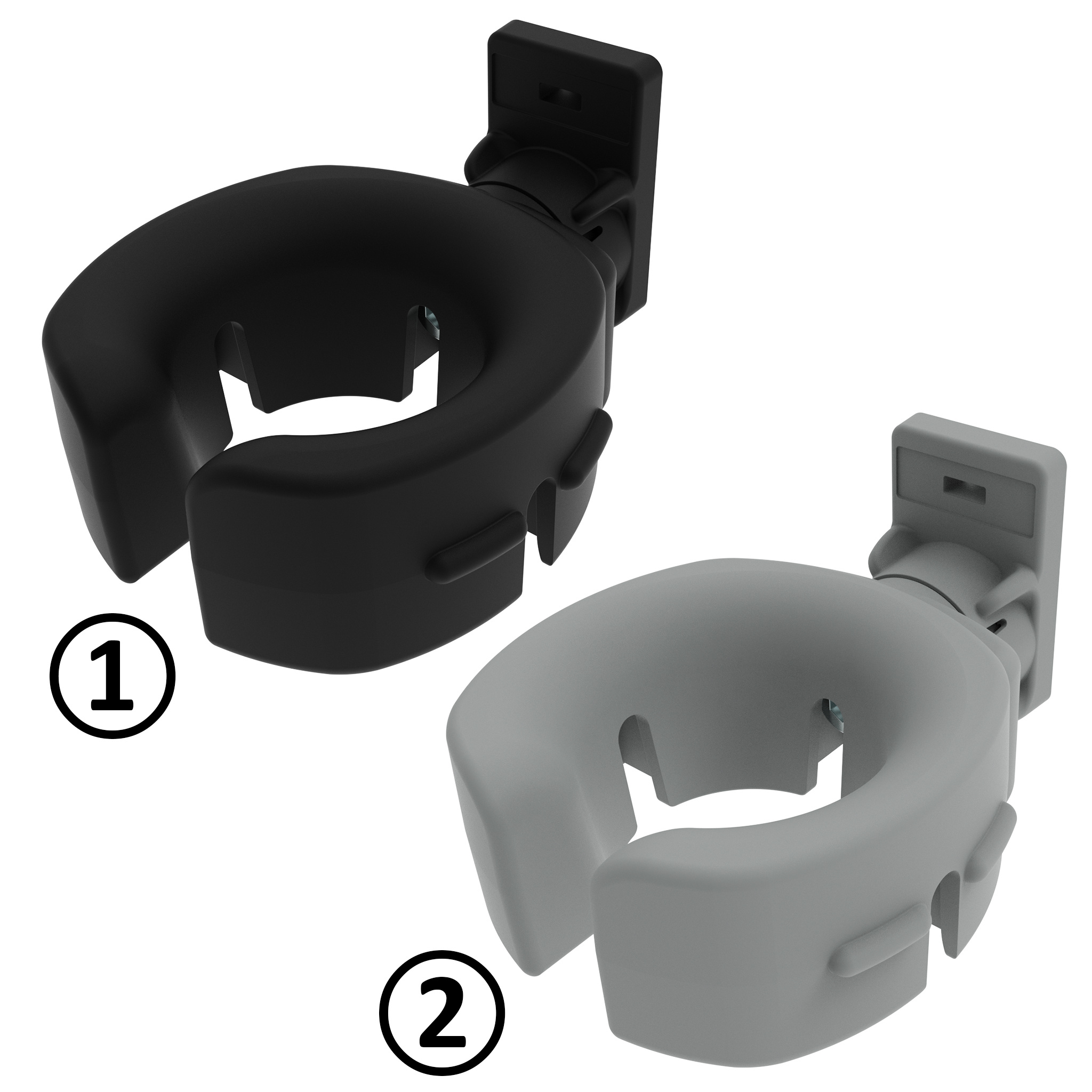

Drill / Driver Holder FX D50 for Profile 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated
Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fibre reinforced Rear mounting holder gray version: Plastic PA, glass fibre reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

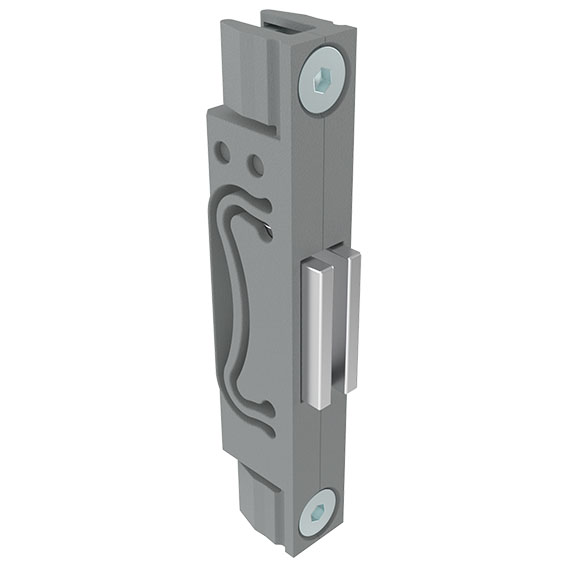

Magnetic Holder I, Slot 8
Color:Magnetic holder: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:For easy storage of metal tools and objects on aluminum profiles, holding force 20 N; Easy installation and positioning in the slot by clipping in and then tightening the expanding clampsMaterial:Magnetic holder: Plastic PA Magnet: Neodymium Assembly material: SteelSuperficie:Material de montaje: Galvanizado

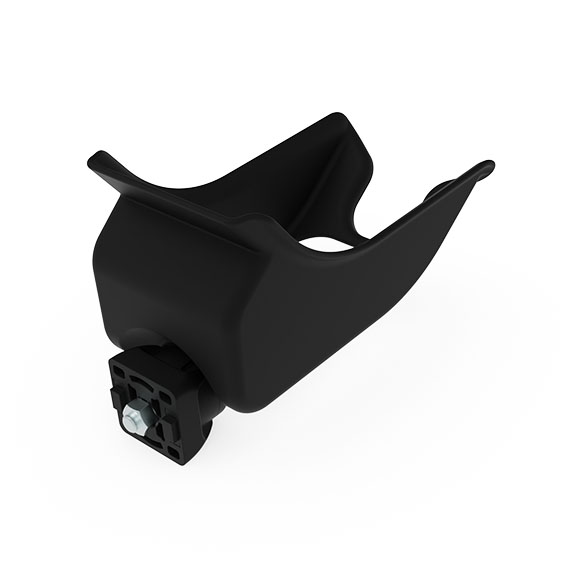

Packing Tape Hand Dispenser Holder FX for Profile 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool Holder for Packing Tape Hand Dispenser, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TD283PT91

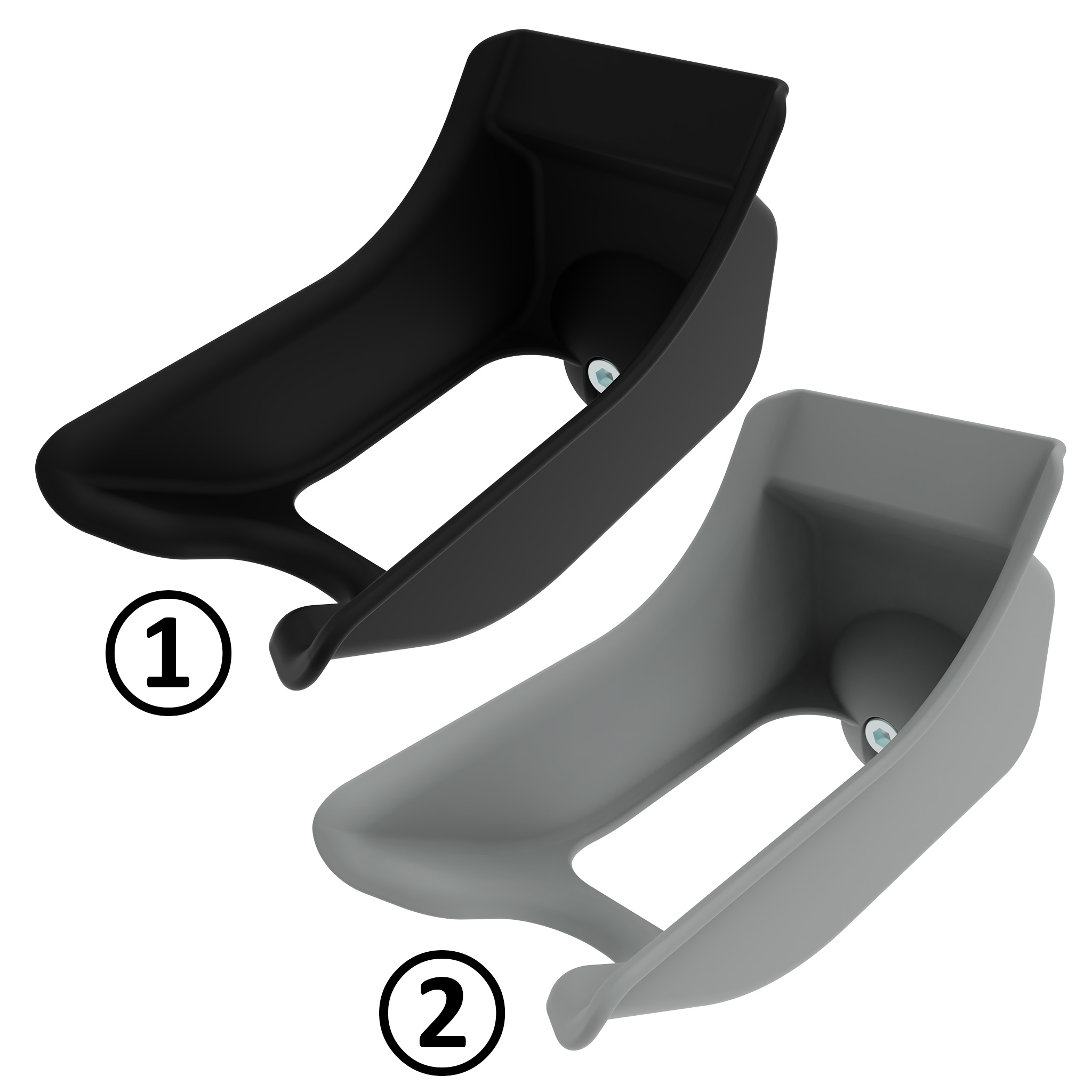

Packing Tape Hand Dispenser Holder FX for Square Holes 9 x 9 (8.7 x 8.7)
Color:Holder: Black, gray Packing Tape Hand Dispenser: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Holder for Packing Tape Hand Dispenser, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Holder black version: Plastic PA, carbon fibre reinforced Holder gray version: Plastic PA, glass fibre reinforced Packing Tape Hand Dispenser: Plastic PA, glass fibre reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NPT91 For round tubes D28 / D30 see 6TD283PT91

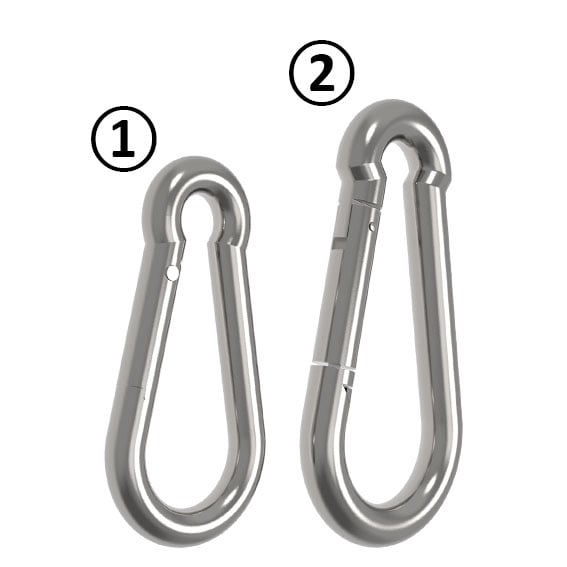

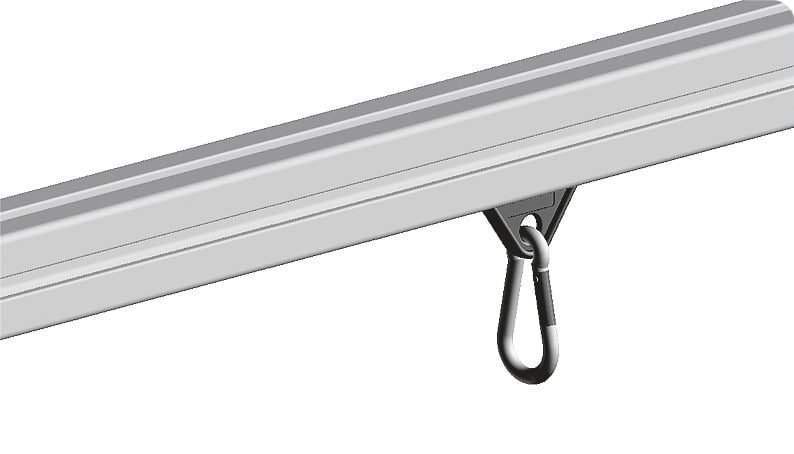

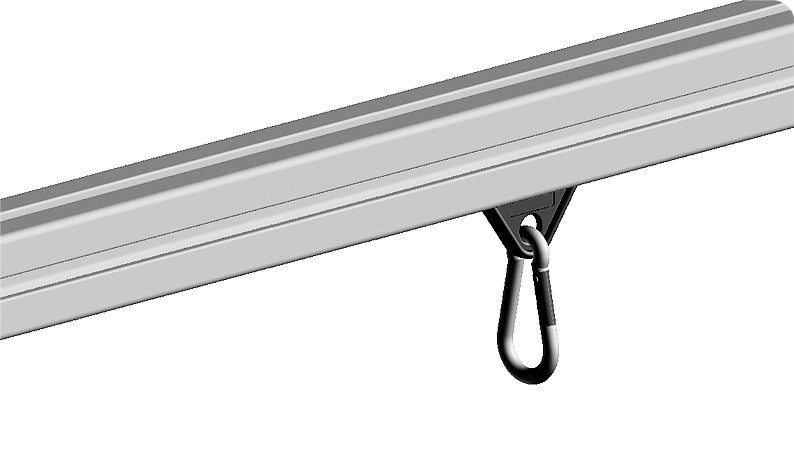

Snap Hook for Tool Hangers
Países de Entrega:En todo el mundoDescription:To attach tools to tool hangersMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoTip:Compatible Tool Hangers see 093009 et sq.

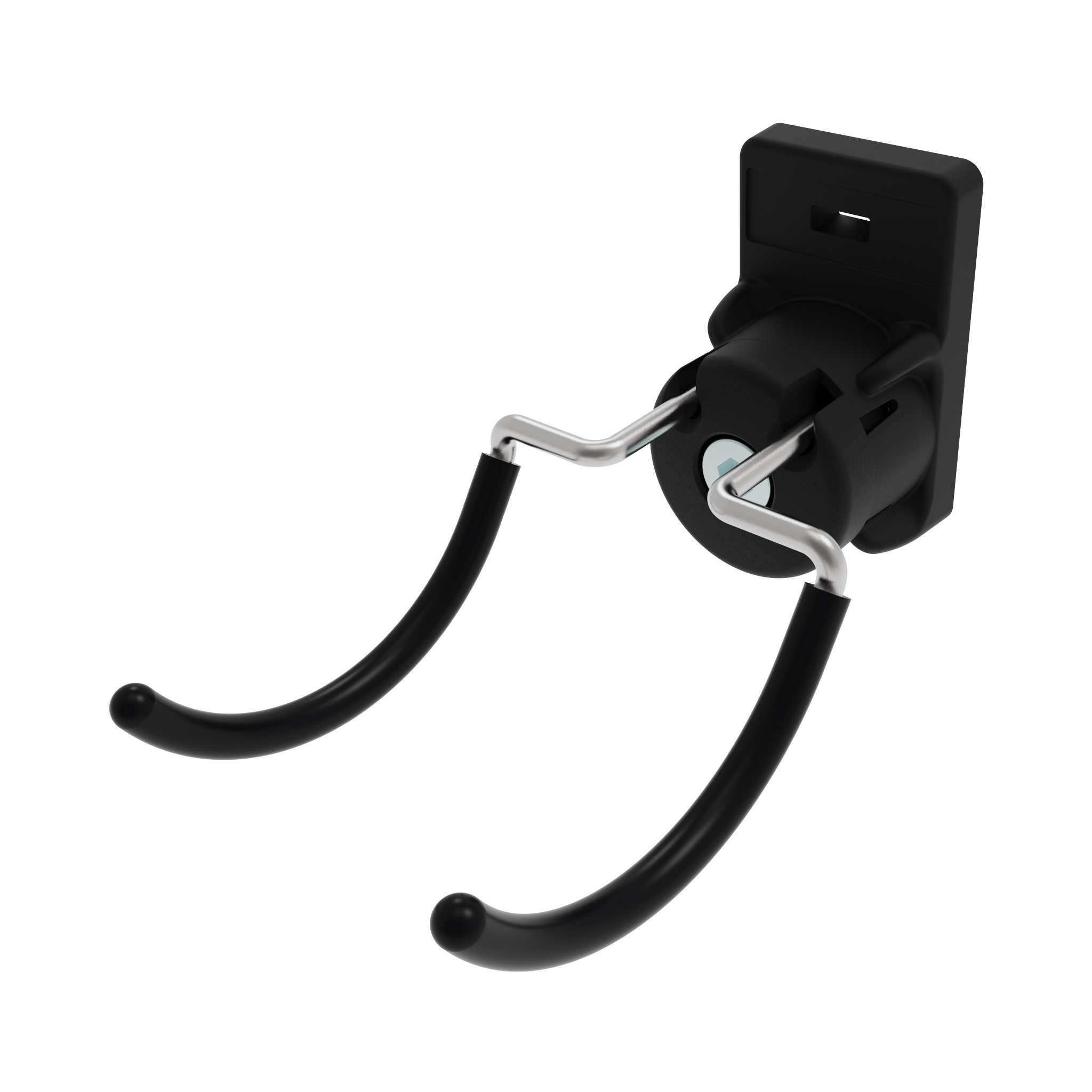

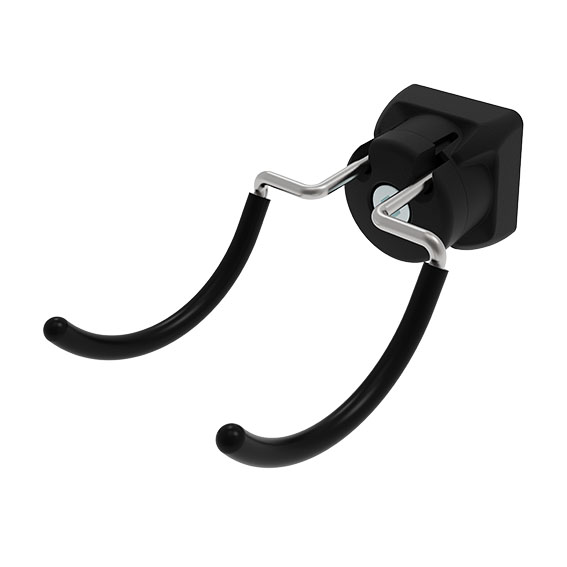

Tool Double Hook FX R35 - 67, Rubberized for Profiles 40 / 45, Slot 8 / 10
Color:Wire: Black coated Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use double tool hook, 360° turnable, for aluminum profiles; Rubber coated wire to prevent tools from slipping; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Wire: PVC coated Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283R3091S01
Tool Double Hook FX R35 - 67, Rubberized for Square Holes 9 x 9 (8.7 x 8.7)
Color:Wire: Black coated Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use double tool hook, 360° turnable, for perforated metals up to 1.4 mm thick; Rubber coated wire to prevent tools from slipping; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder: Plastic PA, carbon fibre reinforced Front locking holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Wire: PVC coated Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240NR3091S01 For round tubes D28 / D30 see 6TH2D283R3091S01

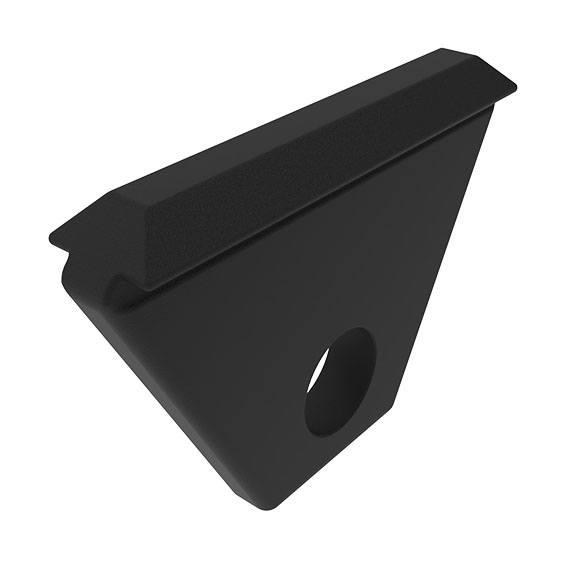

Tool Hanger 5/6, 1 Hole
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To hang tools, improves organization at the work stationMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedidoTip:Compatible Snap Hooks for Tool Hanger see 092020

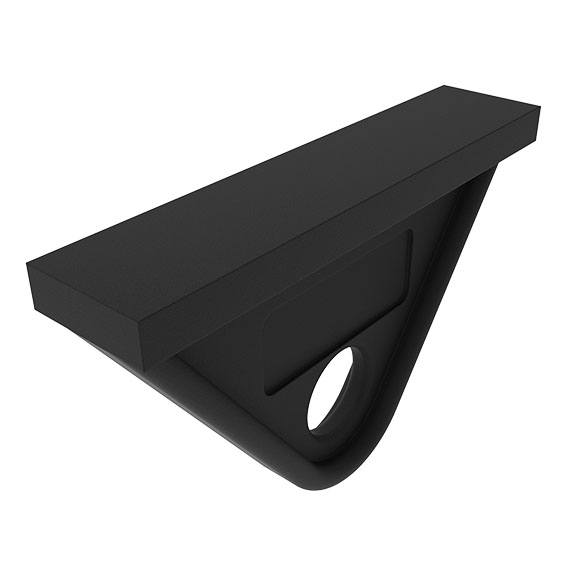

Tool Hanger 8, 1 Hole
Color:NegroPaíses de Entrega:En todo el mundoDescription:To hang tools, improves organization at the work stationMaterial:Plástico PAEspeciales:Otros colores bajo pedidoTip:Compatible Snap Hooks for Tool Hanger see 092020

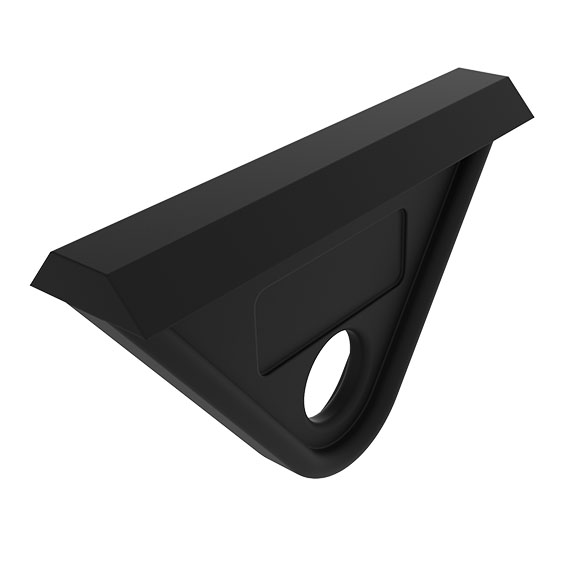

Tool Hanger 8/10, 1 Hole
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To hang tools, improves organization at the work stationMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedidoTip:Compatible Snap Hooks for Tool Hanger see 092020

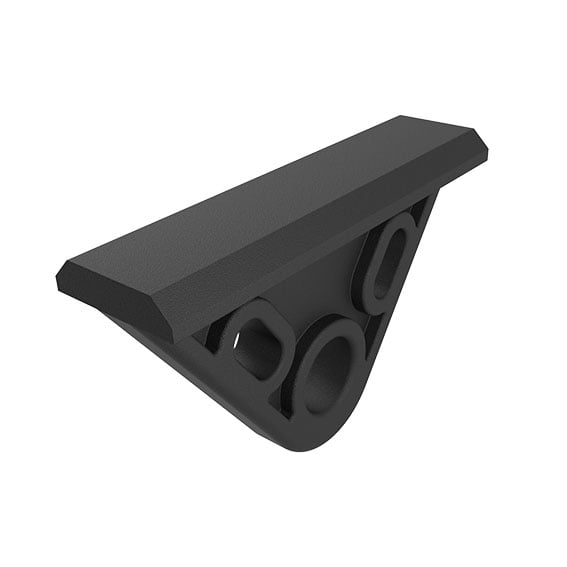

Tool Hanger 8/10, 3 Hole
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To hang tools, improves organization at the work station; With additional holes for attaching safety ropesMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedidoTip:Compatible Snap Hooks for Tool Hanger see 092020

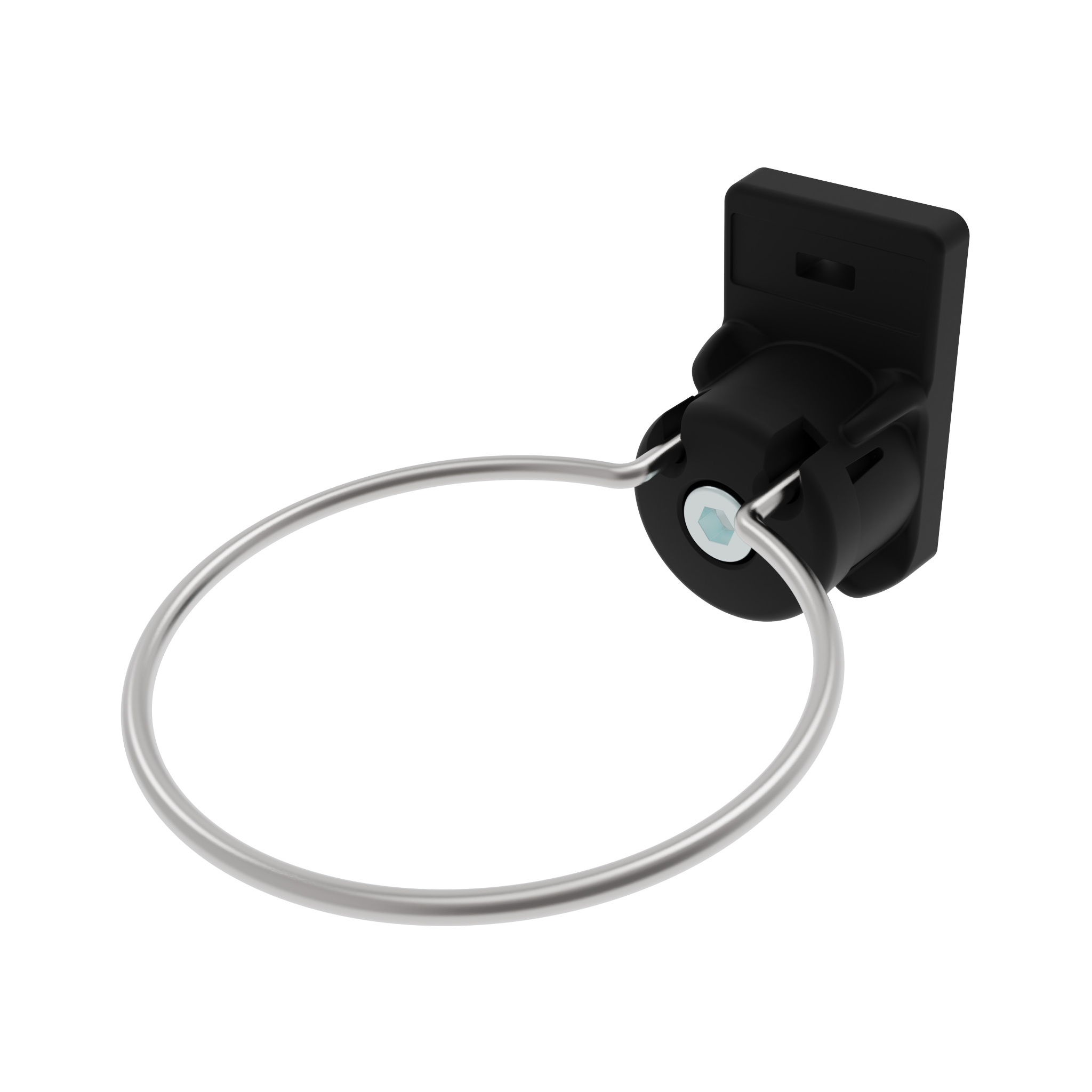

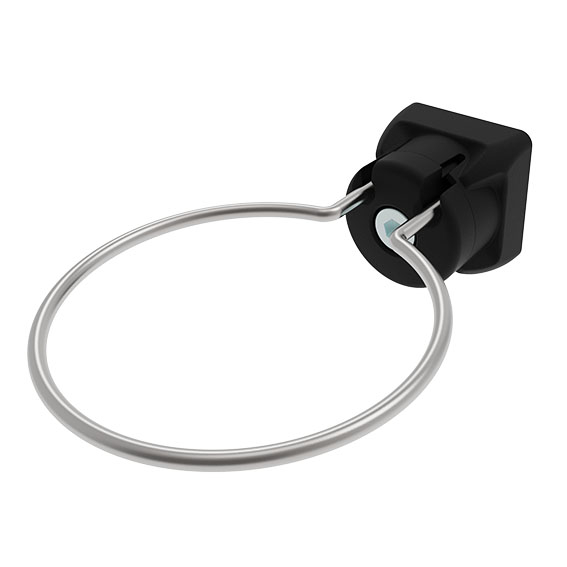

Tool Holder FX D80 for Profiles 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283D80ESDS01
Tool Holder FX D80 for Square Holes 9 x 9 (8.7 x 8.7)
Color:Rear mounting holder: Black Front locking holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool holder ring with 80 mm diameter, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder ESD electrostatical discharging version: Plastic PA, carbon fibre reinforced Front locking holder ESD electrostatical discharging: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TH240ND80S01 For round tubes D28 / D30 see 6TH2D283D80ESDS01

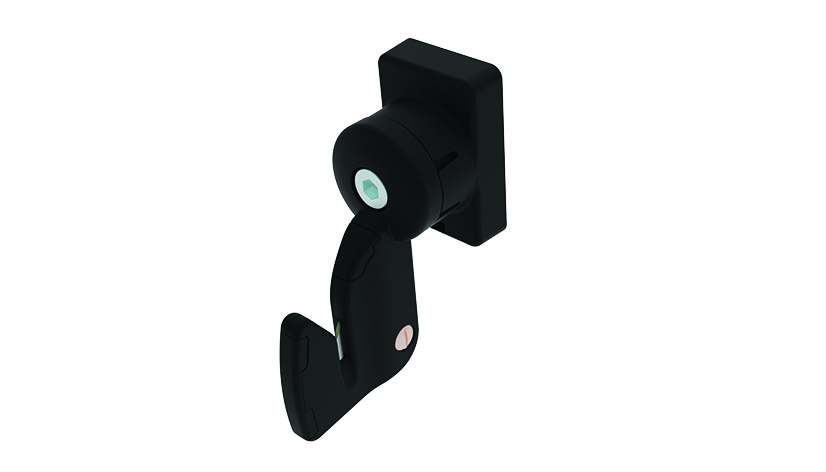

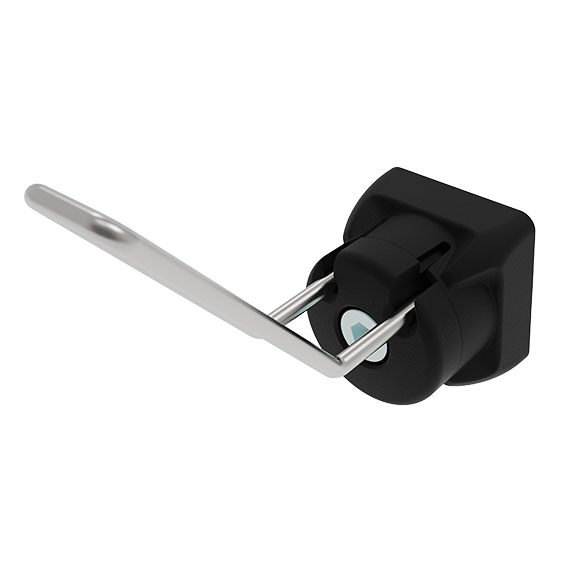

Tool Hook FX 17/57 - 24 for Profiles 40 / 45, Slot 8 / 10
Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool hook, 360° turnable, for aluminum profiles To organize work stationsMaterial:Holder standard version: Plastic PA, glass ball reinforced Holder ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc platedTip:For round tubes D28 / D30 see 6TH2D283A4060EDS1-
