Tornillos cabeza de martillo

Hammer-head screws can easily be inserted into the profile slot, rotated 90°, and anchored in place. This process is quick and requires only a few tools. The screws are immediately load-bearing. FATH offers hammer-head screws in various thread and slot sizes, including stainless steel hammer-head screws for corrosive environments.

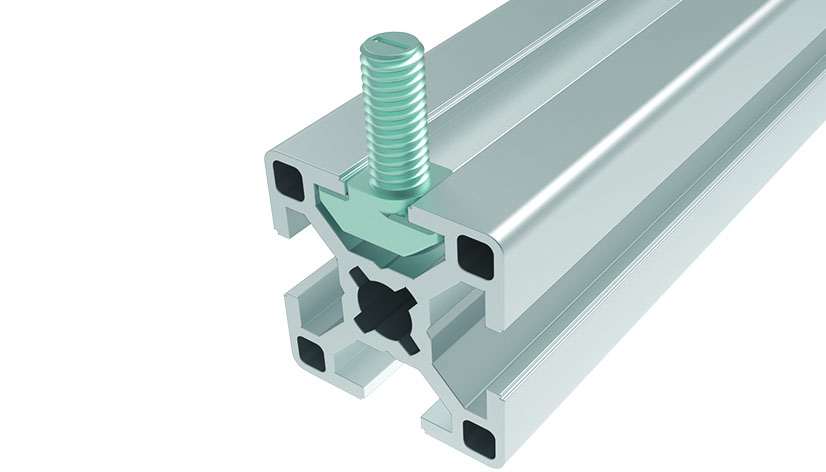

Ranura 8, tornillos cabeza de martillo

Ranura 8, tornillos cabeza de martillo

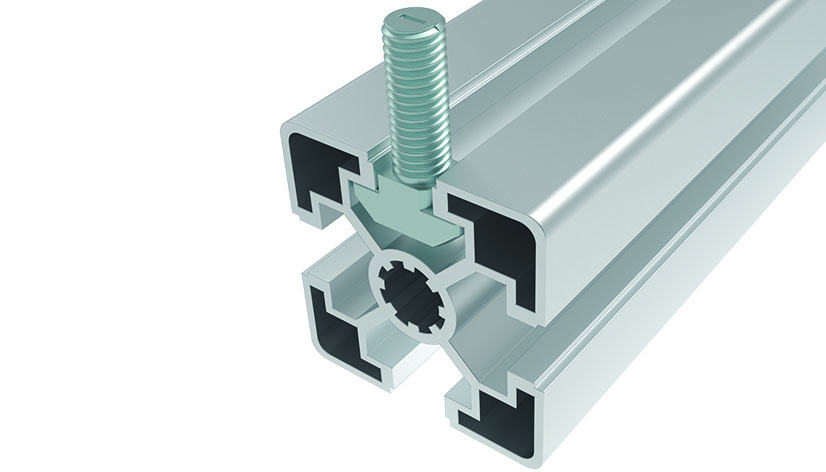

Ranura 10, tornillos cabeza de martillo

Ranura 10, tornillos cabeza de martillo

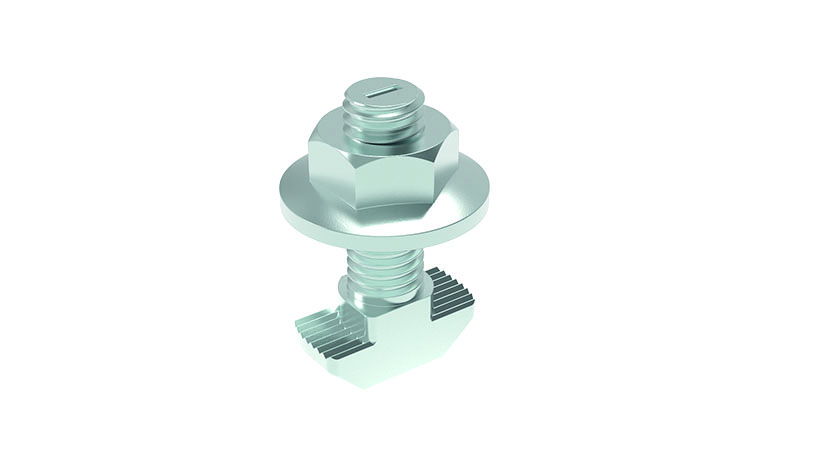

Tuercas para tornillos cabeza de martillo

Tuercas para tornillos cabeza de martillo

Filtro

Tornillo cabeza de martillo ranura 8 – imagen del producto, todas las versiones

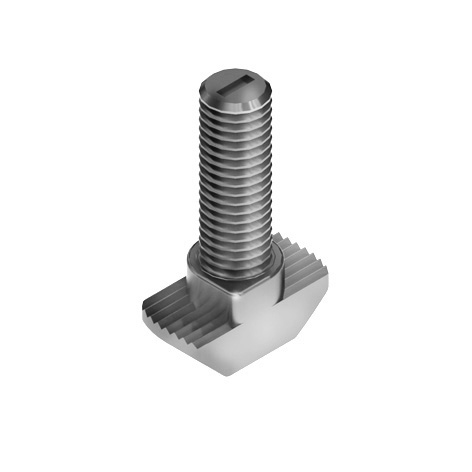

Tornillo cabeza de martillo ranura 8

Material: Acero H (mm): 1.5 Profile: B h (mm): 4.7 Size M x L (mm): M6 x 16

Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Acero / acero inoxidable SS304Superficie:Galvanizado / lisoTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rodSpecials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestPaíses de Entrega:En todo el mundo

0,00 €
Tornillo cabeza de martillo ranura 10 – imagen del producto, todas las versiones

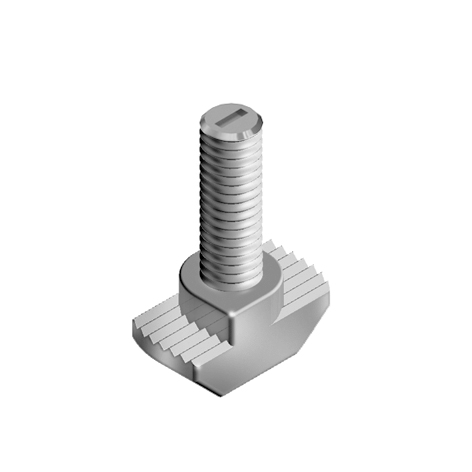

Tornillo cabeza de martillo ranura 10

Material: Acero H (mm): 1.5 Profile: - B (mm): 9.7 h (mm): 5.8 Size M x L (mm): *M6 x 20

Description:To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connectionMaterial:Acero / acero inoxidable SS316Superficie:Galvanizado / lisoTip:Compatible Flange Nut see 340ME154 *Made of hammer nut with glued threaded rodSpecials:Turning help: Polyamide thread locking dot on request Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on requestPaíses de Entrega:En todo el mundo

0,00 €
Tuerca de brida – imagen del producto, todas las versiones

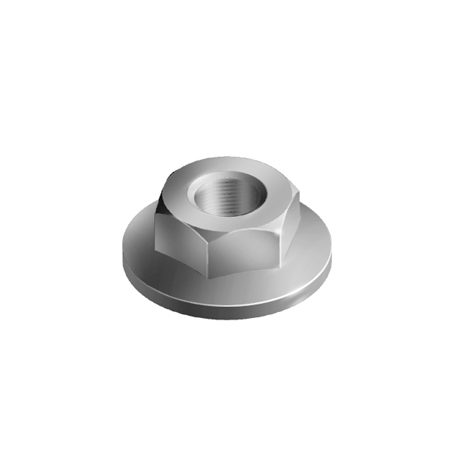

Tuerca de brida

SW (mm): 10 D (mm): 14.0 Material: Acero H (mm): 6.0 M: M6

Description:To be used in conjunction with a hammer head screwMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoPaíses de Entrega:En todo el mundo

0,00 €
