Suministro de materiales
FIFO Monorail Rail 40
Países de Entrega:En todo el mundoDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S11 Compatible Infeed Cap for FIFO Monorail Rail (set) see 2082CCS02 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 93WS30145S02 Compatible Cover Profiles see 092050
FIFO Monorail Rail 55
Países de Entrega:En todo el mundoDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 55 mm 2 slots at the top, set at 45°; closed back side for optional full-surface adhesion to the floor To extend two guiding rails, connect them face to face with connecting strip in the slots; posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:Compatible Connecting Strip see 096010S11 Compatible Infeed Cap for FIFO Monorail Rail (set) see 02082CC55 Compatible Monorail Angle Connector for Post see 093WS30145S01 Compatible Mounting Set for Posts Support Struts see 93WS30145S02 Compatible Cover Profiles see 092080
FIFO Monorail Station 40 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:Fast mounting FIFO station for guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm; To extend guiding rails, connect them face to face with connecting strip in the slots; To widen, connect further parallel guided guiding rails and end caps with connecting elements Posts can be mounted in the slot from aboveMaterial:Rails: Aluminum Infeed caps: Aluminum die-cast Hexagon socket set screws: Steel Connecting elements: Stainless steel Screws: SteelSet:5 FIFO Monorail Rails 40, 10 infeed caps, 20 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8, 8 connecting elements, 32 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16Surface:Rails: Anodized Infeed caps: Powder coated Hexagon socket set screws: Zinc plated Screws: Zinc plated
Floor Mounting for Guiding Rail FIFO (Set)
Color:Angle: Alu color Anchors: YellowPaíses de Entrega:En todo el mundoDescription:To additionally mount guiding rails FIFO to the floorMaterial:Angle: Steel Screw: Steel T-slot nut: Steel Anchors: PlasticSet:2 steel connection angle 20, 2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 8; 2 T-slot nuts - slot 5 - M5, 2 screws 5 x 60, 2 anchors 8 x 60Surface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc plated
Guiding Rail FIFO (Set)
Países de Entrega:En todo el mundoDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:For cut: To order, please replace "xxxx" in the part number by the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible connecting strip see 096060S20 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080
Infeed cap for FIFO Monorail Rail 40 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsPFA_Fastening:Por delante, con tornillos avellanados M6Material:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO Monorail Rail 40 see 02082PO.1200
Infeed cap for FIFO Monorail Rail 55 (Set)
Color:Infeed caps: BlackPaíses de Entrega:En todo el mundoDescription:For easier loading and unloading of FIFO stations with floor dollies; Robust design, mounting directly in the slot of FIFO monorail rail with enclosed hexagon socket set screwsPFA_Fastening:Por delante, con tornillos avellanados M6Material:Infeed caps: Aluminum die-cast Hexagon socket set screws: SteelSet:8 infeed caps 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Powder coated Hexagon socket set screws: Zinc platedTip:Compatible FIFO monorail rail 55 see 02082PO55.1200
Infeed Cap for Guiding Rail FIFO (Set)
Color:Screw Covers: Yellow ≈ RAL 1003Países de Entrega:En todo el mundoDescription:For easier loading and unloading of a FIFO stations with floor dollys; Robust design, mounting directly in the slot of guiding rails FIFO with enclosed hexagon socket set screws Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollysPFA_Fastening:Por delante, con tornillos avellanados M6Material:Infeed caps: Aluminum die-cast Screw covers: Plastic PC Hexagon socket set screws: SteelSet:8 infeed caps 16 screw covers 16 hexagon socket set screws DIN EN ISO 4027 (DIN 914) - M6 x 8Surface:Infeed caps: Alu color powder coated Hexagon socket set screws: Zinc platedTip:Compatible Guiding Rails FIFO see 02082P.1200 Compatible Connecting Element for Guiding Rail FIFO see 02082D Compatible Fastening Set see 02082FS Compatible Screw Cover Infeed Cap for Guiding Rail FIFO as spare part see 02082S.15
Milling Connector B, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:AceroSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14, 1 hammer nut
Milling Connector I, Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:AceroSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 18, 1 hammer nut

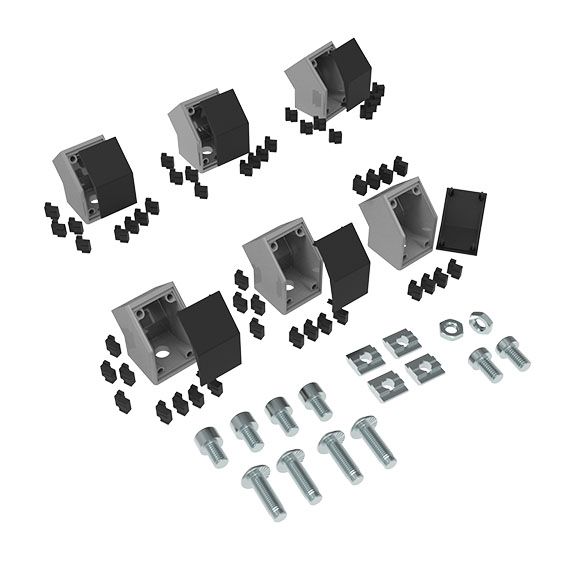

Monorail Angle Connector for Post Support Struts (Set)
Países de Entrega:En todo el mundoDescription:For mounting diagonal struts to support posts in the upper slot of FIFO monorail rails 40Material:AluminioSet:6 angle connectors 45° 30 x 30, 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 12, 4 T-slot nut- M8, 4 self-tapping screws - S8 x 25, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 14, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8Tip:Compatible FIFO Monorail Rail see 02082PO.1200

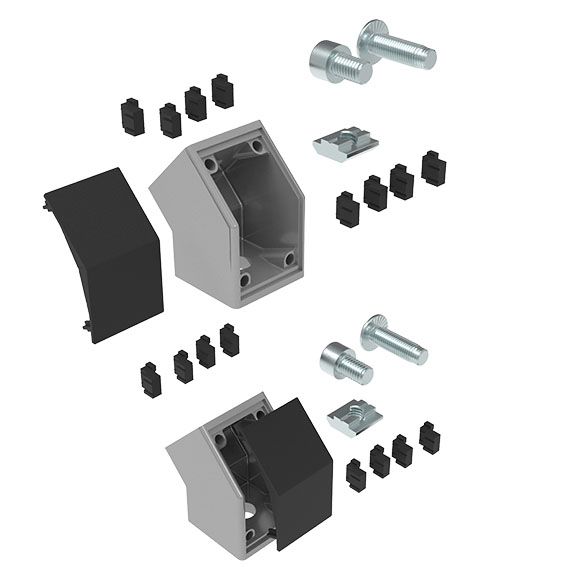

Monorail Angle Connector for Posts (Set)
Países de Entrega:En todo el mundoDescription:To mount posts in the upper slot of FIFO monorail rail 40Material:AluminioSet:2 angle connector 45° 30 x 30, 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 12, 2 T-slot nuts - M8, 2 self-tapping screw - S8 x 25Tip:Compatible FIFO Monorail Rail see 02082PO.1200
Mounting for FIFO Monorail Rail 40 and 55 (Set)
Países de Entrega:En todo el mundoDescription:To securely fix FIFO Monorail Rails to the floor; For use as a support base to mount a brush brake or an end stopMaterial:AceroSet:2 Mounting, 4 T-slot nuts - slot 8 - M6, 6 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Superficie:GalvanizadoTip:Compatible Brush Brake see 02082BB Compatible variable End Stop for FIFO Monorail Rail 40 see 096030S52 Compatible variable End Stop for FIFO Monorail Rail 55 see 096030S12
Mounting Set Infeed Cap for Guiding Rail FIFO
Color:Anchor: YellowPaíses de Entrega:En todo el mundoDescription:To mount infeed caps for guiding rails FIFO to the floorMaterial:Anchor: Plastic Screws: SteelSet:8 anchors 8 x 60 8 screws 5 x 60Superficie:Tornillos: Galvanizado

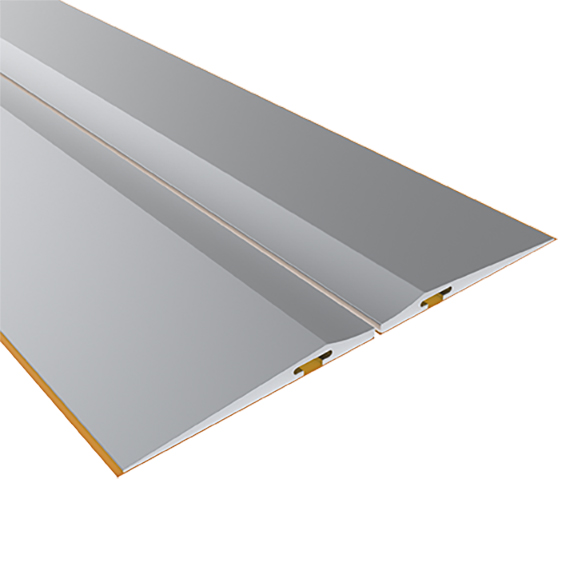

Parking Rail Flat - Flat (Set)
Países de Entrega:En todo el mundoDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminioSuperficie:LisoTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LLS01

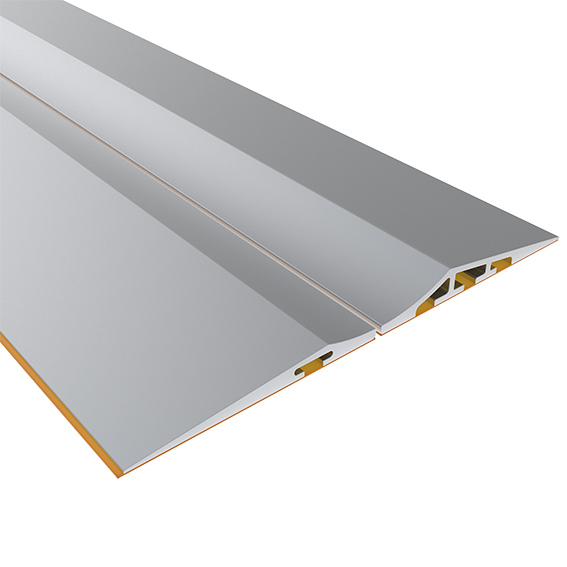

Parking Rail Flat - High (Set)
Países de Entrega:En todo el mundoDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminioSuperficie:LisoTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084LHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084LHXLS01

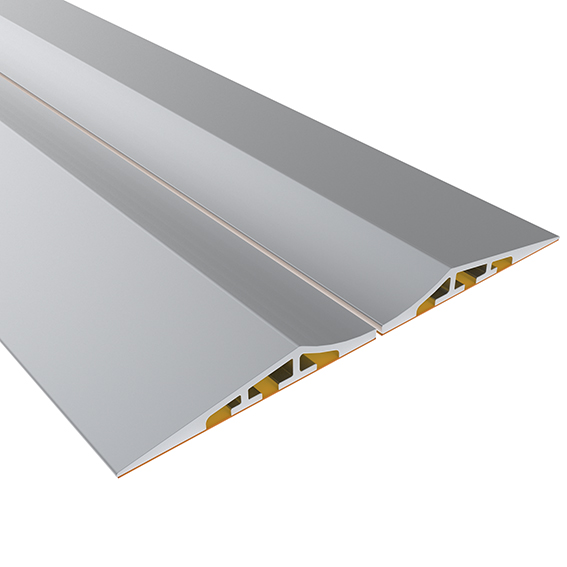

Parking Rail High - High (Set)
Países de Entrega:En todo el mundoDescription:For precise positioning of dollys or material trolleys, suitable for different wheel diameters, no brakes needed; self-adhesive, for tool-free assembly, no screwing required, immediately ready for useFastening:Self-adhesive surface on the backsideMaterial:AluminioSuperficie:LisoTip:When ordering, please note: Replace "1200" in the part no. with the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mmTip 2:Compatible End Cap for Wheel Diameter ≤ 100 mm see 02084HHS01 Compatible End Cap XL for Wheel Diameter > 100 mm see 02084HHXLS01

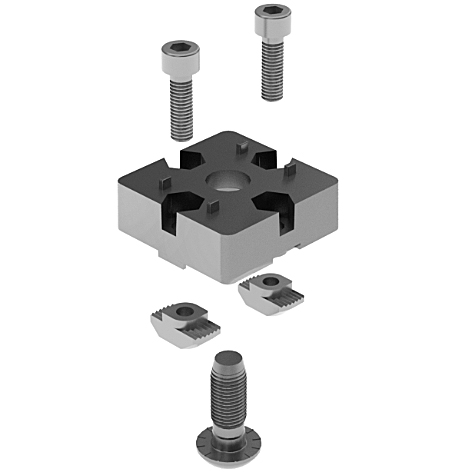

Plate Connector B AL (Set)
Assembly Set 1:1 screw DIN 7984 - M8 x 30, 2 screws DIN 7984 - M5 x 16, 2 hammer nuts - slot 8 - M5Assembly Set 2:1 self forming screw S12 x 30 - hexalobular socket T50, 2 screws DIN 7984 - M6 x 20, 2 hammer nuts - slot 10 - M6Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate connector: Aluminum die-cast Assembly set: SteelEspeciales:Otras superficies bajo pedidoSurface:Plate connector: Plain / powder coated Assembly set: Zinc plated
Plate Connector I ZN 40 (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc plated

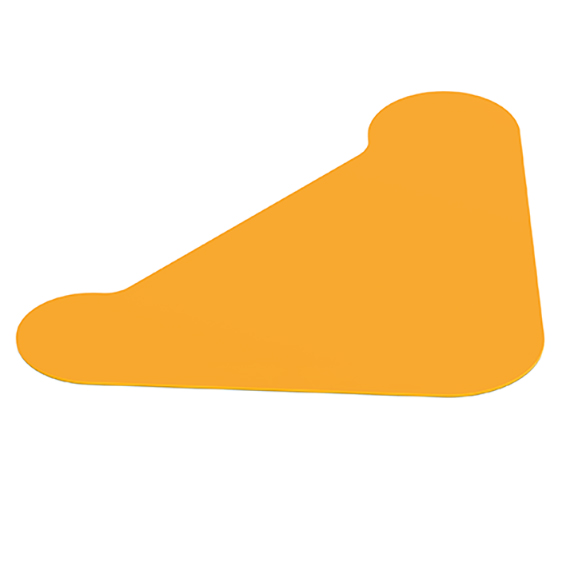

Position Marking End Cap for Parking Rail
Color:Amarillo ≈ RAL 1003Países de Entrega:En todo el mundoDescription:To cover the screw holes of end caps for parking rail; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail; Included in the end cap sets, here separately available as replacementFastening:Self-adhesive surface on the backsideMaterial:Plástico PET
Screw Cover Infeed Cap for Guiding Rail FIFO
Color:Amarillo ≈ RAL 1003Países de Entrega:En todo el mundoDescription:To cover the screw holes of infeed caps for guiding rail FIFO; Yellow screw cover with signal effect to indicate the infeed position for the wheels of floor dollys; Included in the infeed cap set, here separately available as replacementFastening:Self-adhesive surface on the backsideMaterial:Plástico PC

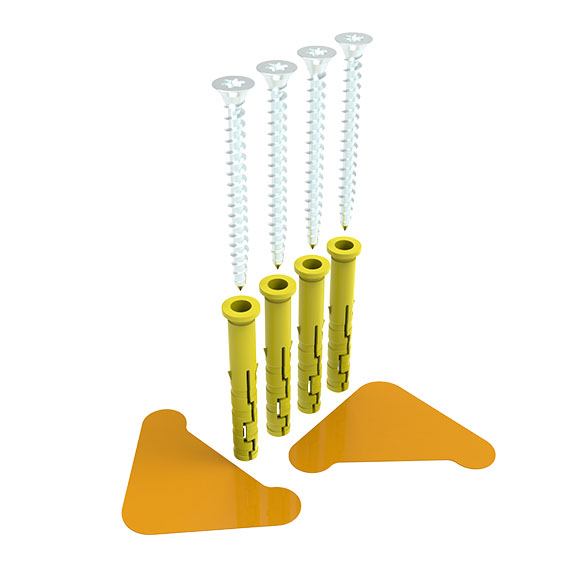

Screw-on Set for End Caps Parking Rail High / High
Color:Plastic anchor: Yellow Position marking: Yellow ≈ RAL 1003Países de Entrega:En todo el mundoDescription:To screw on end caps for parking rail high / high for heavy-duty use With position marking for covering the screw-on points afterwardsMaterial:Screw: Steel Plastic anchor: Plastic Position marking: Plastic PETSet:4 board screws, 4 plastic anchors, 2 position markingsSurface:Screw: Zinc plated
Tuerca corredera giratoria 11.6 x 4.6 mm con resorte
Países de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring leaf, ESD electrostatical dischargingMaterial:T-slot nut: Steel / stainless steel Spring leaf: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:T-slot nut: Zinc-plated / plain Spring leaf: Plain
Tuerca corredera giratoria 13.5 x 7.2 mm con bola de resorte
Países de Entrega:En todo el mundoDescription:Self-aligning roll-in T-slot nut with spring loaded ballMaterial:T-slot nut: Steel / stainless steel Ball: Stainless steel Spring: Spring steelEspeciales:Descarga electrostática ESD, diferentes longitudes con roscas múltiples en diferentes tamaños disponibles bajo pedidoSurface:T-slot nut: Zinc-plated / plain Ball: Plain Spring: Plain
