Color:NegroPaíses de Entrega:En todo el mundoDescription:For guiding cables both lengthwise and crosswise to aluminum profiles without additional cable ties, simple to insert due to spiral shape; can be mounted into the slot by an eight of a turnMaterial:Plástico PA, bola de vidrio reforzadoEspeciales:Otros colores bajo pedido

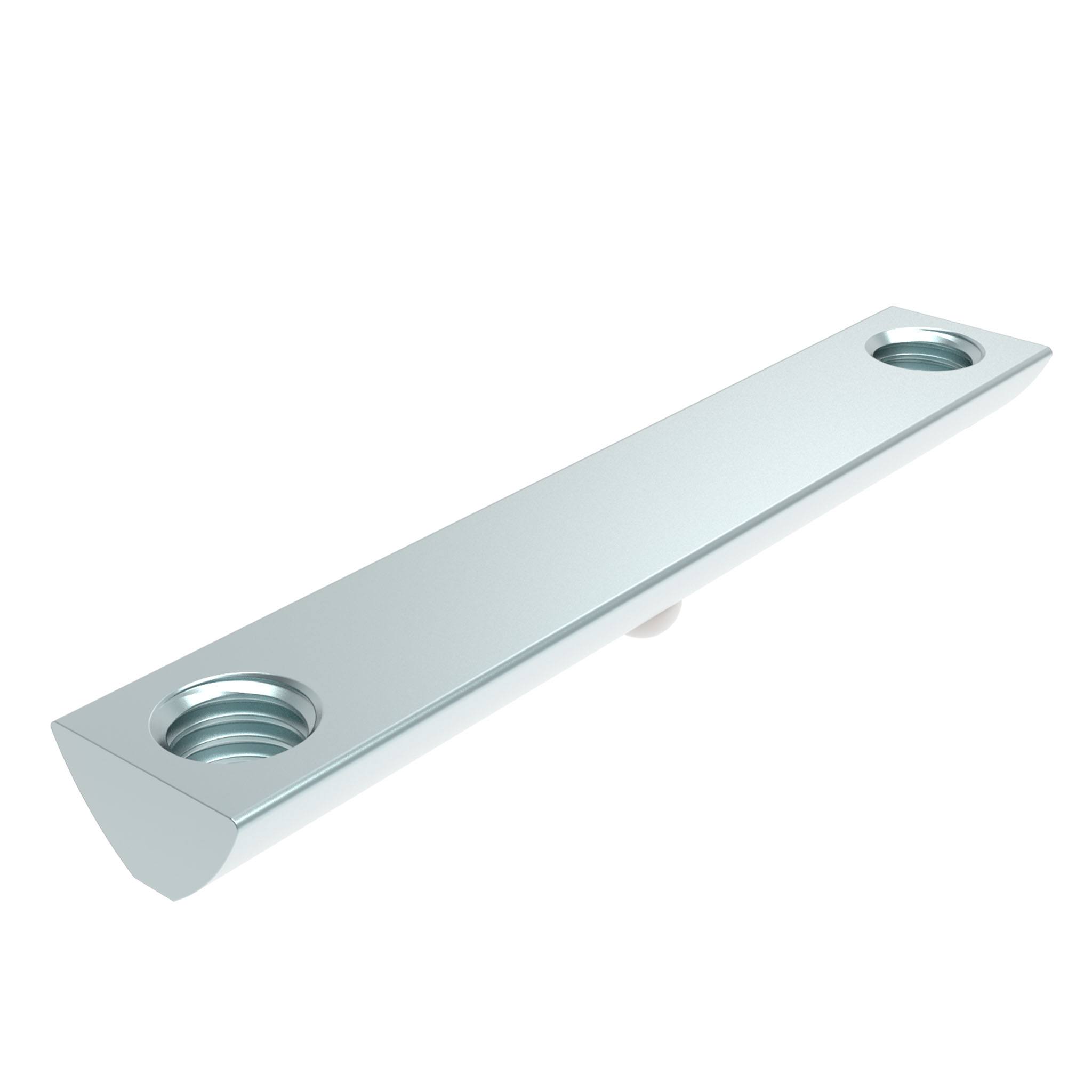

Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

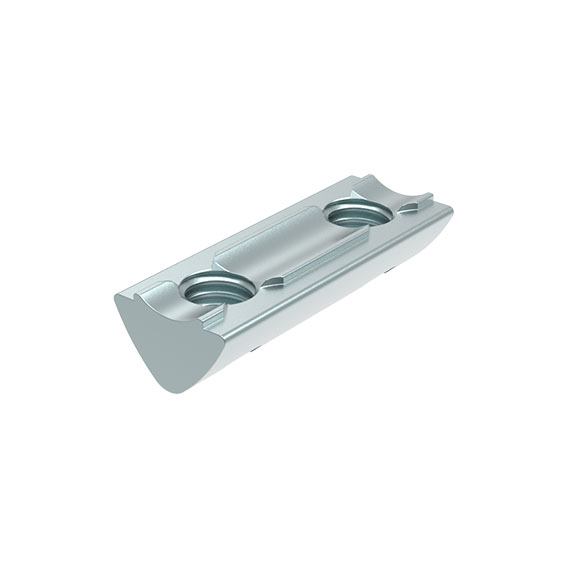

Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

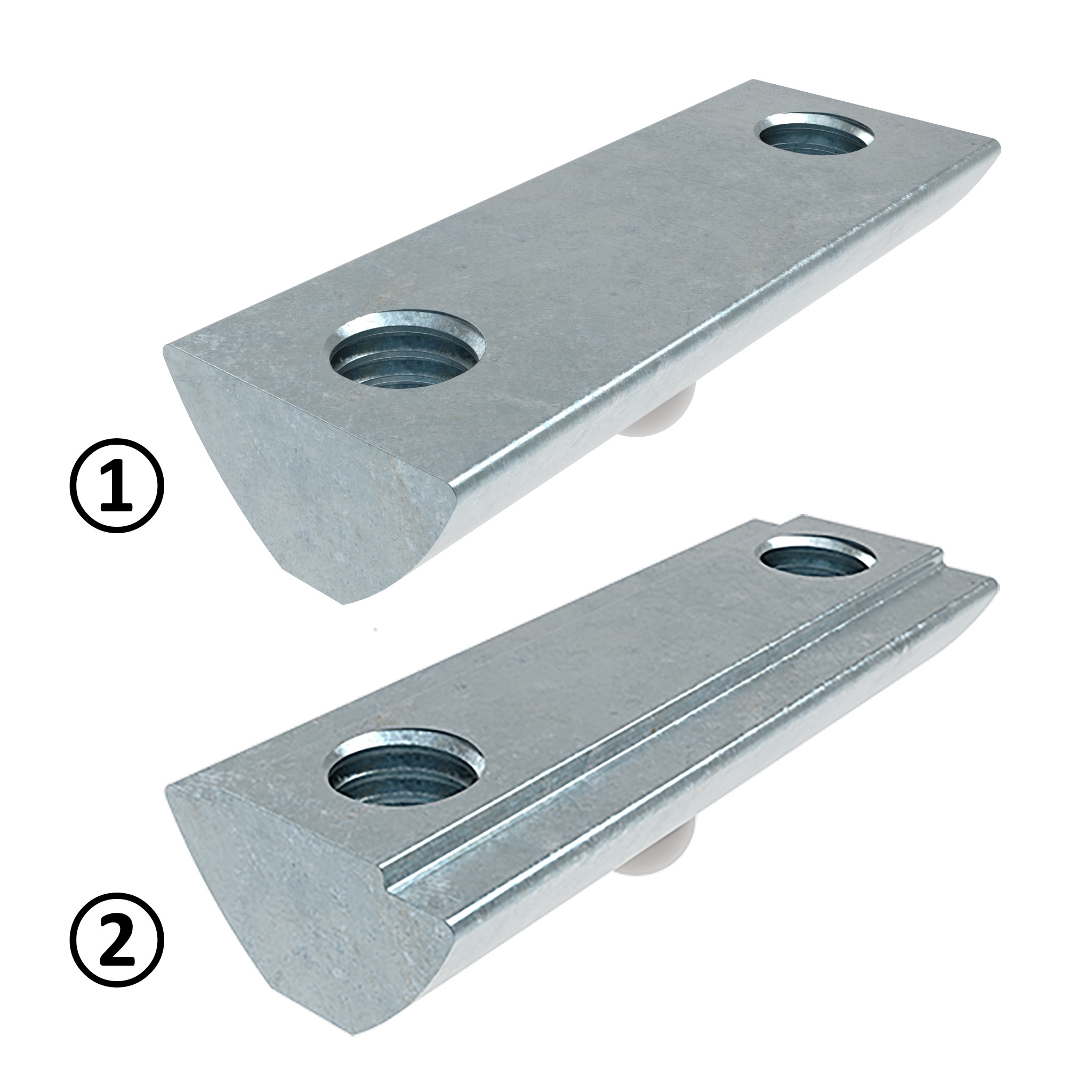

Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:AceroSpecials:Different lengths with multiple threads in different sizes available on requestSuperficie:Galvanizado

Países de Entrega:En todo el mundoDescription:Roll-in double T-slot nutMaterial:Double T-slot nut: Steel Ball: Stainless steel Spring: Spring steelSpecials:Different lengths with multiple threads in different sizes available on requestSurface:Double T-slot nut: Zinc-plated Ball: Plain Spring: Plain

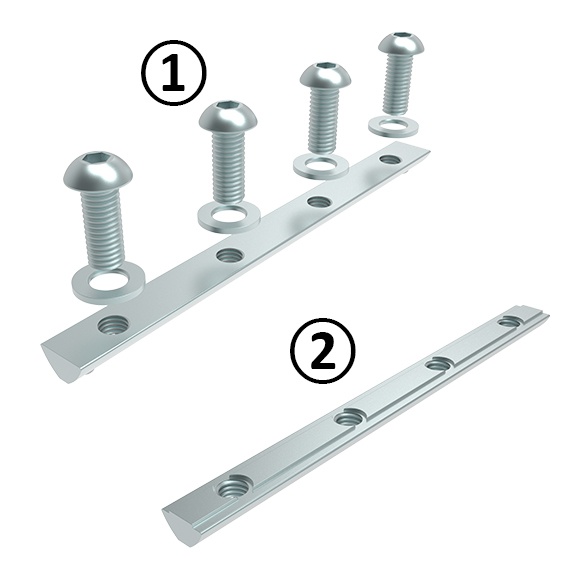

Assembly Set:4x M8, 4 screws DIN EN ISO 7380 (DIN 34805)- M8 x 20, 4 shims DIN EN ISO 7089 (DIN 125) - 8,4Países de Entrega:En todo el mundoDescription:Roll-in T-slot nutMaterial:T-slot nut, screws and shims: Zinc plated steel Ball: Stainless steelSpecials:ESD electrostatical discharging, available on request

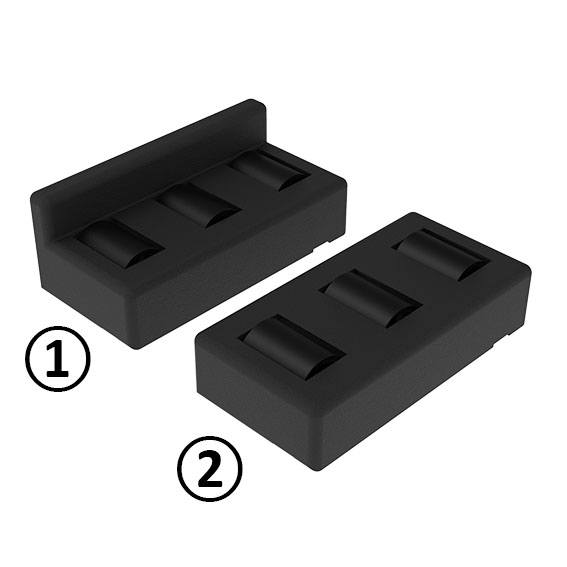

Color:NegroPaíses de Entrega:En todo el mundoDescription:For manufacturing roller conveyors in any width and length; Clip-Fix System provides for quick assembly without any need for toolsFastening:Secure fastening through simply inserting into slotMaterial:Casing: Plastic PA, glass ball reinforced Rollers: Plastic POM

Assembly Set 1:2 hammer nuts slot 8 - M5Assembly Set 2:2 hammer nuts slot 10 - M5Color:NegroPaíses de Entrega:En todo el mundoDescription:For manufacturing roller conveyors in any width and length, incl. 2 Screws M5 x 25Fastening:With clamp hammer: To be fastened by screw-in or knock-in 2 screws M5 x 25 Without clamp hammer: Using 2 screws M5 x 25 and T-slot nuts or hammer nutsMaterial:Casing: Plastic PA, glass ball reinforced Rollers: Plastic POM Assembly set: SteelSuperficie:Conjunto de montaje: GalvanizadoTip:*ESD delivery of electrostatical discharging version without clamp hammer, to fasten with ESD electrostatical discharging hammer nuts or T-slot nuts

Países de Entrega:En todo el mundoDescription:To guide moving parts on a sanded shaft Ø 10 With ball bearing To build individual bearing unitsMaterial:AceroSurface:Sanded

Países de Entrega:En todo el mundoDescription:To guide moving parts on a sanded shaft Ø 14 With ball bearing To build individual bearing unitsMaterial:Acero / acero inoxidableSurface:Sanded

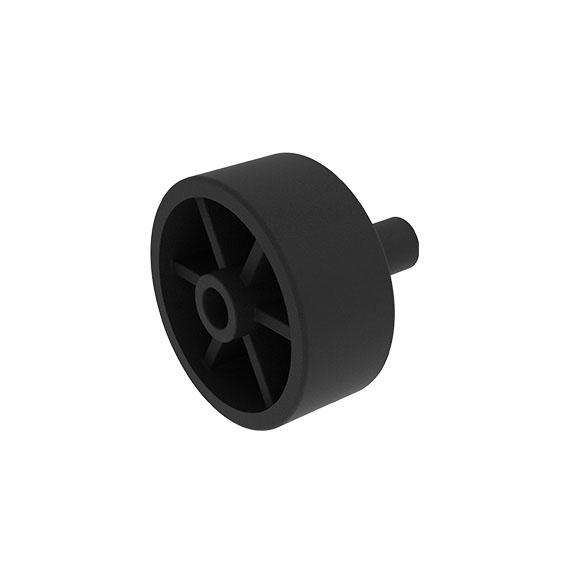

Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A resilient and smooth running half roller for roller tracks AL, short center distancedue to staggered roller layout, quickly replaceableMaterial:Standard version: # Plastic PA, glass ball reinforced ESD electrostatical discharging version: Plastic PA, carbon fibre reinforcedEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACH2691.50; Compatible Brake see 062RBH26E;

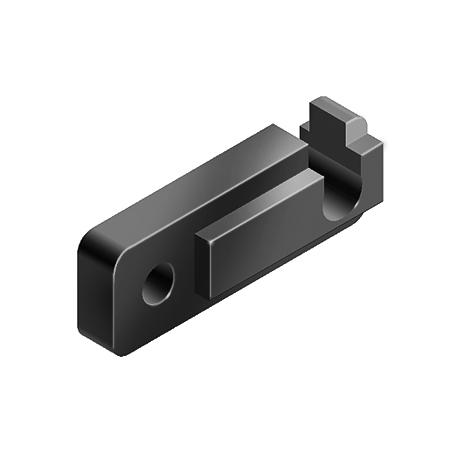

Assembly Set 1:1 screw DIN 7984 - M6 x 12, 1 hammer nut M6 - slot 8Assembly Set 2:1 screw DIN 7984 - M6 x 16, 1 hammer nut M6 - slot 10 Color:Roller Mounting Block: BlackPaíses de Entrega:En todo el mundoDescription:To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning itMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros colores bajo pedidoSuperficie:Conjunto de montaje: Galvanizado

Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profileMaterial:Roller: Plastic PA, glass ball reinforced Bush: Steel Washer: SteelEspeciales:Descarga electrostática ESD, otros colores bajo pedidoSurface:Bush: Zinc plated Washer: Zinc plated

Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profileMaterial:Roller: Plastic PA, glass ball reinforced Bush: Steel Washer: SteelEspeciales:Descarga electrostática ESD, otros colores bajo pedidoSurface:Bush: Zinc plated Washer: Zinc plated

Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Descarga electrostática ESD, otros colores bajo pedido

Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts on a slide rail attached to the aluminum profile or as lateral guide for moved goods ; With ball bearingMaterial:Plástico PA, bola de vidrio reforzadoSet:1 Roller 1 screw DIN EN ISO 4762 (DIN 912) M6 x 35, zinc plated steel 2 washers DIN EN ISO 7089 (DIN 125) - 6.4

Color:NegroPaíses de Entrega:En todo el mundoDescription:For lateral guiding or supporting at the transition from roller tracksMaterial:Plastic PA, carbon fiber reinforced

Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plastic PA, glass ball reinforced Pins: Zinc plated steelEspeciales:Descarga electrostática ESD, otros colores bajo pedido

Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plástico PA, bola de vidrio reforzadoSet:1 roller, 1 hammer nut, slot 10 M8, zinc-plated steel, 1 cylinder head screw DIN 7984 M8 x 40, zinc-plated steel, 1 washer DIN 7349Especiales:Descarga electrostática ESD, otros colores bajo pedido

Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A resilient and smooth running roller forAL roller tracks, optionally without or withflange as lateral guiding, quickly replaceableMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR2891.50; Compatible Brake R 28 see 062RBR28E;

Color:Negro, amarillo, rojo, verde, grisPaíses de Entrega:En todo el mundoDescription:A compact roller for roller tracks AL, very small center distance and maximum number of axles for minimum vibrations and reduced point load on the goods, quickly replaceableMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoEspeciales:Otros materiales, otros colores bajo pedidoTip:Compatible Axle see 062AXM; Compatible Cage see 062ACR991.50;

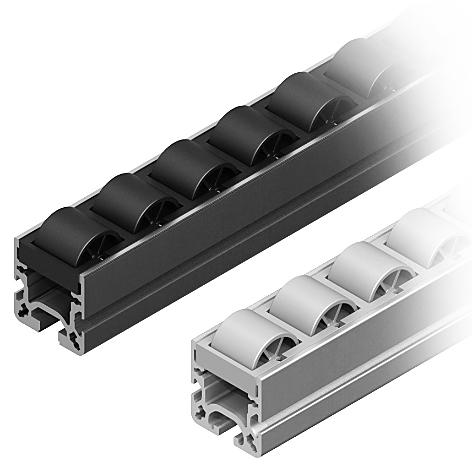

Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tablePaíses de Entrega:En todo el mundoDescription:Resilent and smooth running roller track AL R28, quickly replaceableMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc plated

Color:Standard roller / cage: See table ESD electrostatical discharging roller / cage: See tablePaíses de Entrega:En todo el mundoDescription:Resilent and smooth running roller track AL R28, quickly replaceable, with flange as lateral guidingMaterial:Roller track profile AL: Aluminum Standard roller: Plastic PA, glass ball reinforced ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Standard cage: Plastic PA, glass fiber reinforced ESD electrostatical discharging cage: Plastic PA, carbon fiber reinforced Axle: SteelSpecials:Other materials, other colors, other lengths on requestSurface:Roller track profile AL, standard version: Anodized Roller track profile AL, ESD electrostatical discharging version: Anodized and processed ESD electrostatical discharging Axle: Zinc plated

Color:NegroPaíses de Entrega:En todo el mundoDescription:Resilient and smooth running roller track I 60x24Material:Roller track profile I: Steel ESD electrostatical discharging roller: Plastic PA, carbon fiber reinforced Axle: SteelEspeciales:Otros colores bajo pedido
