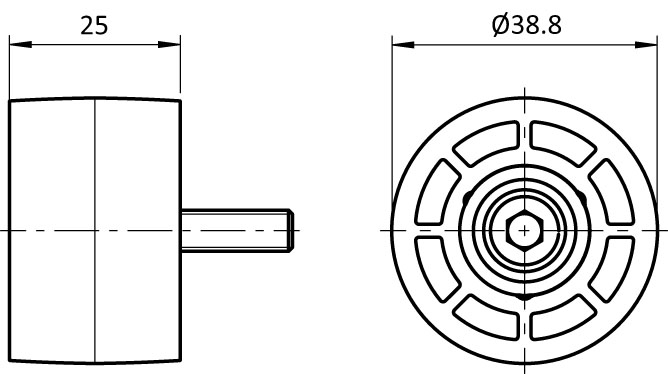

Roller Ø 39.5 for Tubular Frame Profiles (Set)

Descripción:

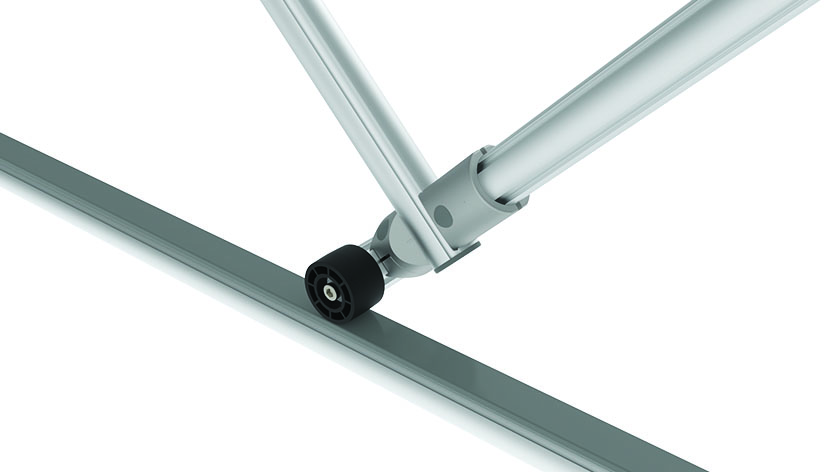

To guide moving parts on a slide rail attached to the aluminum profile or as lateral guide for moved goods ;
With ball bearing
Material:
Plástico PA, bola de vidrio reforzado

Color:
Negro

Set:
1 Roller
1 screw DIN EN ISO 4762 (DIN 912) M6 x 35, zinc plated steel
2 washers DIN EN ISO 7089 (DIN 125) - 6.4

Países de Entrega:
En todo el mundo
Cantidad por paquete: 10 piezas
Model: Plástico PA
Peso (g): 40.0
Numero de ERP: 146926

Variantes

Número de producto Profile CAD
I

Clasificación

ECLASS 6.0
23370203
ECLASS 7.0
23370203
ECLASS 8.0
23370203
ECLASS 9.0
23370203
ECLASS 10.0
23370203
ECLASS 11.0
23370203
ECLASS 12.0
23370203
ECLASS 13.0
23370203
Zolltarifnummer
83022000900
Número de Arancel Aduanero de Exportación
83022000

Certificados

Tags

Profile Type Profile Type I
Modular Dimension Modular Dimension D30
Profile Form Round Tubular Profiles, T-slot Profiles
