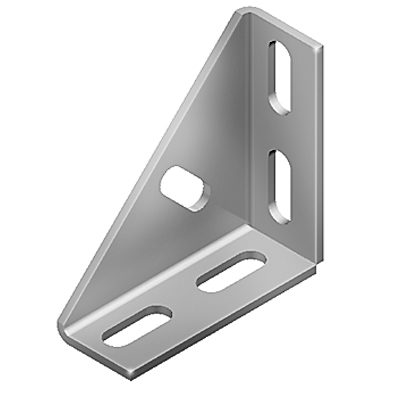

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

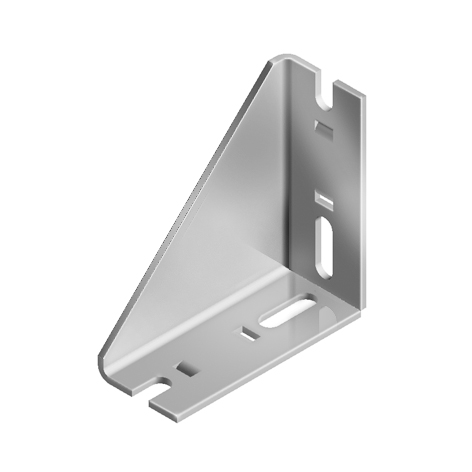

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

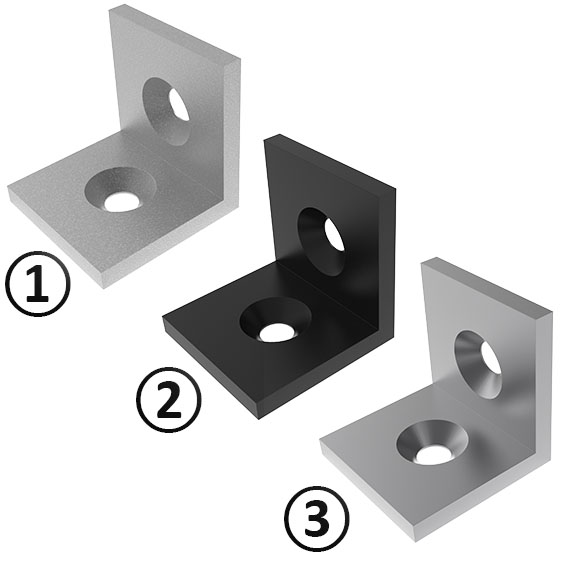

Color:Negro, color alu, -Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroEspeciales:Otras superficies bajo pedidoSuperficie:Galvanizado / recubierto de polvo

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroEspeciales:Otras superficies bajo pedidoSuperficie:Galvanizado

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

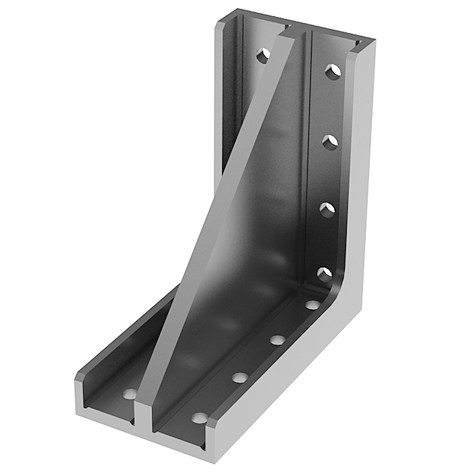

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Ductile iron SS410SEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Compatible Fixation T-slot Nut for Connection Angle 80 / 160 see 096000S83

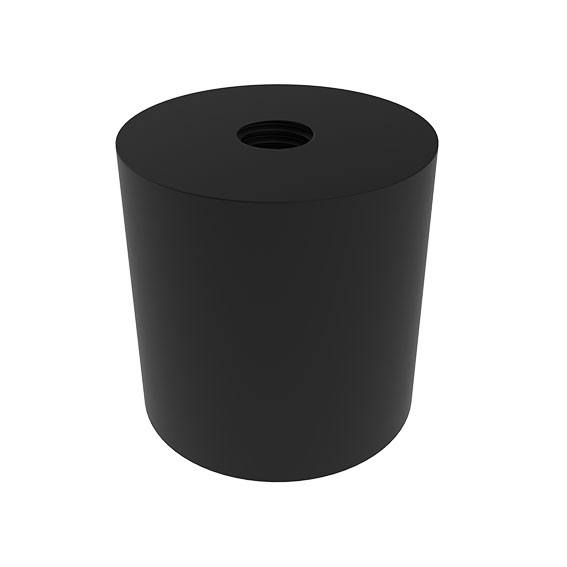

Color:NegroPaíses de Entrega:En todo el mundoDescription:End-position damping of doors, flaps and coversMaterial:Buffer: Natural rubber (NR), ≈ 55 Shore A Threaded bolt: SteelSurface:Threaded bolt: Zinc plated

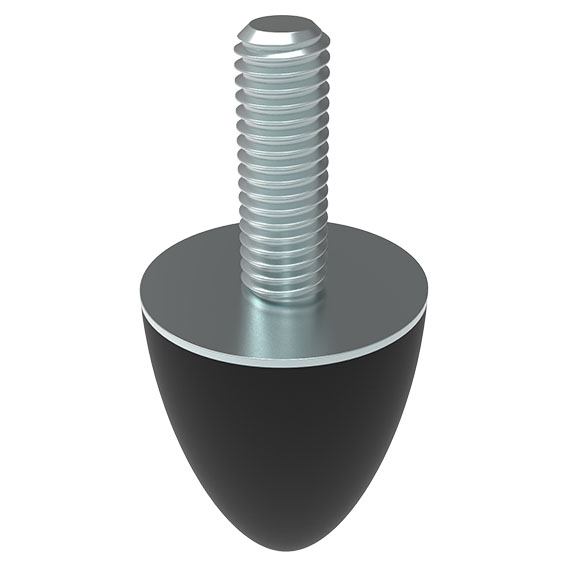

Color:Buffer: BlackPaíses de Entrega:En todo el mundoDescription:End-position damping of doors, flaps, covers working pieces and goodsMaterial:Buffer: Rubber NBR, ≈ 55 Shore A Threaded insert: SteelSurface:Threaded bolt: Zinc platedTip:Compatible End Plate AL see 062AT4040;

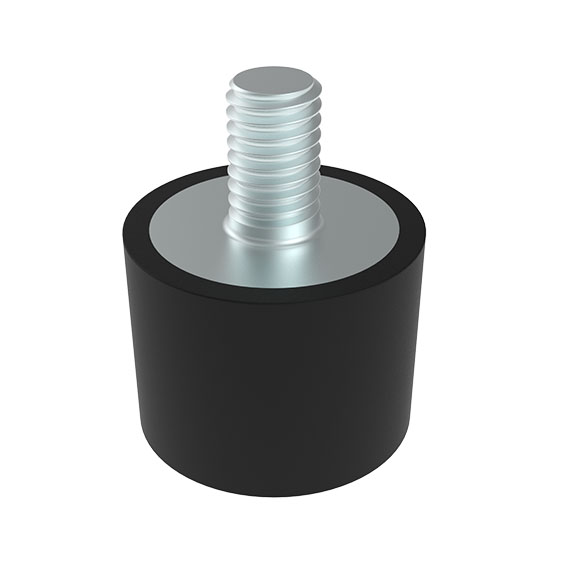

Color:Buffer: BlackPaíses de Entrega:En todo el mundoDescription:End-position damping of doors, flaps and coversMaterial:Buffer: Natural rubber (NR), ≈ 55 Shore A Threaded bolt: SteelSurface:Threaded bolt: Zinc plated

Color:Rojo / blanco / negroPaíses de Entrega:En todo el mundoDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plástico PVC

Color:Body: Black Bristles: BlackPaíses de Entrega:En todo el mundoDescription:To tighten, carry, clean, guide and fixFastening:Simply inserting into slotMaterial:Body: Plastic ABS Bristles: Plastic PASpecials:Other sizes (FH, ØFD), polyester PBT bristles for exterior and humid areas on requestSurface:Bristle: Smooth

Color:Cover caps: BlackPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with holes drilled into the slot base, from the back with T-slot nuts in the strip handleMaterial:Strip handle: Aluminum Cover caps: Plastic PA, glass fiber reinforcedSet:1 strip handle in length L [mm], 1 cover cap left, 1 cover cap rightEspeciales:Diferentes longitudes bajo pedidoSurface:Strip handle: AnodizedTip:Compatible Cover Cap (Set) see 092021Consejo 2:* Observación: ¡Está realizando el pedido en metros!

Color:Suspension plate: BlackPaíses de Entrega:En todo el mundoDescription:To fix grab trays, grab containers and tray containers to horizontal or vertical tubular frame profiles with Ø 28 mm or Ø 30 mm outer diameterMaterial:Suspension plate: Plastics PA, glass fiber reinforced Assembly material: SteelSurface:Mounting material: Zinc platedTip:Compatible Grab Tray see 061MGT2D391H, compatible Grab Container see 061MGC2K291H, compatible Tray Container see 061MTC2K291H

Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:Fast and easy hanging of message frames, Secure hanging due to closed loop 360° rotatableMaterial:Plástico PATip:Compatible Hanging Hook see 02042HH Compatible S-Hook see 02042SH Compatible Knotted Chain see 02042KC Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

Color:Transparente (incoloro)Países de Entrega:En todo el mundoDescription:For hanging message frames Fast and easy mounting with integrated magnet 360° rotatableMaterial:Plástico PATip:Compatible Message Frame DIN A4 - 8.3" x 11.7" see 02041A415 Compatible Message Frame DIN A3 - 11.7" x 16.5" see 02041A315

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackPaíses de Entrega:En todo el mundoDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 system arm I40H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I40H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I40H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 system arm I40H 370 with monitor mount 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washer 8-FSt, 2 centering plate, 2 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackPaíses de Entrega:En todo el mundoDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 system arm I40L 370 with end friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 2:1 system arm I40L 370 with end friction joint 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 3:1 system arm I40L 370 with double friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Set 4:1 system arm I40L 370 with monitor mount 1 cover cap 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 washer 8-FSt, 1 centering plate, 1 T-slot nut - slot 8 - M8 1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet 1:1 system arm I80H 370 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 system arm I80H 370 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 system arm I80H 370 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

Color:NegroPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesFastening:From the front with hexagon screws, from the back with screws and with M8 nuts inserted into the cover capsMaterial:Plástico PA, bola de vidrio reforzadoEspeciales:Otros colores bajo pedidoConsejo:Nota: 1 juego = 2 piezasTip 2:Compatible Cover Cap for Comfort and System Handle (Set) see 092305

Color:NegroPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profiles, can be used as an end or middle piecePFA_Fastening:Por delante, con tornillos M6Material:Plástico PA, reforzado con fibra de vidrioSet:2 system handle legs 2 cover caps for screw-on point 2 cover caps for open hole in system handle leg as end pieceConsejo:Nota: 1 juego = 2 piezas

Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profileMaterial:Connector: Aluminum die-cast Cover cap: Plastic PA Assembly set: SteelSet:1 T-connector D28 - slot 10, 1 cover cap, 1 self-tapping screw S8 x 25 - hexalobular socket T40, 1 flange nut M8, 1 hammer head screw - Nut 10 - M8 x 20Surface:Connector: Plain Cover cap: Black Assembly set: Zinc plated

Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profilesPFA_Fastening:Con tornillos avellanados 1x M8 y 2 x M6Material:AceroSuperficie:GalvanizadoTip:Compatible Threaded Sleeve D28 M8 see 099RV28AS02

Países de Entrega:En todo el mundoDescription:To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profilesMaterial:AceroSet 1:1 T-connector plate, 2 T-slot nuts - slot 6 - M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Set 2:1 T-connector plate, 1 double T-slot nut - slot 8 - 2x M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Superficie:Galvanizado
