Productos

Países de Entrega:En todo el mundoDescription:A strong and cost efficient leveling foot commonly used for conveyor systemsMaterial:Aluminio fundido a presiónSuperficie:LisoTip:Compatible Cover Caps see 098F01, please use 1 piece out of this set

Color:Anti-slip Plate: light gray ≈ RAL 7035Países de Entrega:En todo el mundoDescription:Adjustable Pivot foot to equalize uneven floors; With integrated anti-slip plate; Including a sealing lip on the bottom that seals up to a slope of 8 degree with a possible max. of 20 degreeMaterial:Base: Stainless steel SS304 Anti-slip Plate: TPE ≈ 75 Shore A, water and oil resistant (up to 60°C), with antibacterial and antimicrobial protectionSpecials:As factory assembled leveling foot on requestTip:Compatible Threaded Rod see 098DM08025E et sq., Compatible Nut see 4DIN439BM5E et sq.

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip Plate see 098DG030 f., Compatible Floor Mounting see 098BI060ZS

Color:Aluminio blanco ≈ RAL 9006Países de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Zinc fundido a presiónSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq., Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate see 098DG030

Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot which can be fixed to the floorMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

Color:Negro, -Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, glued anti-slip plate on requestSuperficie:Polvo cubierto / zincado azulTip:Compatible Threaded Rod see 098EM08025M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-slip-Plate see 098EG030; (ECO feet are provided factory assembled)

Color:NegroPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Zinc fundido a presiónSpecials:Other sizes, other surfaces, other colors, screwed or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098DM08025M et sq. and 098DM08025E et sq., Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.

Color:NegroPaíses de Entrega:En todo el mundoDescription:A leveling foot for strong positioning on slightly uneven floorsMaterial:Zinc fundido a presiónSpecials:Other surfaces, other sizes, other colors, bolt-on or glued anti-slip plate on request; As factory assembled leveling foot on requestSuperficie:Polvo cubiertoTip:Compatible Threaded Rod see 098AM12066M, Compatible Nut see 4DIN439BM5M et sq., Compatible Anti-Slip Plate 098AG050

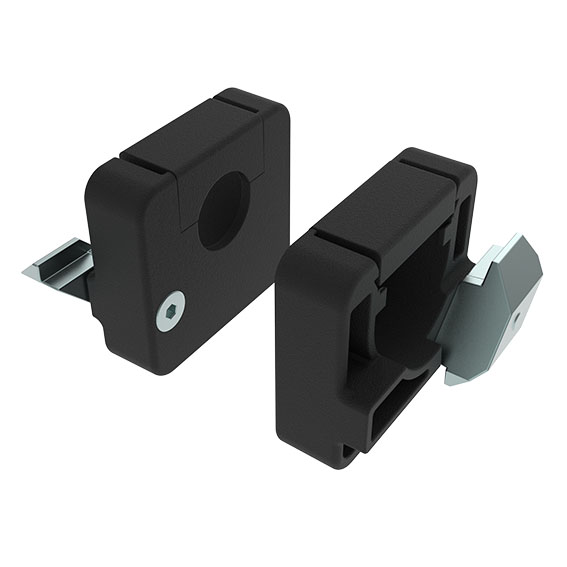

Color:Housing: BlackPaíses de Entrega:En todo el mundoDescription:To engage the bearings of a support roller I D32, mounting sideways in the slot 8 of the aluminum profileMaterial:Housing: Plastic PA, glass fiber reinforced Screw: Steel Rhombus nut: Zinc die-castSet:2 Bearing blocksSurface:Screw: Zinc plated Rhombus nut: Zinc platedTip:Compatible Bearing for Support Roller I D32 see 062CIL11K

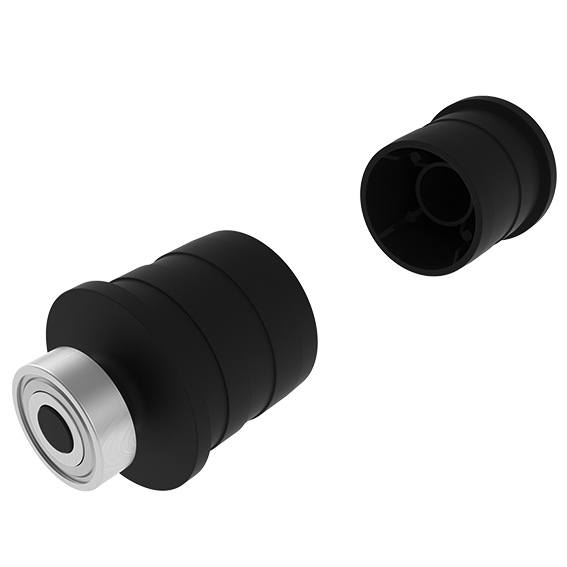

Color:Housing: BlackPaíses de Entrega:En todo el mundoDescription:To build a support roller from one piece of tube D32 made of aluminum or plastic; The lateral ball bearings are inserted in two bearing blocks on the aluminum profilesMaterial:Housing: Plastic PA, glass fiber reinforced Ball bearings: SteelSet:2 Bearings for support roller I D32Tip:Compatible bearing block see 062CIAK

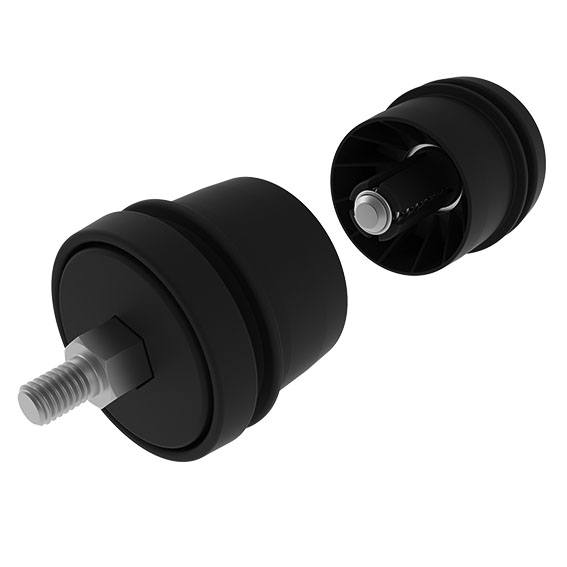

Color:Housing: BlackPaíses de Entrega:En todo el mundoDescription:To create a support roller I D50; ball beared, with circulating slot for ⌀ 4 mm round belt drive; with spring-loaded fastening bolt for subsequent insertingMaterial:Housing: Plastic PA, glass fiber reinforced Bolt: Steel Spring: Stainless steel Ball bearing: SteelSurface:Bolt: Zinc plated

Color:Wiper and lubricators: BlackPaíses de Entrega:En todo el mundoDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 1 Roller Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA128S01

Color:Wiper and lubricators: BlackPaíses de Entrega:En todo el mundoDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide loads, steel rollers with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: SteelSet:3 rollers 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 2 threaded sleeve - M8 2 press nuts - M8 1 excentric screw M8 1 adjusting washer - M8 1 tension pin 2 wiper and lubricators 2 wood screws - 3.5 x 20Surface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Tension pin: Zinc plated Wood screws: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I see 093CIUD141SA208S01

Color:Roller: BlackPaíses de Entrega:En todo el mundoDescription:For the construction of bearing units, assembly with machining to C-slide profile I To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: SteelSet:1 roller 1 carrier plate 3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16 1 threaded sleeve - M8 2 press nuts - M8 1 tension pinSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc platedTip:Compatible Cover Cap for C-slide Profile I (Set) see 091401S01 Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01

Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

Color:Wiper and lubricators: Black Cover caps: BlackPaíses de Entrega:En todo el mundoDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mmMaterial:Roller: Steel Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Roller: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Tension pin: Zinc plated Wood screws: Zinc plated Profile: Anodized

Color:Wiper and lubricators: Black Cover caps: BlackPaíses de Entrega:En todo el mundoDescription:To build sliding doors To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Rollers: Steel Carrier plate: Steel Screws: Steel Threaded sleeves: Steel Press nuts: Steel Excentric screw: Steel Adjusting washer: Steel Tension pin: Steel Wiper and lubricators: Plastic PA / felt / spring steel Wood screws: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Rollers: Zinc plated Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeves: Zinc plated Press nuts: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Wood screws: Zinc plated Profile: Anodized

Color:Roller: Black Cover caps: BlackPaíses de Entrega:En todo el mundoDescription:To build sliding doors To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mmMaterial:Roller: Plastic PA Carrier plate: Steel Screws: Steel Threaded sleeve: Steel Press nuts: Steel Tension pin: Steel Profile: Aluminum Cover caps: Plastic PA, glass fibre reinforcedSurface:Carrier plate: Zinc plated Screws: Zinc plated Threaded sleeve: Zinc plated Press nuts: Zinc plated Profile: Anodized

Países de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesPFA_Fastening:Por delante, con tornillos avellanados M4Material:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSuperficie:Liso

Países de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesPFA_Fastening:Por delante, con tornillos avellanados M6Material:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSuperficie:Liso

Países de Entrega:En todo el mundoDescription:To hinge panels or aluminum profilesPFA_Fastening:Por delante, con tornillos avellanados M6Material:Wing: Stainless steel SS316 Bolt: Stainless steel SS430 FSuperficie:Liso
