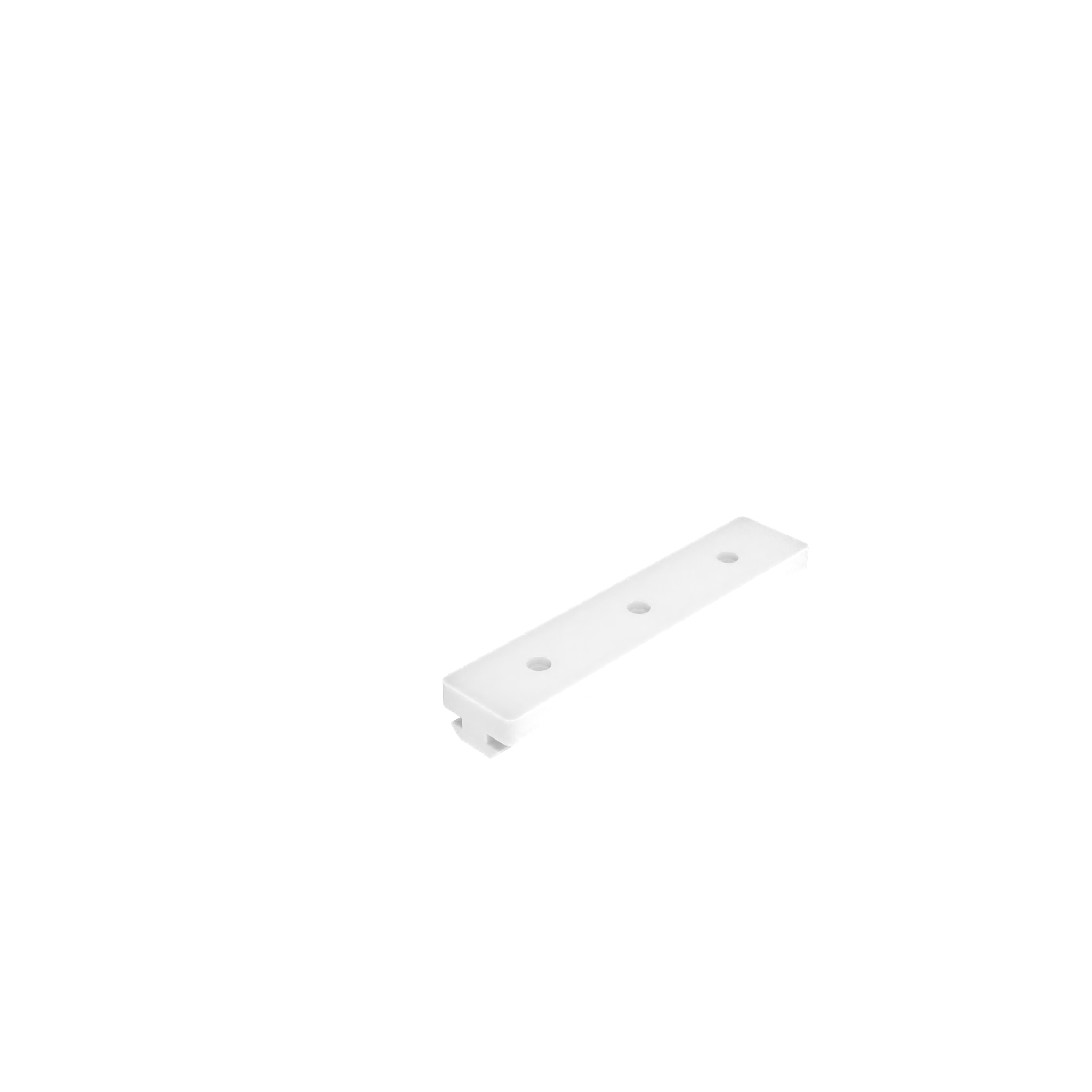

Profile Slider Flats
Precio normal:
0,00 €
Número de producto:
093SM06S02
Cantidad por paquete:
10 piezas
Descripción:

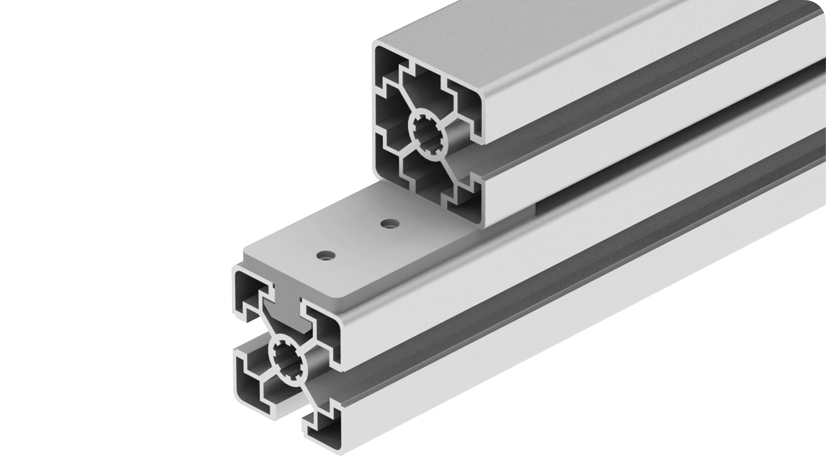

To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for panels
To guide slidingly profiles with slot; economic and wear-resistant solution, e.g. for panels
Material:
Plástico POM
Superficie:
Natural
Fastening:
With sheet-metal screws
Países de Entrega:
En todo el mundo
Plástico POM
Superficie:
Natural
Fastening:
With sheet-metal screws
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | Slot 6, 8, 10 |
| Peso (g): | 13.0 |
| Numero de ERP: | 129091 |
Variantes

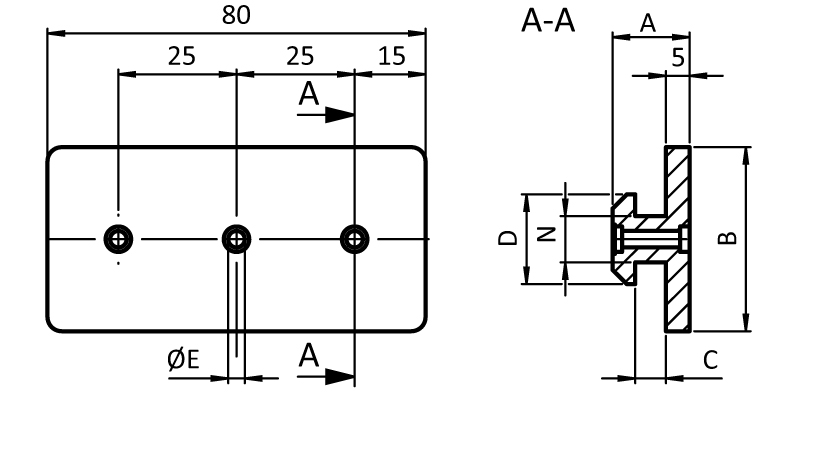

| Número de producto | D (mm) | Profile | A (mm) | B (mm) | C (mm) | Ranura N (mm) | E (mm) | CAD |
|---|---|---|---|---|---|---|---|---|
| 11.5 | B | 9.8 | 17.0 | 2.3 | 6 | 2.8 |
|
|
| 15.0 | B | 11.5 | 26.0 | 3.0 | 8 | 2.8 |
|
|
| 19.0 | B | 16.3 | 39.0 | 6.5 | 10 | 3.5 |
|
Retratos de productos
Bearing Units
With the FATH Bearing Units for C-rail profiles, it is easy to design slide units and sliding doors yourself. The different designs are very robust and can also be installed offset by 180° - maximum flexibility for individual applications.
Clasificación
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360192
- ECLASS 12.0
- 23360192
- ECLASS 13.0
- 23360192
- Zolltarifnummer
- 39269097900
- Número de Arancel Aduanero de Exportación
- 39269097
Tags
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot size 6 |
| Profile Form | T-slot Profiles |
