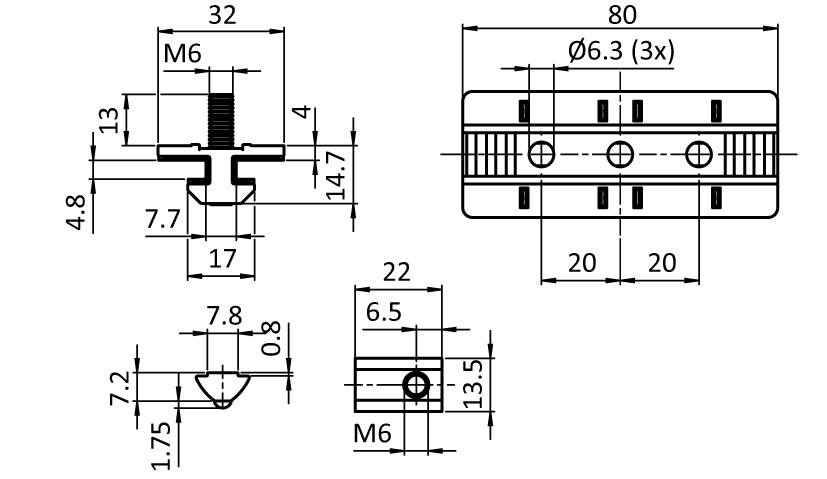

Profile Slider ZN 40 x 80 Fixed Bearing (Set)
0,00 €

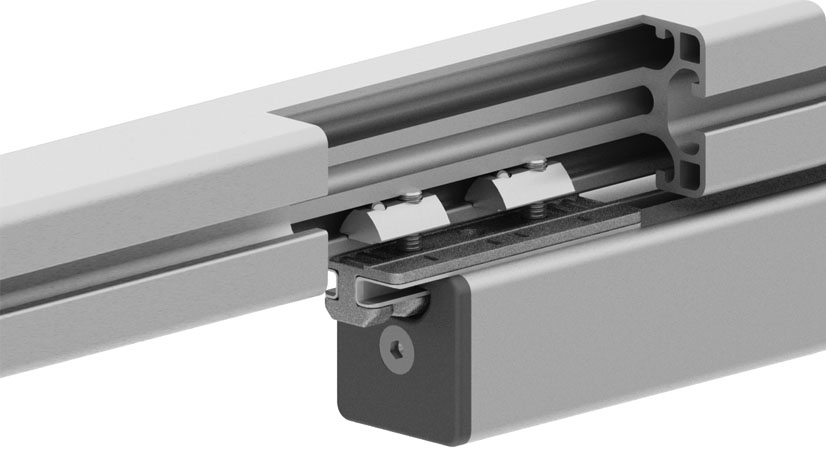

To guide slidingly profiles with slot 8, fixed bearing*
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
O-ring: EPDM
Surface:
Sliding carriage: Zinc plated
Fixation: Zinc plated
Color:
Slide shoe: Natural
O-ring: Black

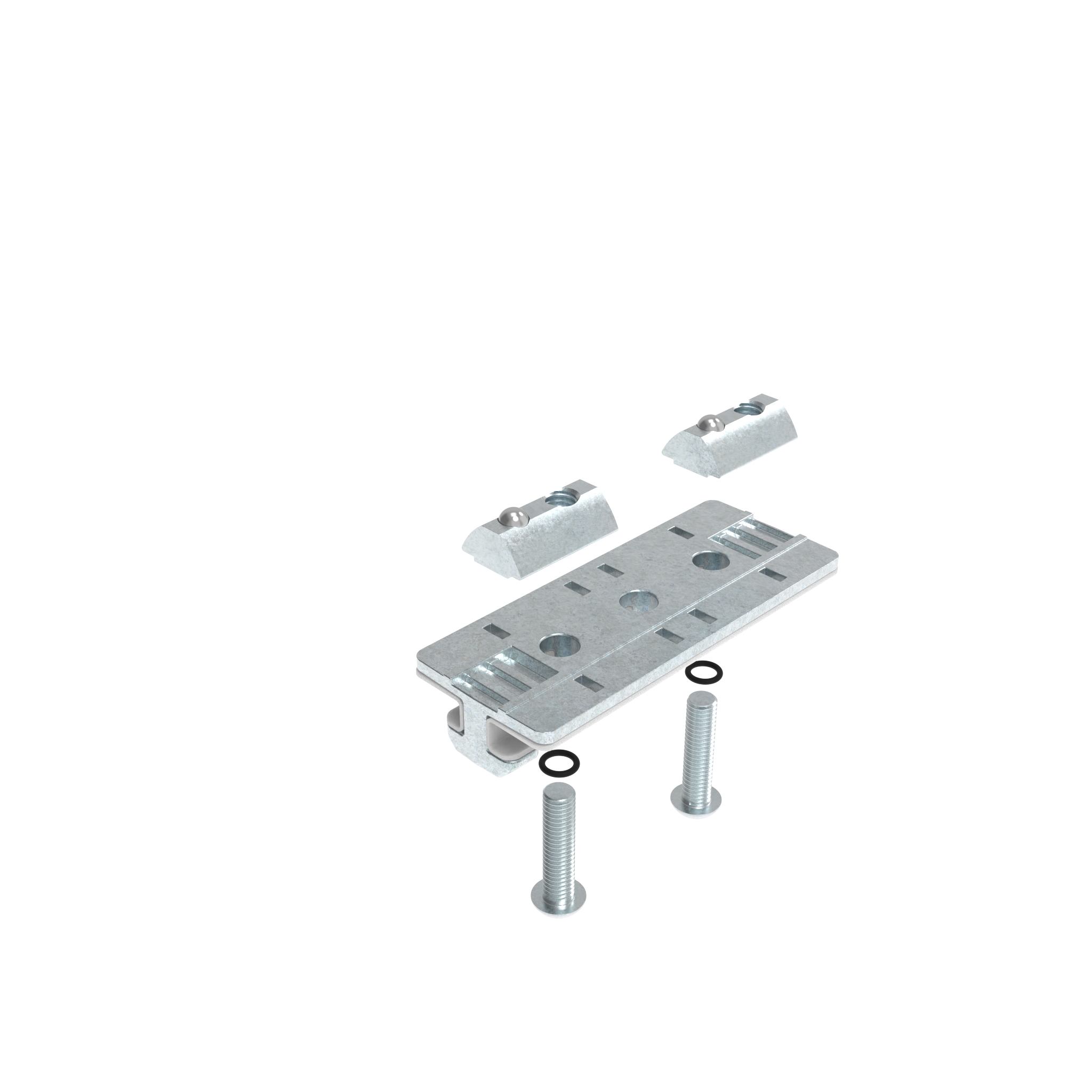

Set:
1 sliding carriage,
2 slide shoes,
2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25,
2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5,
2 T-slot nuts - slot 8 - M6
Tip:
*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.
Tip 2:
Compatible Profile Slider ZN 40 x 80 loose bearing see 093PS0840L
Países de Entrega:
En todo el mundo
| Cantidad por paquete: | 10 piezas |
|---|---|
| Model: | Slot 8 |
| Peso (g): | 105.0 |
| Numero de ERP: | 127365 |
