Profile Slider ZN 40 x 80 Fixed Bearing with Locking Lever (Set)
0,00 €
To guide slidingly profiles with slot 8,fixed bearing*; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop;
retention force at maximum tightening torque (15 Nm) 600 N
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Clamp lever handle: Plastic, glass fiber reinforced
Clamp lever mechanics: Steel
O-ring: EPDM
Surface:
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Clamp lever mechanics: Oxide finish
Color:
Slide shoe: Natural
Clamp lever handle: Black
O-ring: Black

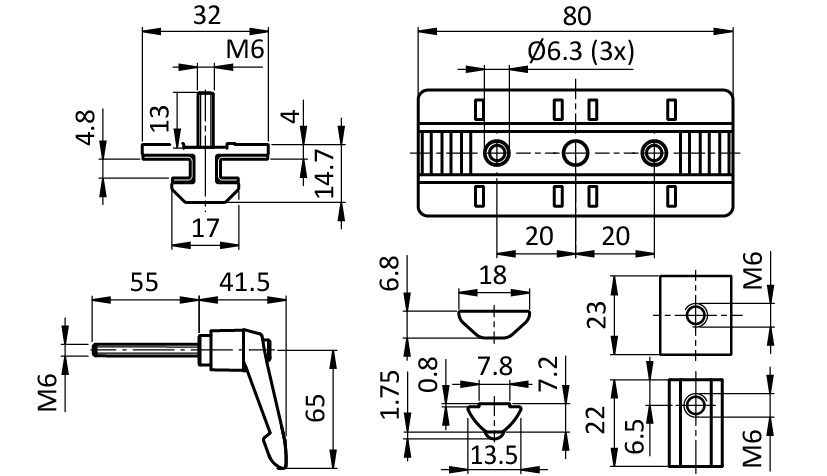

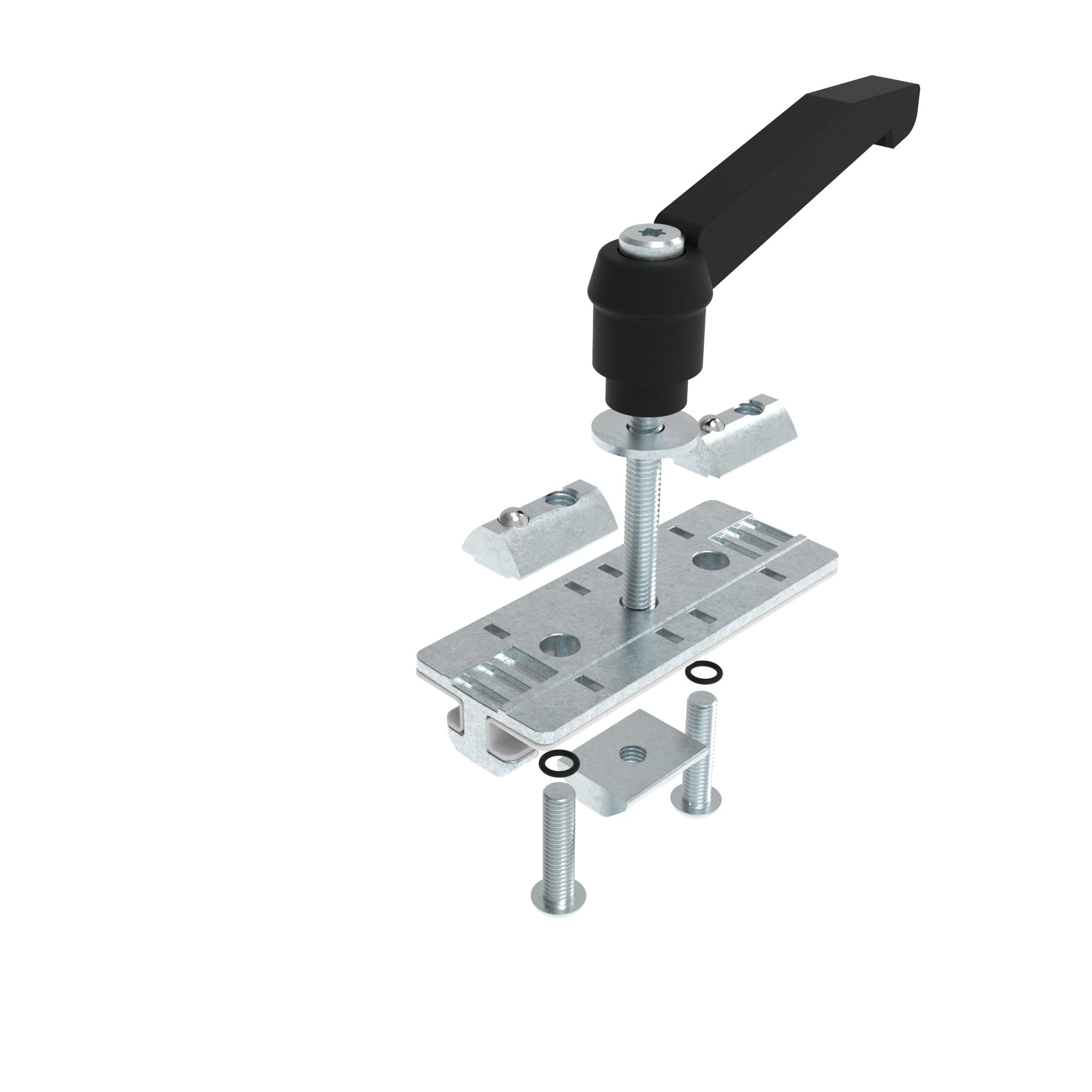

Set:
1 sliding carriage,
2 slide shoes,
1 clamp lever with external thread M6 x 55**,
1 special T-slot nut - slot 8 - M6,
1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm,
2 button head screws DIN EN ISO 7380 (DIN 34805) - M6 x 25,
2 O-rings DIN EN ISO 3601 (DIN 3771) - 5 x 1.5,
2 T-slot nuts - slot 8 - M6
Tip:
*Profile tracks with several profile slides ZN 40 x 80 need to be executed as a combination of a loose bearing (L) and a fixed bearing (F). This way, shape tolerances can be compensated and easy movability is provided.

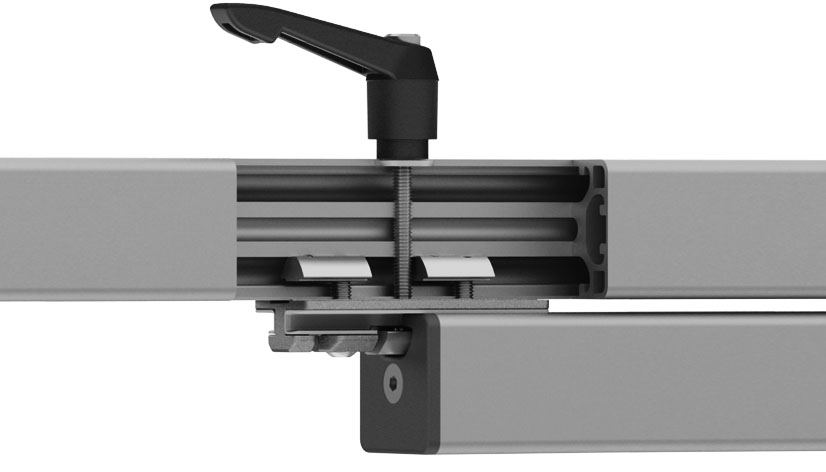

**Use of the M6 clamp lever:
40 mm profile + 40 mm profile, thread length: 55 mm
Cut to length of the M6 clamp lever, e.g.:
40 mm profile + 20 mm profile, cut thread length to: 35 mm
40 mm profile + 10 mm panel, cut thread length to: 25 mm
Tip 2:
Compatible Profile Slider ZN 40 x 80 Loose bearing see 093PS0840L
Compatible Loose bearing with clamp lever see 093PS0840LS01
