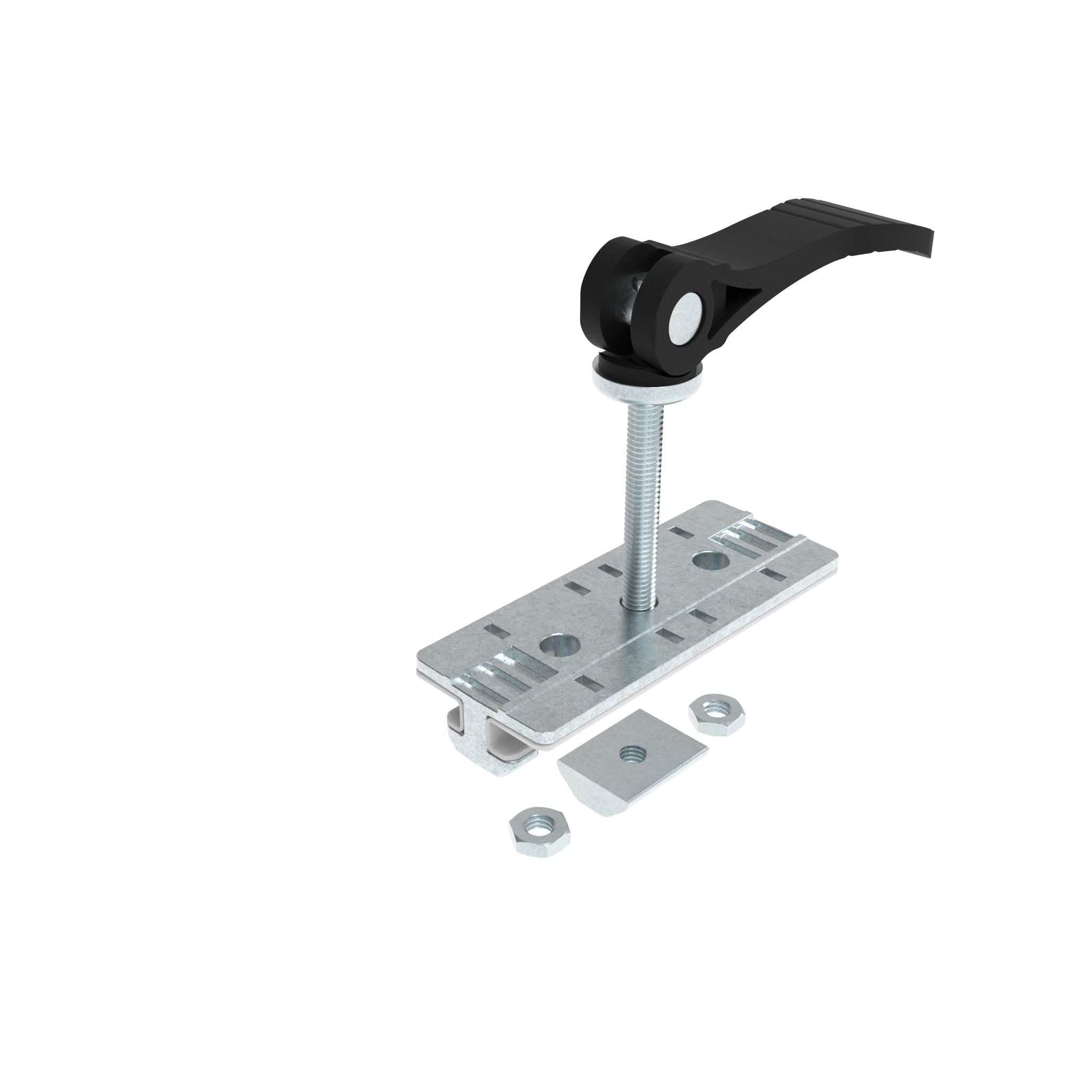

Profile Slider ZN 40 x 80 with Cam Lever (Set)

0,00 €

Version

Witch cam lever

Profile

I

Número de producto: 093PS0840S02

Cantidad por paquete: 10 piezas

Descripción:

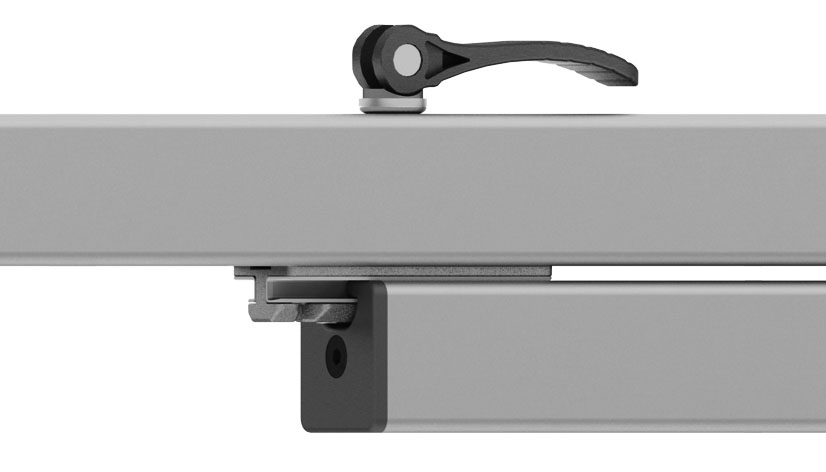

To guide slidingly profiles with slot 8, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stop; including hexagon nuts M6 for the attachment of additional components

Material:
Sliding carriage: Zinc die-cast
Slide shoe: Plastic POM
Fixation: Steel
Cam lever handle: Plastic, glass fiber reinforced
Cam lever mechanics: Steel

Surface:
Sliding carriage: Zinc plated
Slide shoe: Zinc plated
Cam lever mechanics: Zinc plated

Color:
Slide shoe: Natural
Cam lever handle: Black

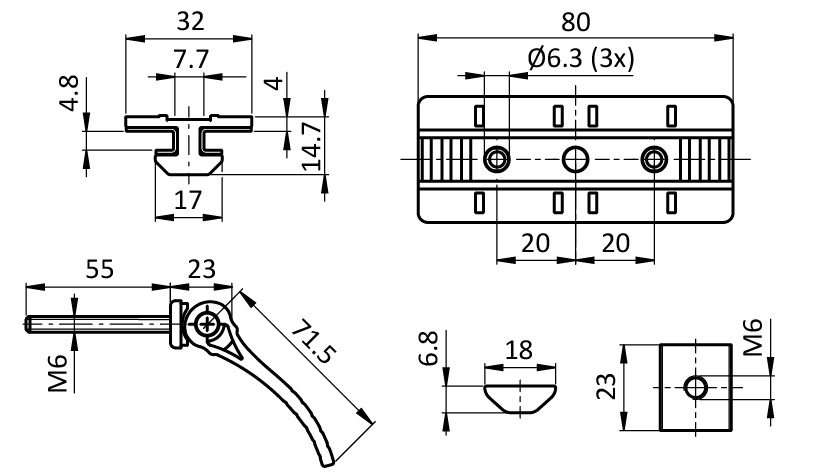

Set:
1 sliding carriage,
2 slide shoes,
1 cam lever with external thread M6 x 55*,
1 special T-slot nut - slot 8 - M6,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6

Tip:
*Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm
Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm
40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm
