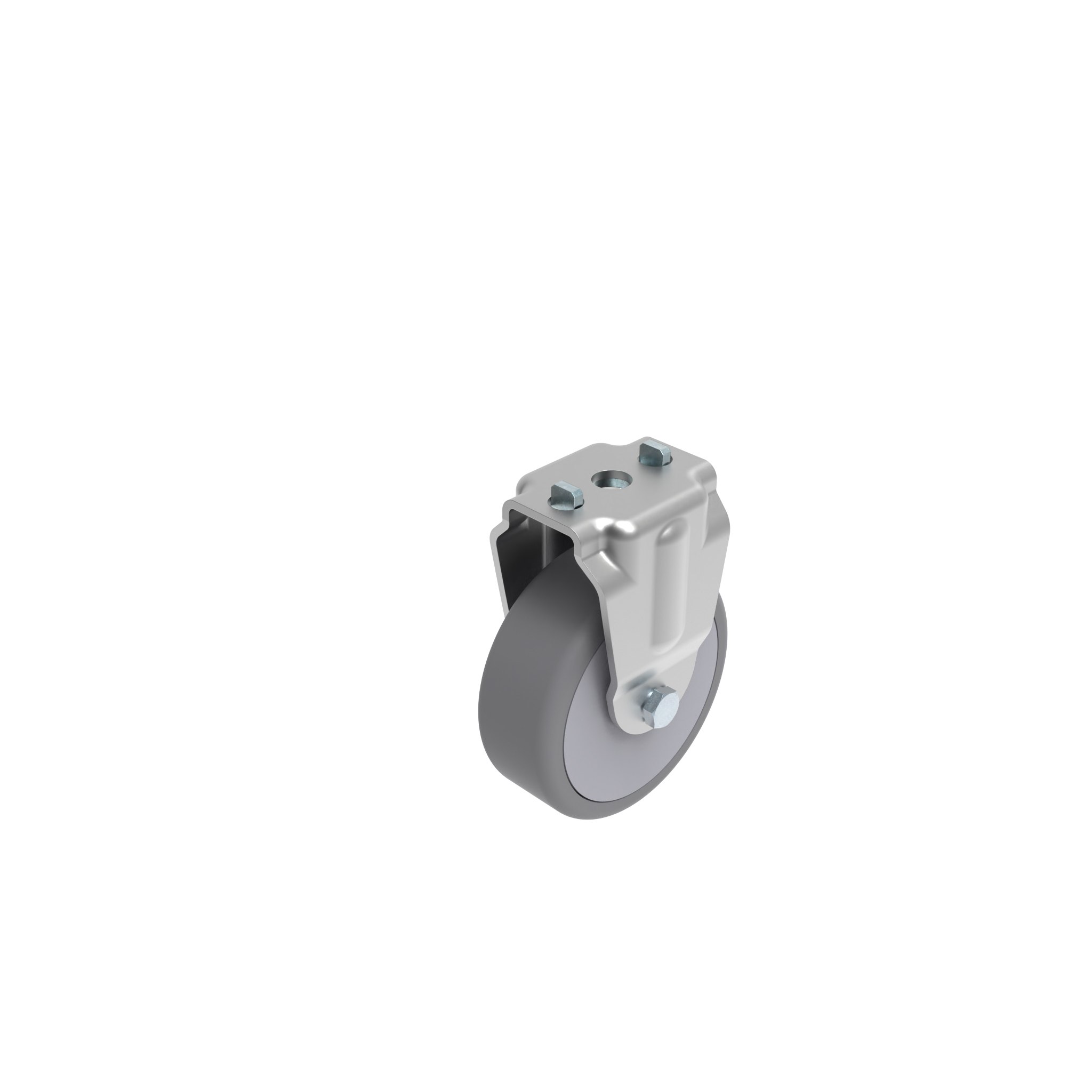

Rueda fija Ø 75
0,00 €
Número de producto:
098F075TN
Cantidad por Paquete:
1 pieza
Información sobre el producto "Rueda fija Ø 75"
Color:
Housing: Alu color
Tread: See table
Wheel body: Gray
Países de Entrega:
En todo el mundo
Description:

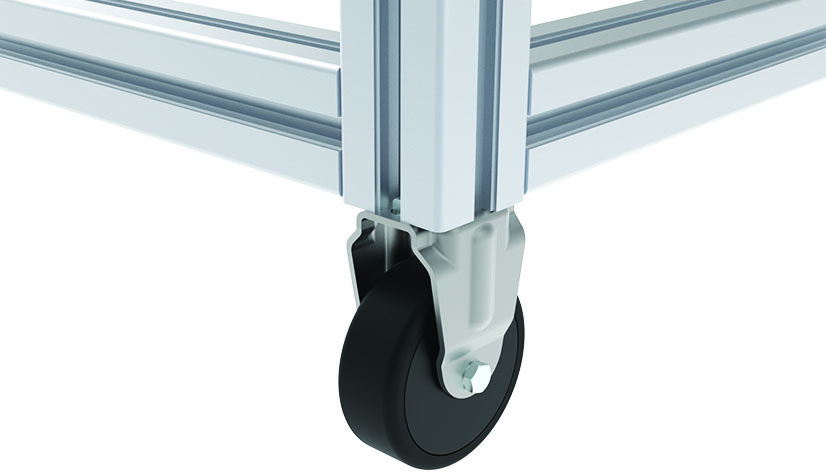

Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotation
Fastening:
For end face mounting, a suitable thread must be cut into the core hole
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Locating pin: Steel
Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido
Surface:
Housing: Powder coated
Locating pin: Zinc plated
Housing: Alu color
Tread: See table
Wheel body: Gray
Países de Entrega:
En todo el mundo
Description:
Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles, with optional locating pin slot 8 secured against rotation
Fastening:
For end face mounting, a suitable thread must be cut into the core hole
Material:
Housing: Steel
Tread: See table
Wheel body: See table
Locating pin: Steel
Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido
Surface:
Housing: Powder coated
Locating pin: Zinc plated
| Model: | With bolt hole pattern and separate locating pin for slot 8 |
|---|---|
| Cantidad por Paquete: | 1 pieza |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Peso (g): | 273.0 |
| (ECLASS 6.0): | 23370202 |
| (ECLASS 7.0): | 23370202 |
| (ECLASS 8.0): | 23370202 |
| (ECLASS 9.0): | 23370202 |
| (ECLASS 10.0): | 23370202 |
| (ECLASS 11.0): | 23370202 |
| (ECLASS 12.0): | 23370202 |
| (ECLASS 13.0): | 23370202 |
| Numero de ERP: | 149223 |
| Zolltarifnummer: | 73269098900 |
