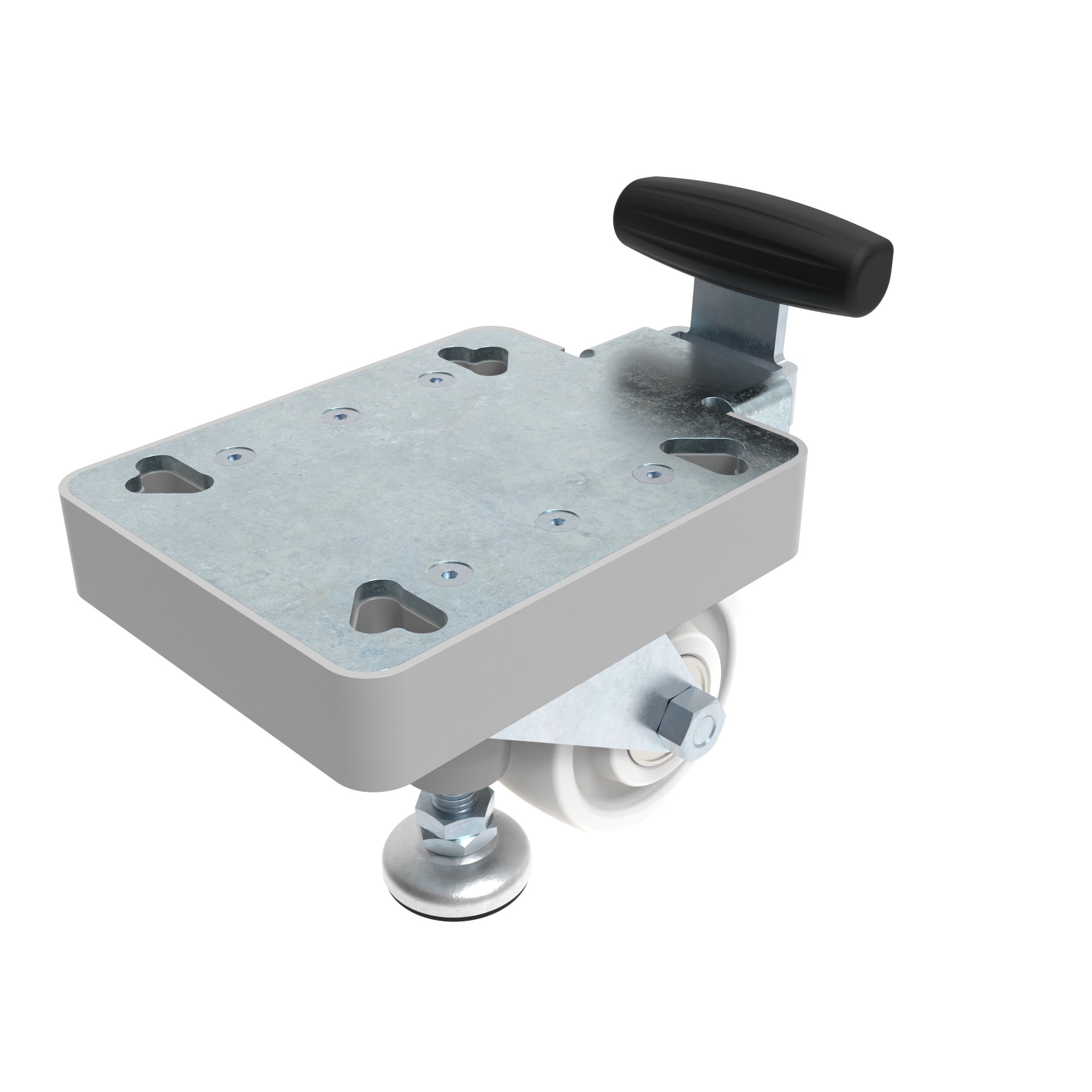

Rueda fija con pata elevadora

Descripción:
Reliable and quiet fixed caster, trackless
With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang
No additional transport and base plate needed;

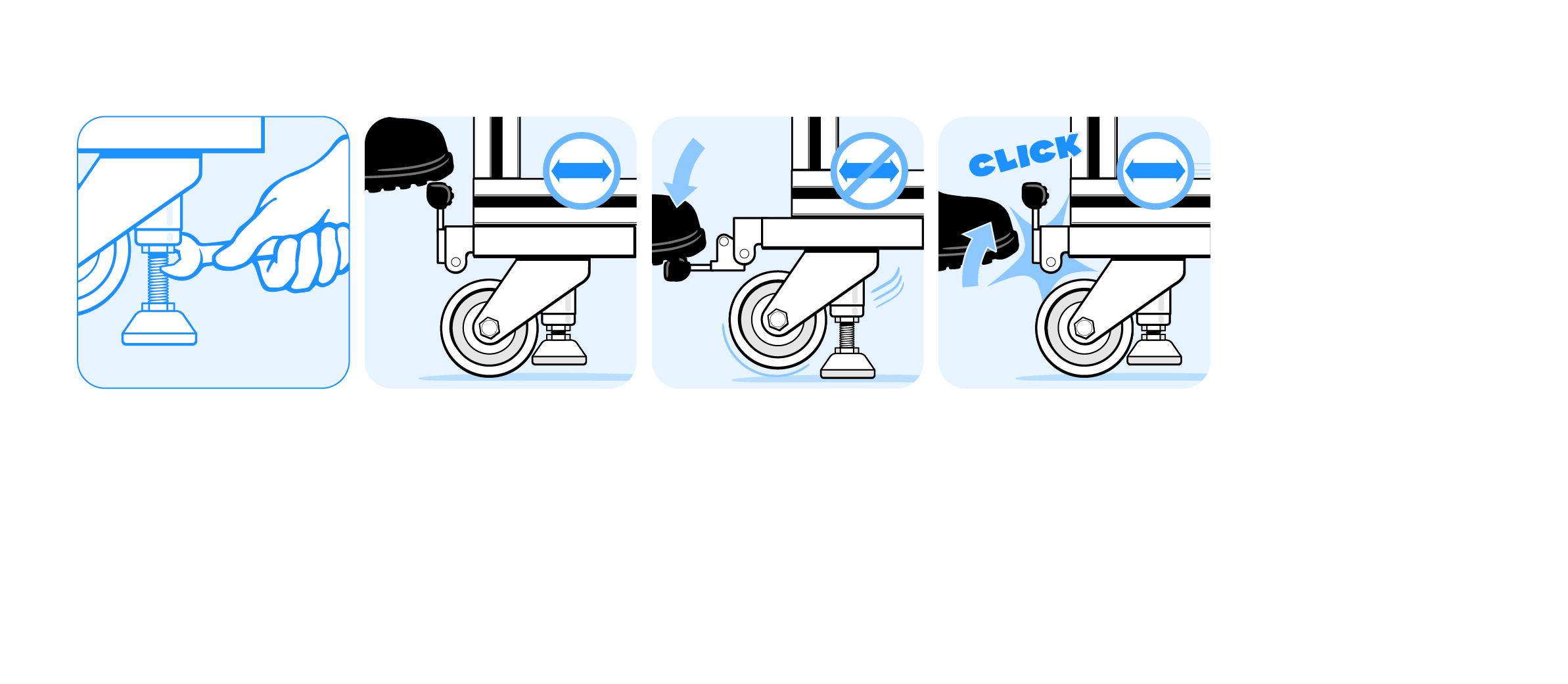

Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housing

Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel

Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated

Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black

Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido

Países de Entrega:
En todo el mundo

Cantidad por paquete:	1 pieza
Model:	With mounting plate
Peso (g):	2172.2
Numero de ERP:	152622

Variantes

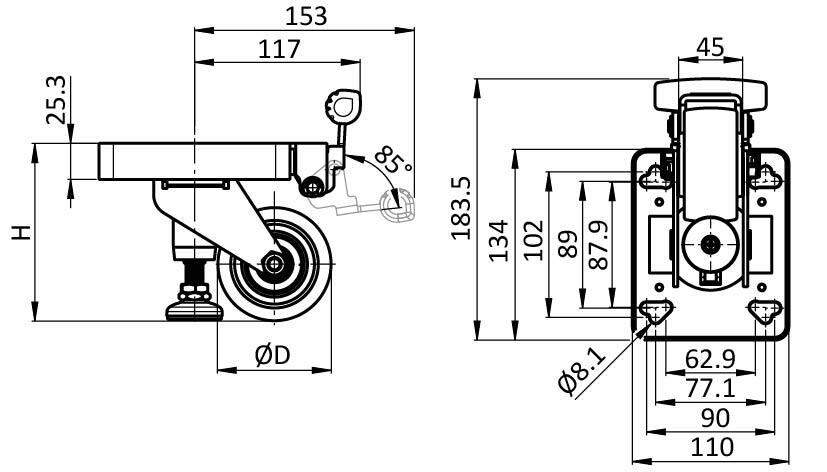

Número de producto	D (mm)	H (mm)	ESD	Carga Máxima (N)	Cuerpo de Rueda	Banda de rotura fija
098FF080AF134110	80	125	-	2500	PA, blanco natural	PA, blanco
098FF080EHF134110	80	125	-	1800	Aluminum die-cast, silver gray	PU, amarillo
098FF080EHF134110-	80	125	ESD	1800	Aluminum die-cast, silver gray	PU, verde
098FF080GF134110	80	125	-	1700	PA, negro	Caucho macizo, negro
098FF080UF134110	80	125	-	1500	PA, gris ≈ RAL 7001	PU, negro
098FF080UF134110-	80	125	ESD	1000	PA, gris ≈ RAL 7001	PU, negro
098FF100AF134110	100	145	-	2500	PA, blanco natural	PA, blanco
098FF100EHF134110	100	145	-	2500	Aluminum die-cast, silver gray	PU, amarillo
098FF100EHF134110-	100	145	ESD	2500	Aluminum die-cast, silver gray	PU, verde
098FF100GF134110	100	145	-	2000	PA, negro	Caucho macizo, negro
098FF100UF134110	100	145	-	2000	PA, gris ≈ RAL 7001	PU, negro
098FF100UF134110-	100	145	ESD	1300	PA, gris ≈ RAL 7001	PU, negro
