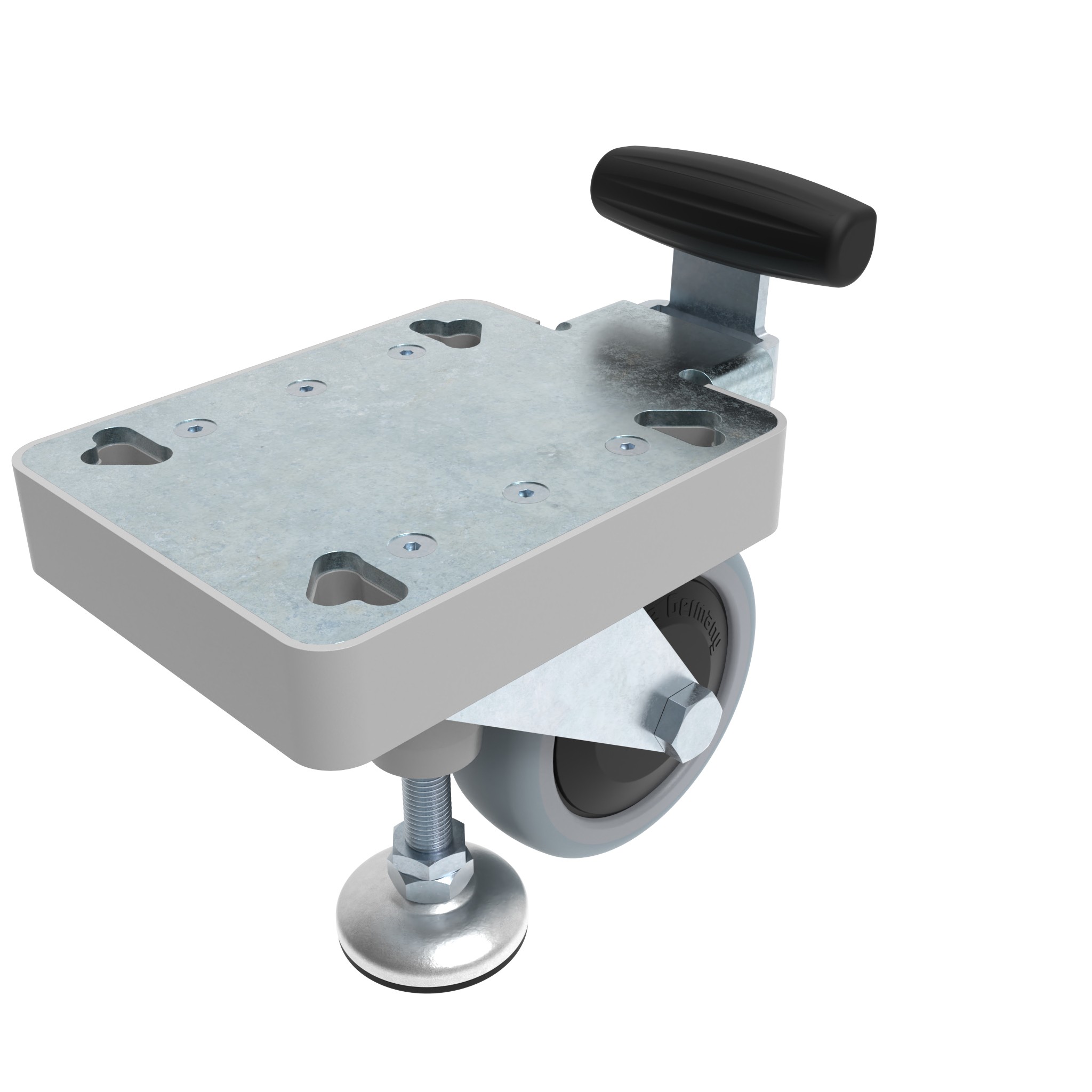

Rueda fija con pata elevadora
Precio normal:
0,00 €
Número de producto:
098FF100UF134110-
Cantidad por Paquete:
1 pieza
Información sobre el producto "Rueda fija con pata elevadora"
Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black
Países de Entrega:
En todo el mundo
Description:
Reliable and quiet fixed caster, trackless
With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang
No additional transport and base plate needed;
Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housing
Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel
Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido
Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black
Países de Entrega:
En todo el mundo
Description:
Reliable and quiet fixed caster, trackless
With ball bearings and thread guard, integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45mm without overhang
No additional transport and base plate needed;
Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the fixed caster housing
Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel
Especiales:
Otros tipos de ruedas, otros colores, otras superficies bajo pedido
Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated
| Cantidad por Paquete: | 1 pieza |
|---|---|
| Model: | With mounting plate |
| Peso (g): | 2216.6 |
| ECLASS 6.0: | 23370202 |
| ECLASS 7.0: | 23370202 |
| ECLASS 8.0: | 23370202 |
| ECLASS 9.0: | 23370202 |
| ECLASS 10.0: | 23370202 |
| ECLASS 11.0: | 23370202 |
| ECLASS 12.0: | 23370202 |
| ECLASS 13.0: | 23370202 |
| Zolltarifnummer: | 73269098900 |
| Número de Arancel Aduanero de Exportación: | 73269098 |
| Numero de ERP: | 152624 |
| Old Part #: | 098FF100UF134110ESD |
