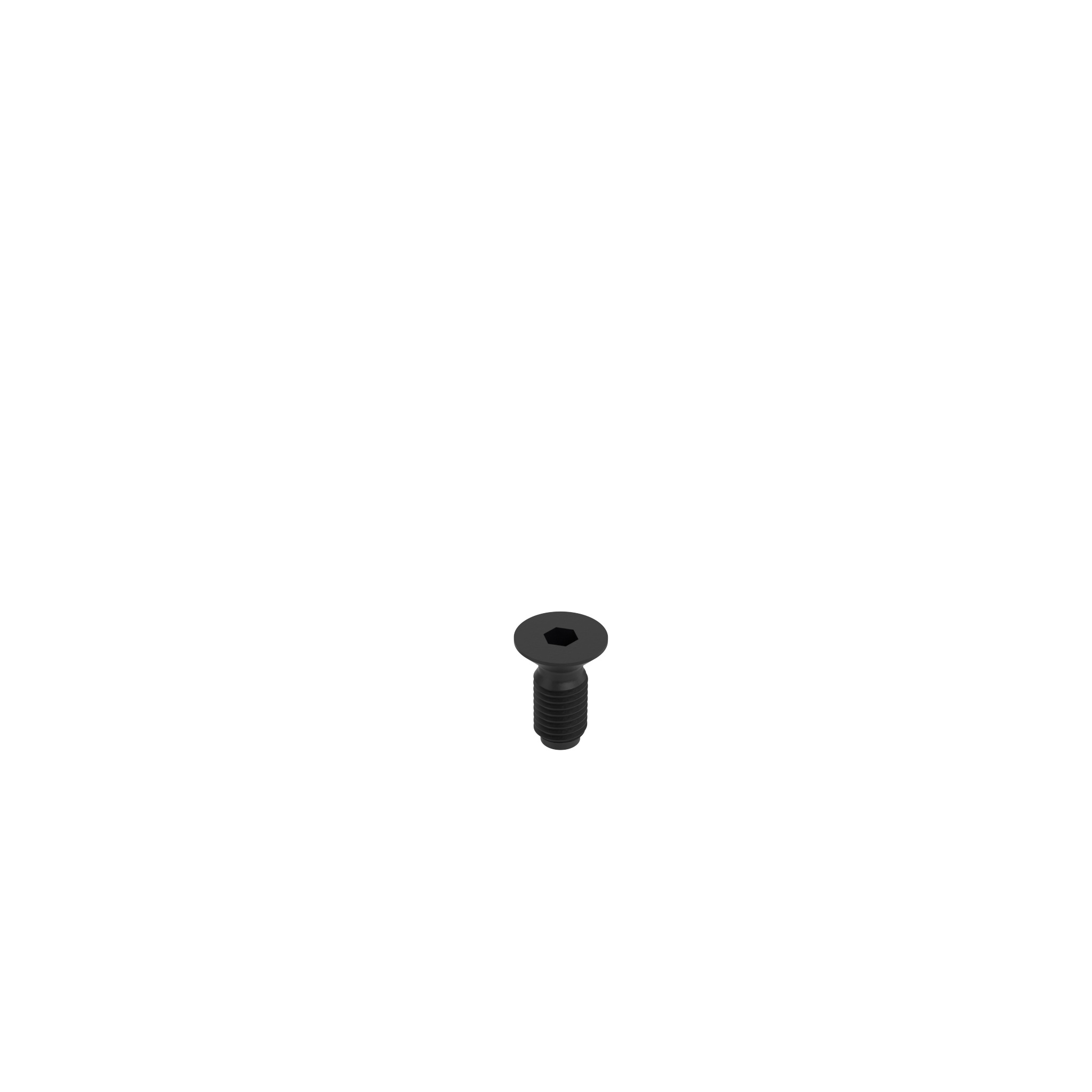

Self Forming Countersunk Screw

Información sobre el producto "Self Forming Countersunk Screw"

Países de Entrega:
En todo el mundo

Description:

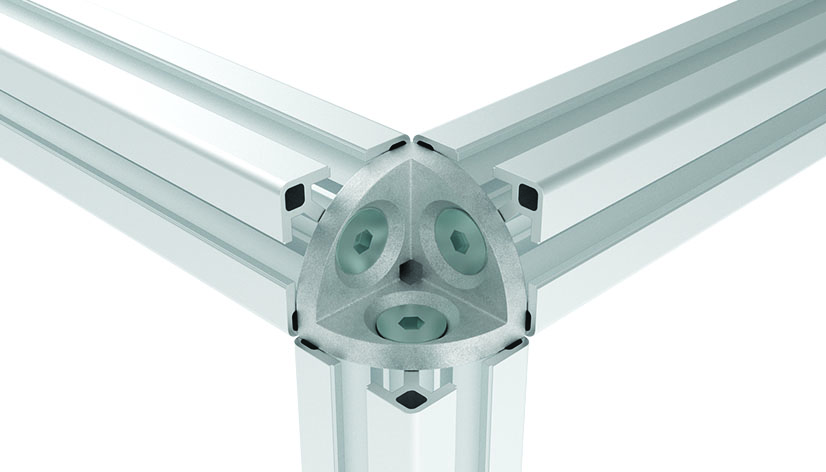

For all mounting applications to the front of the aluminum profile; detachable and reusable; designed for optimized fastening strength

Material:
Acero

Surface:
S7 x 16: Black oxide, wax
S8 x 25: Zinc plated, wax

Tip:
*Compatible Screw-on Cover Cap ZN see 091347
Cantidad por Paquete: 100 piezas
Model: With hexagon socket
Peso (g): 6.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Número de Arancel Aduanero de Exportación: 73181568
Numero de ERP: 132868

Variantes

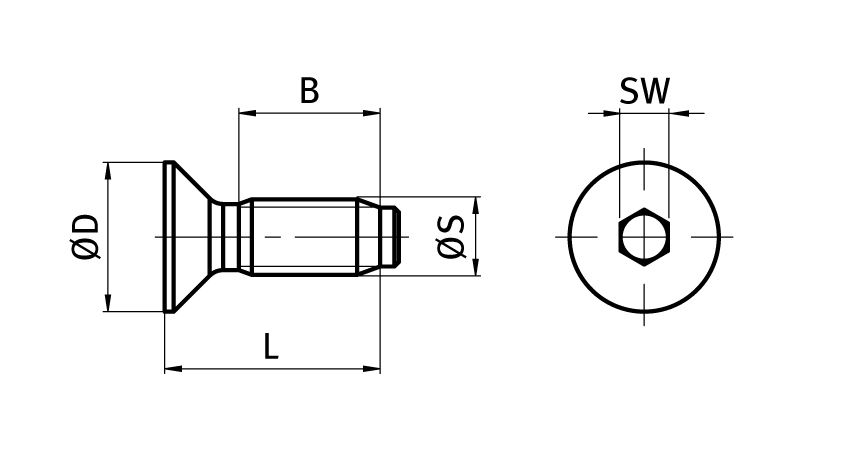

Número de producto D (mm) Version Profile B (mm) Size S x L (mm) SW
093S0716C 12.0 - I 11.0 S7 x 16 4
093S0825C 15.8 Compatible con roscas métricas B 20.0 S8 x 25 5
