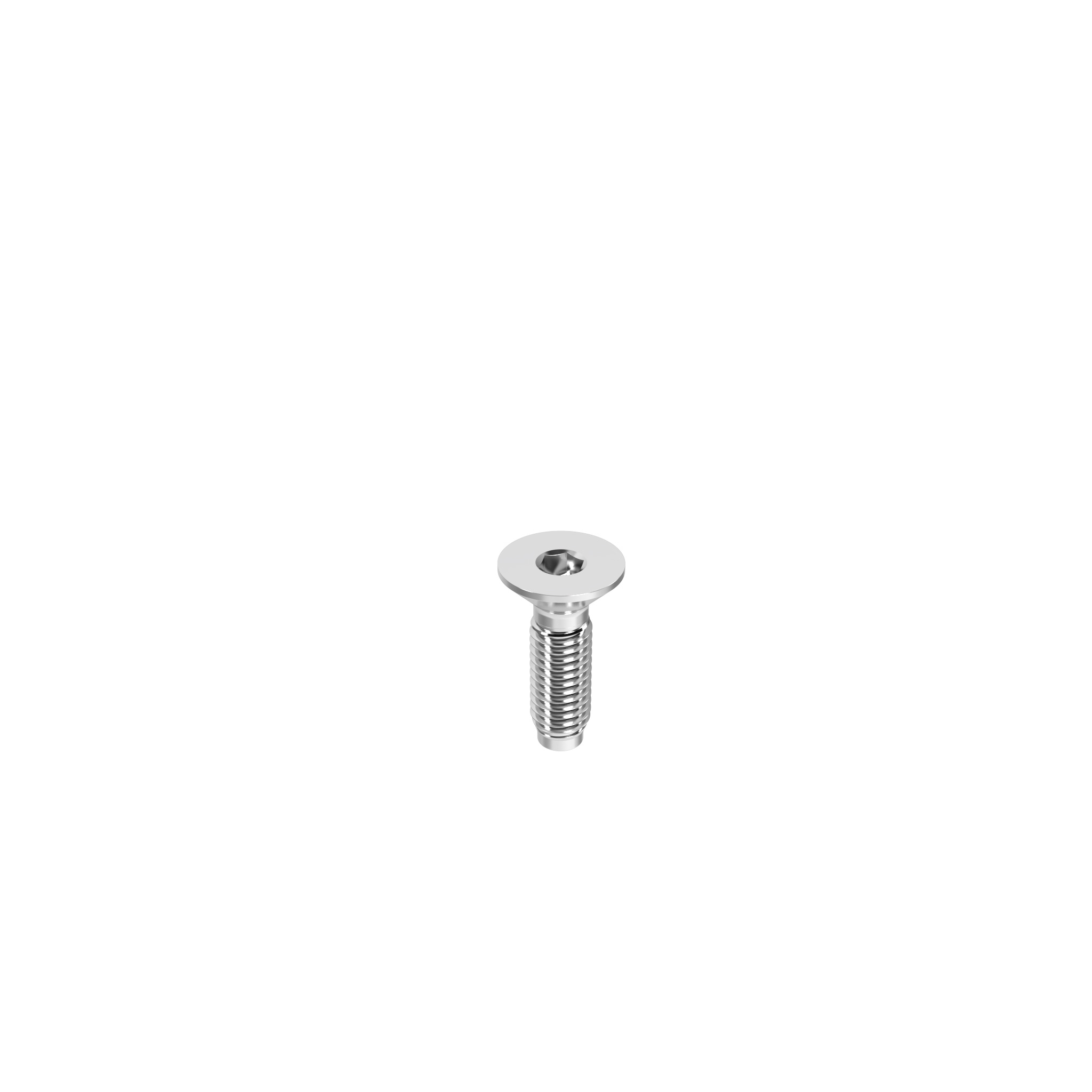

Self Forming Countersunk Screw

Información sobre el producto "Self Forming Countersunk Screw"

Países de Entrega:
En todo el mundo

Description:
For all mounting applications to the front of the aluminum profile; detachable and reusable; designed for optimized fastening strength

Material:
Acero

Surface:
S7 x 16: Black oxide, wax
S8 x 25: Zinc plated, wax

Tip:
* Compatible Screw-on Cover Cap ZN see 091347
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Cantidad por Paquete: 100 piezas
Model: With hexagon socket
Peso (g): 12

Variantes

ID de producto D (mm) Profile Size S x L (mm) Version SW B (mm)
093S0716C 12.0 I S7 x 16 4 11.0
093S0825C 15.8 B S8 x 25 Compatible con roscas métricas 5 20.0
