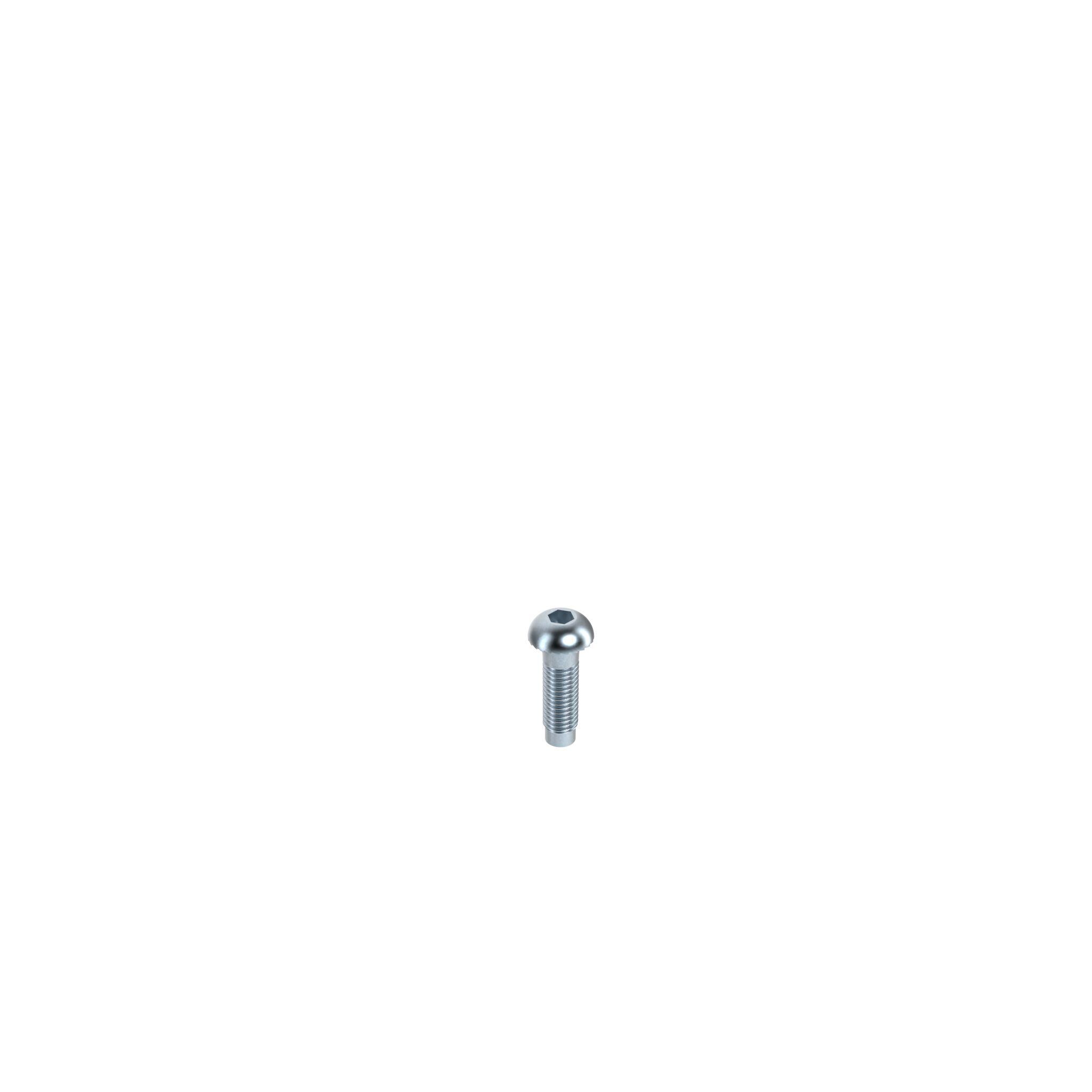

Self Tapping Screw

Información sobre el producto "Self Tapping Screw"

Países de Entrega:
En todo el mundo

Description:

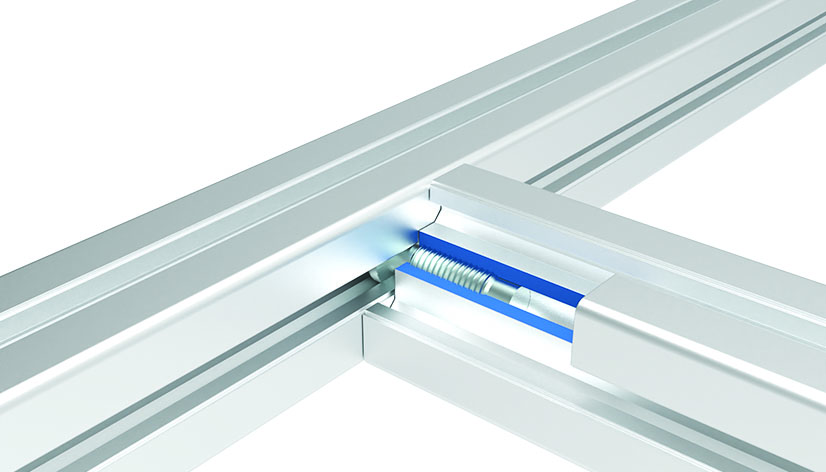

To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achieved

Material:
Acero

Superficie:
Galvanizado
Model: With hexagon socket
Cantidad por Paquete: 100 piezas
Número de Arancel Aduanero de Exportación: 73181499
Peso (g): 1.0
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Numero de ERP: 118538
Zolltarifnummer: 73181499900

Variantes

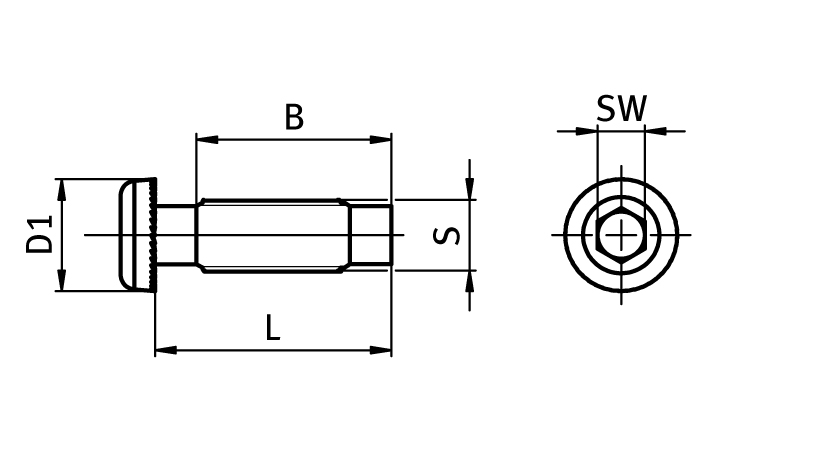

Número de producto B (mm) D1 (mm) Size S x L (mm) SW Profile
093SF0516 10.8 8.5 S5 x 16 3 I
093SF0725 19.5 13.8 S7 x 25 5 I
093SF0740 34.5 13.8 S7 x 40 5 I
093SF1240 26.0 19.0 S12 x 40 8 B
